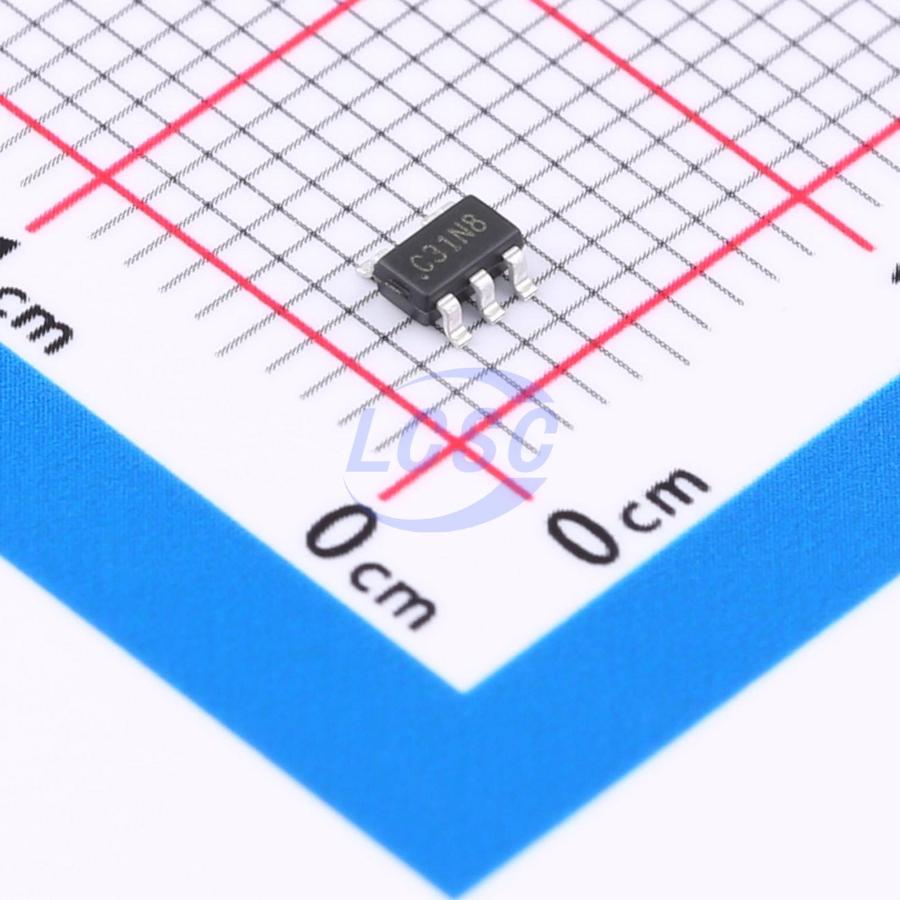

OPA340NA/3K(TOKMAS)
Standard (General Purpose) Amplifier Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5
SOT-23-5ROHS CompliantActive
Low Power, Low Noise, 9MHz, RRIO, CMOS Amplifiers
- Manufacturer
- Tokmas
- Manufacturer part #
- OPA340NA/3K(TOKMAS)
- Store part #
- C48586489
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,850 in stock
#C48586489
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.17 | ₹110.85 |
| 50+ | ₹17.28 | ₹864.00 |
| 150+ | ₹15.17 | ₹2,275.50 |
| 500+ | ₹12.75 | ₹6,375.00 |
| 3,000+ | ₹11.59 | ₹34,770.00 |
| 6,000+ | ₹10.89 | ₹65,340.00 |
5 × ₹22.17
₹110.85
excl. GST
₹130.80 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
OPA340NA/3K(TOKMAS)
₹110.85 for 5 + GST
Specifications
- Output Current
- 70mA
- Vos - Input Offset Voltage
- 700uV
- Slew Rate
- 8.5V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 82dB
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Gain Bandwidth Product
- 9MHz
- Quiescent Current
- 700uA
- Features
- EMI filtering/RF suppression
- Input Voltage Noise Density
- 12nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
Applications
- Motor phase current sensing
- Audio output
- Photodiode amplification
- Battery-powered instruments
- Sensor signal conditioning
Key features
- Wide unity-gain bandwidth: 9 MHz
- High slew rate: 8.5 V/μs
- Fast settling time: 0.3 μs to 0.1%
- Low noise: 12 nV/√Hz at 1 kHz
- Low input offset voltage: ±0.7 mV
- Single-supply voltage range: 2.0 V to 5.5 V
- Rail-to-rail input and output
- Internal RF/EMI filter
- Low supply current: 700 μA per amplifier at 5 V supply
- Extended temperature range: -40°C to +125°C
