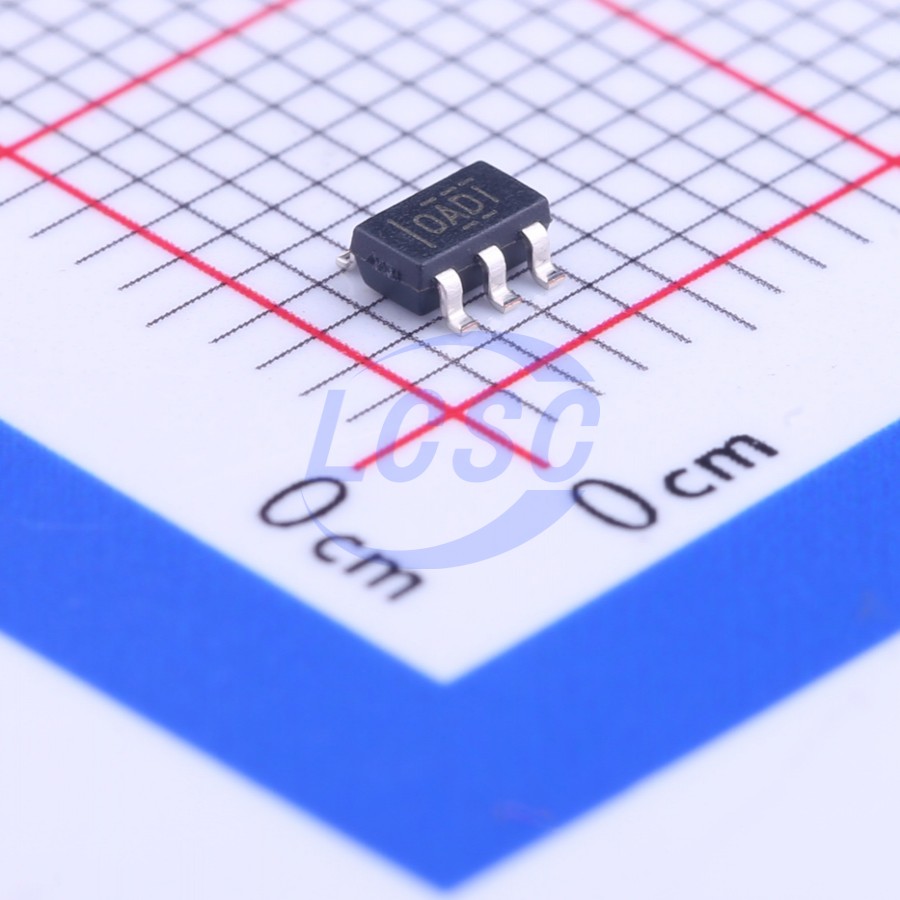

OPA357AIDBVR

100mA 1 2mV 150V/us 80dB 3pA 250MHz 4.9mA Rail-to-Rail Input, Rail-to-Rail Output SOT-23-6 Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-6ROHS CompliantActive

250MHz, Rail-to-Rail I/O, CMOS Operational Amplifier with Shutdown

Manufacturer: TI
Manufacturer part #: OPA357AIDBVR
Store part #: C139385
Package / case: SOT-23-6
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,308 in stock

#C139385

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹294.10	₹294.10
10+	₹255.71	₹2,557.10
30+	₹234.46	₹7,033.80
100+	₹210.60	₹21,060.00
500+	₹200.18	₹1,00,090.00
1,000+	₹195.20	₹1,95,200.00

Quantity (min 1)

1 × ₹294.10

₹294.10

excl. GST

₹347.04 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

OPA357AIDBVR

₹294.10 for 1 + GST

Specifications

Output Current: 100mA
Number of Channels: 1
Vos - Input Offset Voltage: 2mV
Slew Rate: 150V/us
Input Offset Current(Ios): 50pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 80dB
Ib - Input Bias Current: 3pA
Input Offset Voltage Drift(Vos TC): 4uV/℃
Gain Bandwidth Product: 250MHz
Quiescent Current: 4.9mA
Features: Enable/shutdown function
Input Voltage Noise Density: 6.5nV/√Hz@1MHz
Dual Supply: -2.75V~-1.25V;1.25V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.5V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.057 g

Overview

The OPA357 series of high-speed, voltage-feedback CMOS operational amplifiers are designed for video and other applications requiring wide bandwidth. They are unity-gain stable and can drive large output currents. Differential gain is 0.02% and differential phase is 0.09°. Quiescent current is only 4.9mA per channel. The OPA357 series op amps are optimized for operation on single or dual supplies as low as 2.5V (±1.25V) and up to 5.5V (±2.75V). Common-mode input range extends beyond the supplies. The output swing is within 100mV of the rails, supporting wide dynamic range. For applications requiring the full 100mA continuous output current, the single SO-8 PowerPAD version is available. The single version (OPA357), comes in the miniature SOT23-6 and SO-8 PowerPAD packages. The dual version (OPA2357) is offered in the MSOP-10 package. The dual version features completely independent circuitry for lowest crosstalk and freedom from interaction. All are specified over the extended -40°C to +125°C temperature range.

Applications

VIDEO PROCESSING
ULTRASOUND
OPTICAL NETWORKING, TUNABLE LASERS
PHOTODIODE TRANSIMPEDANCE AMPS
ACTIVE FILTERS
HIGH-SPEED INTEGRATORS
ANALOG-TO-DIGITAL (A/D) CONVERTER INPUT BUFFERS
DIGITAL-TO-ANALOG (D/A) CONVERTER OUTPUT AMPLIFIERS
BARCODE SCANNERS
COMMUNICATIONS

Key features

UNITY-GAIN BANDWIDTH: 250MHz
WIDE BANDWIDTH: 100MHz GBW
HIGH SLEW RATE: 150V/μs
LOW NOISE: 6.5nV/√Hz
RAIL-TO-RAIL I/O
HIGH OUTPUT CURRENT: > 100mA
EXCELLENT VIDEO PERFORMANCE: Diff Gain: 0.02%, Diff Phase: 0.09°, 0.1dB Gain Flatness: 40MHz
LOW INPUT BIAS CURRENT: 3pA
QUIESCENT CURRENT: 4.9mA
THERMAL SHUTDOWN
SUPPLY RANGE: 2.5V to 5.5V
SHUTDOWN IΩ < 6μA
MicroSIZE AND PowerPAD PACKAGES
