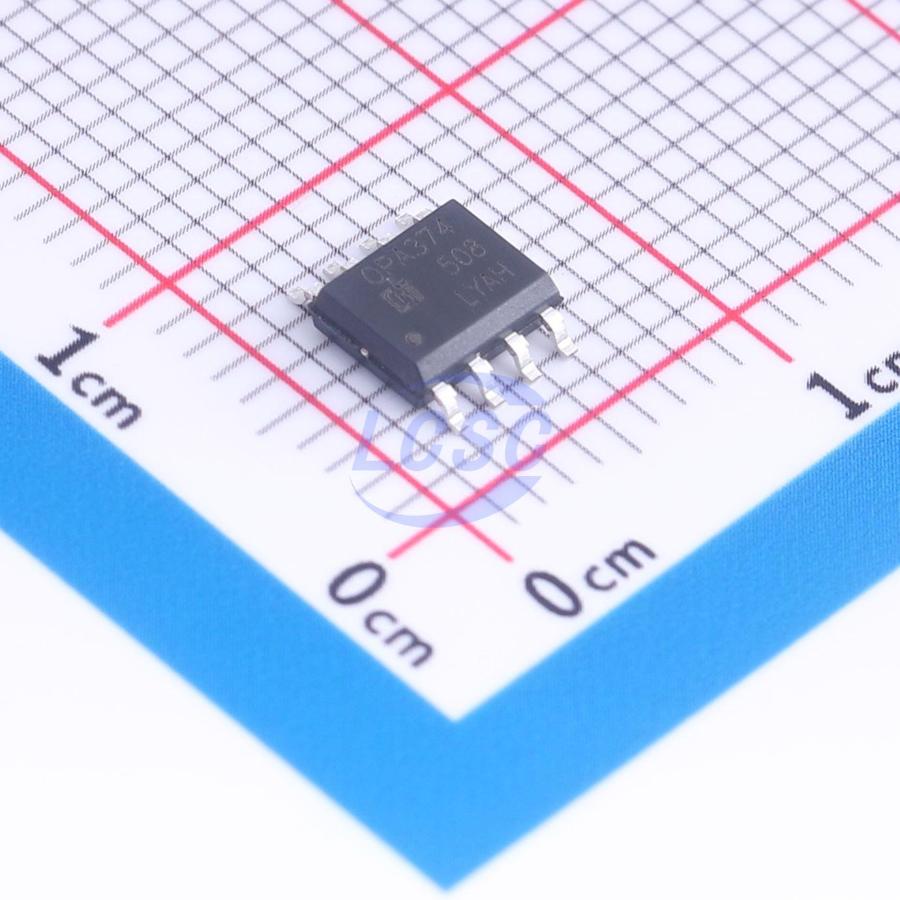

OPA374M/TR
53mA 1 3.5mV 4.2V/us 1pA 90dB 470uA 6MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
6MHz Rail-to-Rail I/O CMOS Operational Amplifier
- Manufacturer
- HGSEMI
- Manufacturer part #
- OPA374M/TR
- Store part #
- C20613266
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,570 in stock
#C20613266
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹50.96 | ₹254.80 |
| 50+ | ₹40.11 | ₹2,005.50 |
| 150+ | ₹35.35 | ₹5,302.50 |
| 500+ | ₹29.49 | ₹14,745.00 |
| 2,500+ | ₹26.90 | ₹67,250.00 |
| 5,000+ | ₹25.38 | ₹1,26,900.00 |
5 × ₹50.96
₹254.80
excl. GST
₹300.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
OPA374M/TR
₹254.80 for 5 + GST
Specifications
- Output Current
- 53mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 3.5mV
- Slew Rate
- 4.2V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Input Offset Voltage Drift(Vos TC)
- 2.4uV/℃
- Quiescent Current
- 470uA
- Gain Bandwidth Product
- 6MHz
- Input Voltage Noise Density
- 13nV/√Hz@1kHz
- Dual Supply
- -2.75V~-1.05V;1.05V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.125 g
