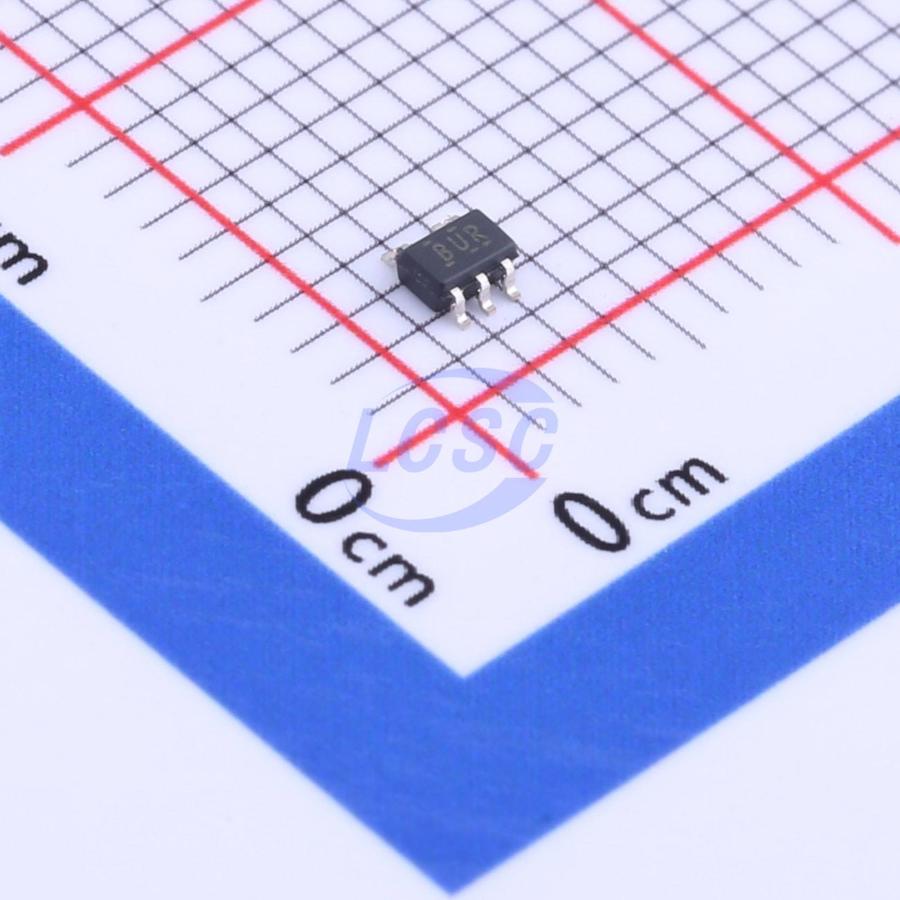

OPA376AIDCKR

30mA 1 5uV 2V/us 90dB 0.2pA 760uA 5.5MHz Rail-to-Rail Input, Rail-to-Rail Output SC-70-5 Instrumentation, Op Amps, Buffer Amps RoHS

SC-70-5ROHS3 CompliantActive

OPAx376 Low-Noise, Low Quiescent Current, Precision Operational Amplifier

Manufacturer: TI
Manufacturer part #: OPA376AIDCKR
Store part #: C2057475
Package / case: SC-70-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,903 in stock

#C2057475

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹179.05	₹179.05
10+	₹144.95	₹1,449.50
30+	₹126.25	₹3,787.50
100+	₹104.97	₹10,497.00
500+	₹95.61	₹47,805.00
1,000+	₹91.27	₹91,270.00

Quantity (min 1)

1 × ₹179.05

₹179.05

excl. GST

₹211.28 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

OPA376AIDCKR

₹179.05 for 1 + GST

Specifications

Output Current: 30mA
Number of Channels: 1
Vos - Input Offset Voltage: 5uV
Slew Rate: 2V/us
Input Offset Current(Ios): 0.2pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 90dB
Ib - Input Bias Current: 0.2pA
Input Offset Voltage Drift(Vos TC): 260nV/℃
Quiescent Current: 760uA
Gain Bandwidth Product: 5.5MHz
Features: ESD protection;Reverse-phase input protection
Input Voltage Noise Density: 7.5nV/√Hz@1kHz
Dual Supply: -2.75V~-1.1V;1.1V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.2V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.2 g

Overview

The OPA376 family represents a new generation of low-noise operational amplifiers with e-trim™, offering outstanding dc precision and ac performance. Rail-to-rail input and output, low offset (25 μV, maximum), low noise (7.5 nV/√Hz), quiescent current of 950 μA (maximum), and a 5.5-MHz bandwidth make this part very attractive for a variety of precision and portable applications. In addition, this device has a reasonably wide supply range with excellent PSRR, making it attractive for applications that run directly from batteries without regulation. The OPA376 (single version) is available in MicroSIZE SC70-5, SOT-23-5, and SOIC-8 packages. The OPA2376 (dual) is offered in the DSBGA-8, VSSOP-8, and SOIC-8 packages. The OPA4376 (quad) is offered in a TSSOP-14 package. All versions are specified for operation from -40°C to +125°C.

Applications

ADC Buffer
Audio Equipment
Medical Instrumentation
Handheld Test Equipment
Active Filtering Sensor Signal Conditioning

Key features

Low Noise: 7.5 nV/√Hz at 1 kHz
0.1 Hz to 10 Hz Noise: 0.8 μVPP
Quiescent Current: 760 μA (typical)
Low Offset Voltage: 5 μV (typ)
Gain Bandwidth Product: 5.5 MHz
Rail-to-Rail Input and Output
Single-Supply Operation Supply Voltage: 2.2 V to 5.5 V
Space-Saving Packages: SC70, SOT-23, DSBGA, VSSOP, TSSOP

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
OPA376AIDCKT#C2864203TI · SC-70-5	TI	SC-70-5	81	₹159.58 · 81 in stock	View
MCP6V86UT-E/LTY#C4371096MICROCHIP · SC-70-5	MICROCHIP	SC-70-5	On request	Price on request	Quote
MCP6V81UT-E/LTY#C625588MICROCHIP · SC-70-5	MICROCHIP	SC-70-5	On request	Price on request	Quote
