HGSEMIDatasheet (PDF)

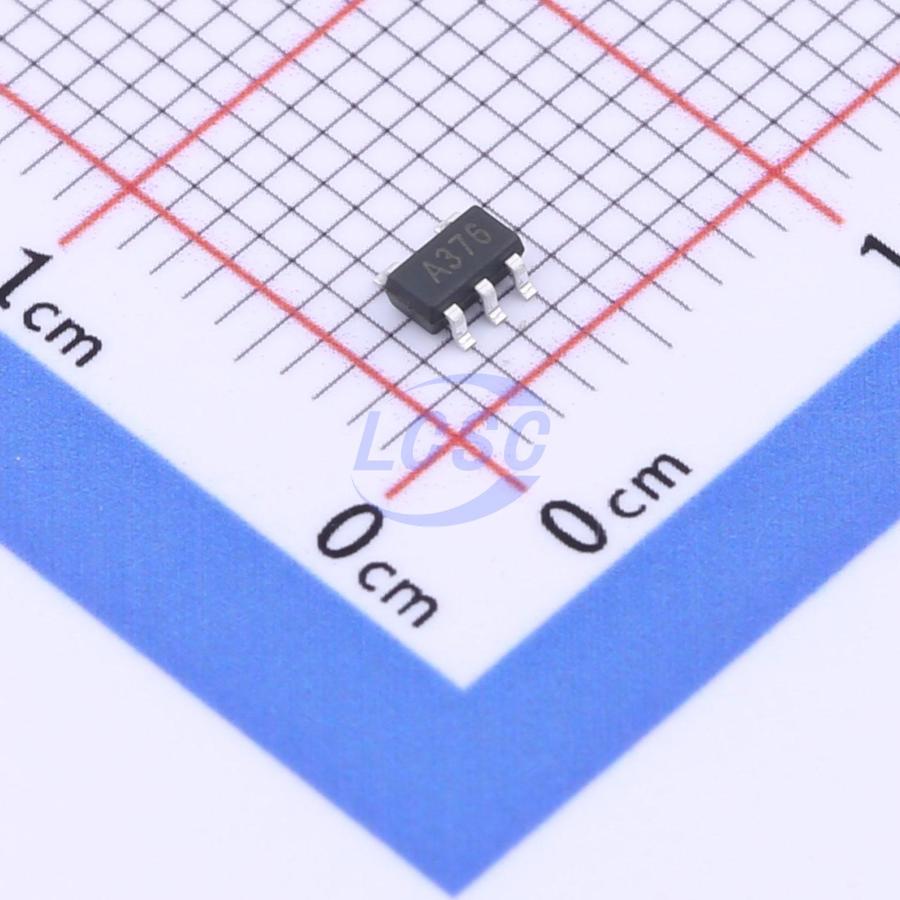

OPA376M5/TR
30mA 30uV 2.5V/us 20pA 110dB 550uA 4.5MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps
SOT-23-5RoHSActive
Single-supply, micropower, zero-drift CMOS operational amplifier
- Manufacturer
- HGSEMI
- Manufacturer part #
- OPA376M5/TR
- Store part #
- C2902514
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,135 in stock
#C2902514
Stock & price checked 18 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.79 | ₹193.95 |
| 50+ | ₹34.24 | ₹1,712.00 |
| 150+ | ₹32.29 | ₹4,843.50 |
| 500+ | ₹27.10 | ₹13,550.00 |
| 3,000+ | ₹26.01 | ₹78,030.00 |
| 6,000+ | ₹25.36 | ₹1,52,160.00 |
5 × ₹38.79
₹193.95
excl. GST
₹228.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
OPA376M5/TR
₹193.95 for 5 + GST
Specifications
- Output Current
- 30mA
- Vos - Input Offset Voltage
- 30uV
- Slew Rate
- 2.5V/us
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -45℃~+125℃
- Ib - Input Bias Current
- 20pA
- Common Mode Rejection Ratio(CMRR)
- 110dB
- Input Offset Voltage Drift(Vos TC)
- 10nV/℃
- Quiescent Current
- 550uA
- Gain Bandwidth Product
- 4.5MHz
- Features
- EMI filtering/RF suppression;Zero drift / auto-zero
- Input Voltage Noise Density
- 30nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Dual Supply
- -2.75V~-900mV;900mV~2.75V
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
