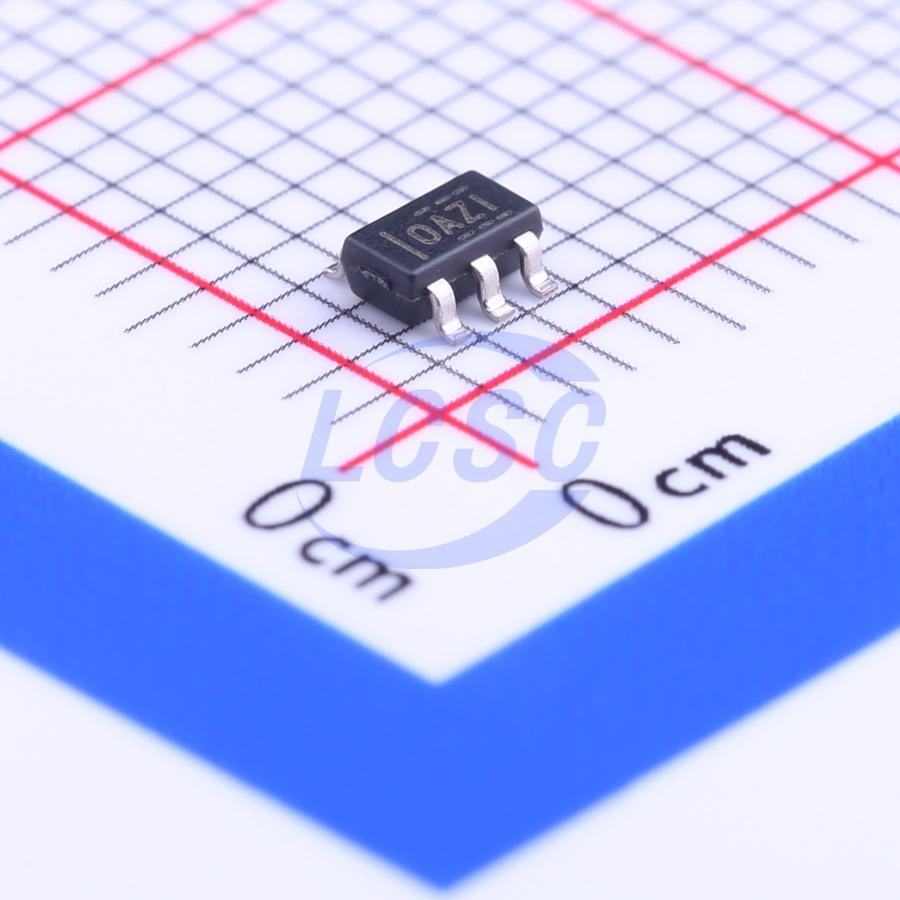

OPA378AIDBVR

The OPA378 and OPA2378 represent a new generation of Zerø-Drift, microPOWER™ operational amplifiers that use a proprietary auto-calibration technique to provide minimal input offset voltage (20μν) and offset voltage drift (0.1 μV/°C). The combination of low input voltage noise, high gain bandwidth (900kHz), and low power (150μA max) enable these devices to achieve optimum performance for low-power precision applications. In addition, the excellent PSRR performance, coupled with a wide input supply range of 2.2V to 5.5V and rail-to-rail input and output, makes it an outstanding choice for single-supply applications that run directly from batteries without regulation. The OPA378 (single version) is available in both a microSIZE SC70-5 and a SOT23-5 package. The OPA2378 (dual version) is offered in a SOT23-8 package. All versions are specified for operation from -40°C to +125°C.

Applications

• PORTABLE MEDICAL DEVICES
• GLUCOSE METERS
• OXYGEN METERING
• HEART RATE MONITORS
• WEIGH SCALES
• BATTERY-POWERED INSTRUMENTS
• THERMOPILE MODULES
• HANDHELD TEST EQUIPMENT
• SENSOR SIGNAL CONDITIONING

Key features

• LOW NOISE – 0.4μνPP, 0.1Hz to 10Hz – 20nV/√Hz at 1kHz
• ZERØ-DRIFT SERIES – LOW OFFSET VOLTAGE: 20μv
• LOW OFFSET DRIFT: 0.1 μV/°C
• QUIESCENT CURRENT: 125μμ
• GAIN BANDWIDTH: 900kHz
• RAIL-TO-RAIL INPUT/OUTPUT
• EMI FILTERING
• SUPPLY VOLTAGE: 2.2V to 5.5V
• microSIZE PACKAGES: SC70 and SOT23
