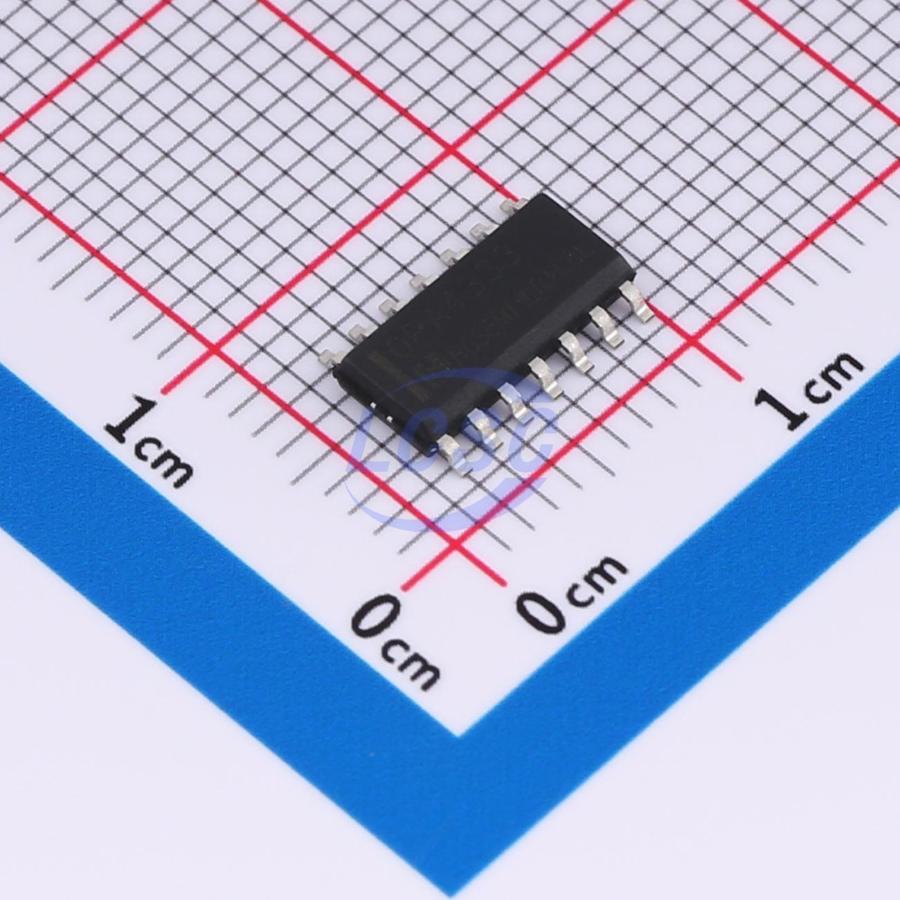

OPA4333M/TR
5mA Four channels 2uV 0.16V/us 70pA 115dB 17uA 350kHz Rail-to-Rail Input, Rail-to-Rail Output SOP-14L Instrumentation, Op Amps, Buffer Amps
SOP-14LRoHSActive
Low Offset Voltage, Low Noise, Low Power CMOS Operational Amplifiers
- Manufacturer
- HGSEMI
- Manufacturer part #
- OPA4333M/TR
- Store part #
- C3007940
- Package / case
- SOP-14L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,091 in stock
#C3007940
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹104.66 | ₹104.66 |
| 10+ | ₹84.43 | ₹844.30 |
| 30+ | ₹74.21 | ₹2,226.30 |
| 100+ | ₹63.98 | ₹6,398.00 |
| 500+ | ₹58.11 | ₹29,055.00 |
| 1,000+ | ₹54.84 | ₹54,840.00 |
1 × ₹104.66
₹104.66
excl. GST
₹123.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
OPA4333M/TR
₹104.66 for 1 + GST
Specifications
- Output Current
- 5mA
- Number of Channels
- Four channels
- Vos - Input Offset Voltage
- 2uV
- Slew Rate
- 0.16V/us
- Input Offset Current(Ios)
- 140pA
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 70pA
- Common Mode Rejection Ratio(CMRR)
- 115dB
- Input Offset Voltage Drift(Vos TC)
- 20nV/℃
- Quiescent Current
- 17uA
- Gain Bandwidth Product
- 350kHz
- Features
- EMI filtering/RF suppression;Zero drift / auto-zero;Built-in compensation;Reverse-phase input protection
- Input Voltage Noise Density
- 55nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.324 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HGA4333M/TR#C3007936HGSEMI · SOP-14 | HGSEMI | SOP-14 | 2,423 | ₹96.01 · 2,423 in stock | View |
