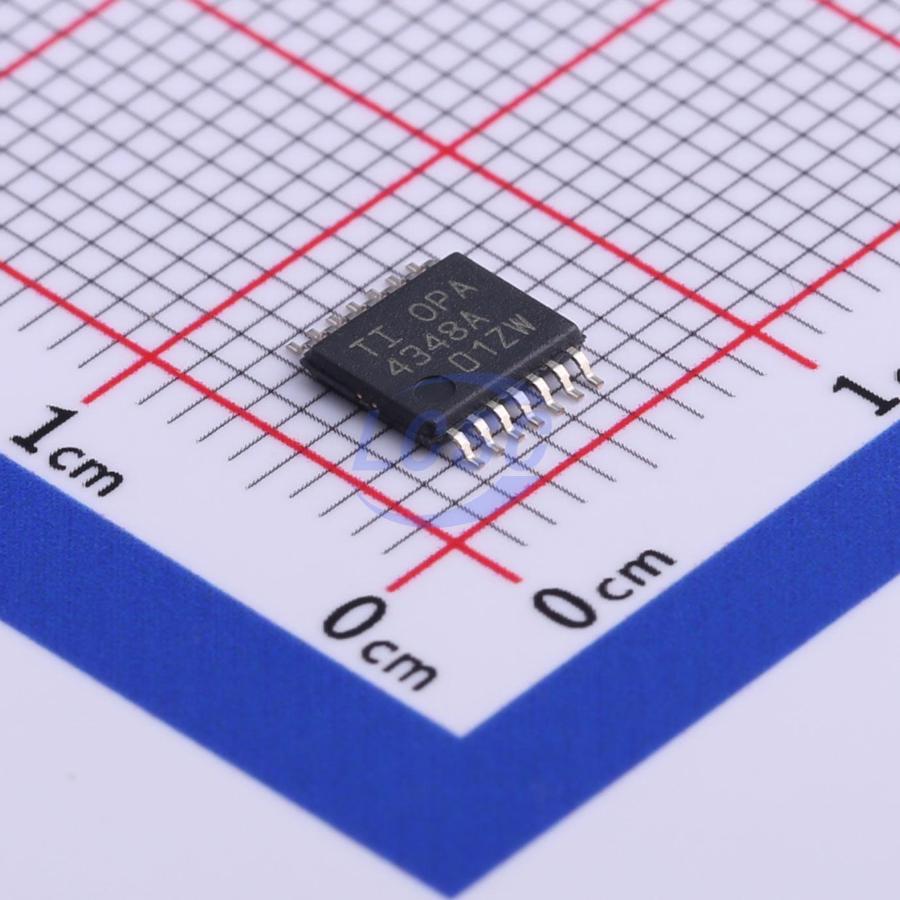

OPA4348AIPWR

10mA 4 5mV 500V/ms 82dB 10pA 45uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output TSSOP-14 Instrumentation, Op Amps, Buffer Amps RoHS

TSSOP-14ROHS3 CompliantActive

1MHz, CMOS rail-to-rail operational amplifier

Manufacturer: TI
Manufacturer part #: OPA4348AIPWR
Store part #: C529292
Package / case: TSSOP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,142 in stock

#C529292

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹124.68	₹124.68
10+	₹97.57	₹975.70
30+	₹84.13	₹2,523.90
100+	₹70.69	₹7,069.00
500+	₹62.67	₹31,335.00
1,000+	₹58.54	₹58,540.00

Quantity (min 1)

1 × ₹124.68

₹124.68

excl. GST

₹147.12 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

OPA4348AIPWR

₹124.68 for 1 + GST

Specifications

Output Current: 10mA
Number of Channels: 4
Vos - Input Offset Voltage: 5mV
Slew Rate: 500V/ms
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 82dB
Ib - Input Bias Current: 10pA
Input Offset Voltage Drift(Vos TC): 6uV/℃
Quiescent Current: 45uA
Gain Bandwidth Product: 1MHz
Features: Built-in compensation;EMI filtering/RF suppression
Input Voltage Noise Density: 35nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.232 g

Overview

The OPAx348 series amplifiers are single-supply, low-power CMOS operational amplifiers. The OPAx348 series features an extended bandwidth of 1MHz and a supply current of 45μA, making it suitable for low-power applications powered by a single supply voltage ranging from 2.1V to 5.5V. With a low supply current of 45μA and an input bias current of 0.5pA, the OPAx348 series is an ideal choice for low-power applications such as smoke detectors and other high-impedance sensors. The OPA348 is available in small 5-pin SC70 (SOT), 5-pin SOT-23 (SOT), and 8-pin SO (SOIC) packages. The OPA2348 comes in 8-pin SOT-23 (SOT) and 8-pin SO (SOIC) packages, while the OPA4348 is offered in space-saving 14-pin TSSOP and 14-pin SO (SOIC) packages. An extended temperature range of -40°C to +125°C across the entire supply voltage range provides design flexibility.

Applications

Portable devices
Battery-powered devices
Smoke alarms
Carbon monoxide (CO) detectors
Medical instruments

Key features

Low IQ: 45μA (typical)
Rail-to-rail input and output
Single supply: 2.1V to 5.5V
Input bias current: 0.5pA
Miniature packages:
5-pin SC70
8-pin SOT-23
14-pin TSSOP
Excellent bandwidth-to-power trade-off
Channel count:
OPA348: 1
OPA2348: 2
OPA4348: 4
