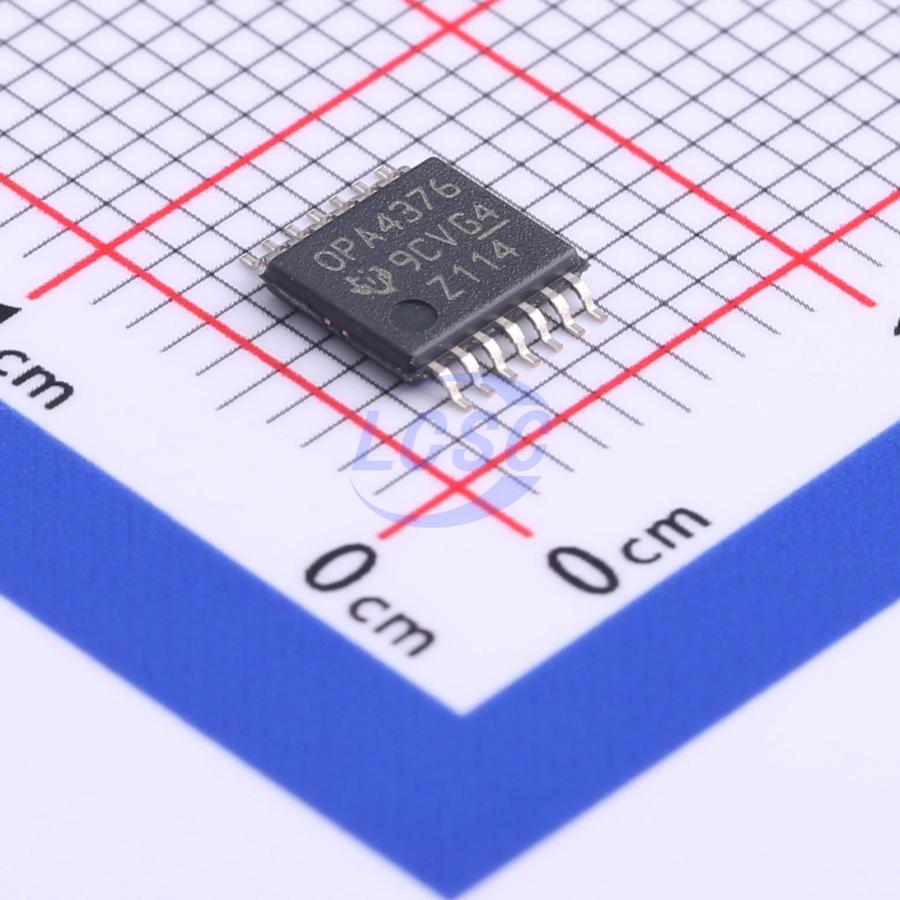

OPA4376AIPWR

30mA Four channels 5uV 2V/us 90dB 0.2pA 760uA 5.5MHz Rail-to-Rail Input, Rail-to-Rail Output TSSOP-14 Instrumentation, Op Amps, Buffer Amps RoHS

TSSOP-14ROHS3 CompliantActive

OPAx376 Low-Noise, Low Quiescent Current, Precision Operational Amplifier

Manufacturer: TI
Manufacturer part #: OPA4376AIPWR
Store part #: C529552
Package / case: TSSOP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

7,269 in stock

#C529552

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹323.13	₹323.13
10+	₹272.90	₹2,729.00
30+	₹241.58	₹7,247.40
100+	₹195.71	₹19,571.00
500+	₹181.13	₹90,565.00
1,000+	₹174.83	₹1,74,830.00

Quantity (min 1)

1 × ₹323.13

₹323.13

excl. GST

₹381.29 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

OPA4376AIPWR

₹323.13 for 1 + GST

Specifications

Output Current: 30mA
Number of Channels: Four channels
Vos - Input Offset Voltage: 5uV
Slew Rate: 2V/us
Input Offset Current(Ios): 0.2pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 90dB
Ib - Input Bias Current: 0.2pA
Input Offset Voltage Drift(Vos TC): 260nV/℃
Quiescent Current: 760uA
Gain Bandwidth Product: 5.5MHz
Features: ESD protection;Overvoltage protection
Input Voltage Noise Density: 7.5nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.2V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.108 g

Overview

The OPA376 family represents a new generation of low-noise operational amplifiers with e-trim™, offering outstanding dc precision and ac performance. Rail-to-rail input and output, low offset (25 μV, maximum), low noise (7.5 nV/√Hz), quiescent current of 950 μA (maximum), and a 5.5-MHz bandwidth make this part very attractive for a variety of precision and portable applications. In addition, this device has a reasonably wide supply range with excellent PSRR, making it attractive for applications that run directly from batteries without regulation. The OPA376 (single version) is available in MicroSIZE SC70-5, SOT-23-5, and SOIC-8 packages. The OPA2376 (dual) is offered in the DSBGA-8, VSSOP-8, and SOIC-8 packages. The OPA4376 (quad) is offered in a TSSOP-14 package. All versions are specified for operation from -40°C to +125°C.

Applications

ADC Buffer
Audio Equipment
Medical Instrumentation
Handheld Test Equipment
Active Filtering Sensor Signal Conditioning

Key features

Low Noise: 7.5 nV/√Hz at 1 kHz
0.1 Hz to 10 Hz Noise: 0.8 μVPP
Quiescent Current: 760 μA (typical)
Low Offset Voltage: 5 μV (typ)
Gain Bandwidth Product: 5.5 MHz
Rail-to-Rail Input and Output
Single-Supply Operation Supply Voltage: 2.2 V to 5.5 V
Space-Saving Packages: SC70, SOT-23, DSBGA, VSSOP, TSSOP

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
OPA4376AIPW#C1346521TI · TSSOP-14	TI	TSSOP-14	48	₹396.13 · 48 in stock	View
RS8559XQ#C255428RUNIC · TSSOP-14	RUNIC	TSSOP-14	3,102	₹153.51 · 3,102 in stock	View
COS4388TRA#C53436147COSINE · TSSOP-14	COSINE	TSSOP-14	443	₹127.71 · 443 in stock	View
COS4388TRB#C53436148COSINE · TSSOP-14	COSINE	TSSOP-14	398	₹122.72 · 398 in stock	View
COS4388TRC#C53436149COSINE · TSSOP-14	COSINE	TSSOP-14	53	₹98.22 · 53 in stock	View
