analogysemiDatasheet (PDF)

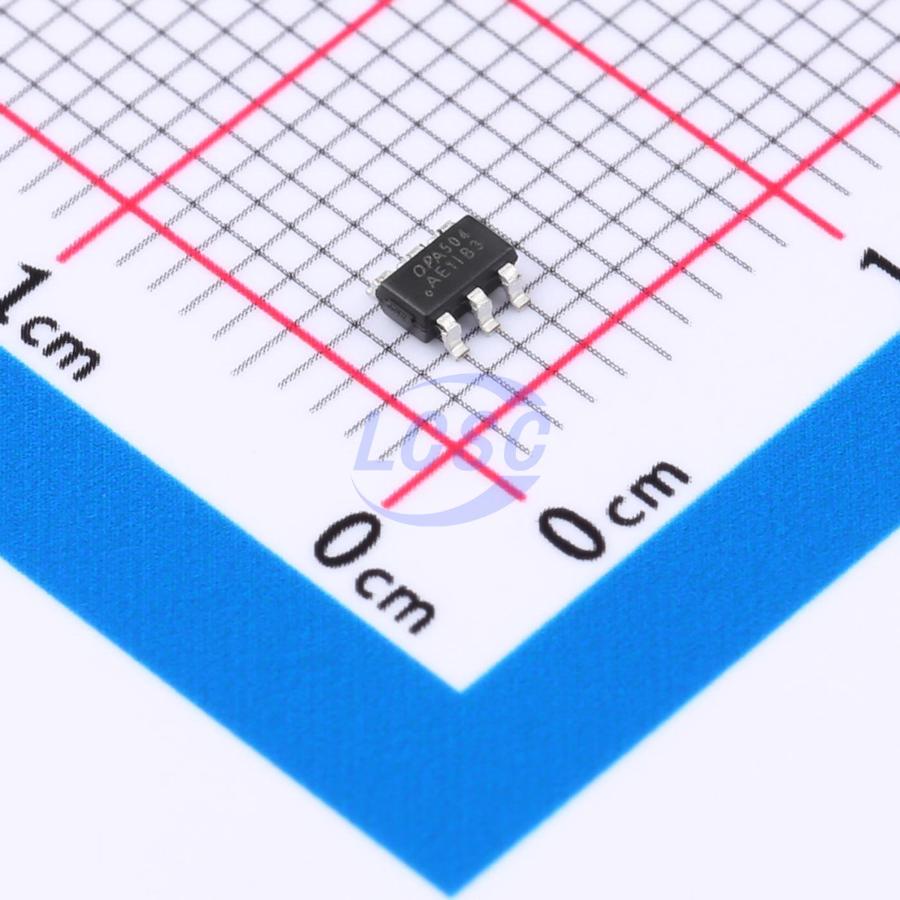

OPA504ASOT236
10mA 1 210uV 6V/ms 0.1pA 94dB 570nA 11kHz Rail-to-Rail Input, Rail-to-Rail Output SOT23-6 Instrumentation, Op Amps, Buffer Amps
SOT23-6RoHSActive
High-Precision, Ultra-Low-Power Operational Amplifiers
- Manufacturer
- analogysemi
- Manufacturer part #
- OPA504ASOT236
- Store part #
- C5349830
- Package / case
- SOT23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,425 in stock
#C5349830
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.39 | ₹136.95 |
| 50+ | ₹23.88 | ₹1,194.00 |
| 150+ | ₹22.39 | ₹3,358.50 |
| 500+ | ₹20.51 | ₹10,255.00 |
| 3,000+ | ₹19.67 | ₹59,010.00 |
| 6,000+ | ₹19.18 | ₹1,15,080.00 |
5 × ₹27.39
₹136.95
excl. GST
₹161.60 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
OPA504ASOT236
₹136.95 for 5 + GST
Specifications
- Output Current
- 10mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 210uV
- Slew Rate
- 6V/ms
- Input Offset Current(Ios)
- 0.1pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 0.1pA
- Common Mode Rejection Ratio(CMRR)
- 94dB
- Input Offset Voltage Drift(Vos TC)
- 1.2uV/℃
- Quiescent Current
- 570nA
- Gain Bandwidth Product
- 11kHz
- Features
- Enable/shutdown function;EMI filtering/RF suppression;Built-in compensation
- Input Voltage Noise Density
- 214nV/√Hz@100Hz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.6V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.027 g
Overview
The OPA503/4 is an ultra-low-power family operational amplifier. With just 570nA of quiescent current and operating voltage ranged between 1.6V and 5.5V, it is applicable to most battery-powered circumstances and stable even without additional boost topology. Keeping low power consumption and 11kHz of bandwidth, it works well with equipment such as CO detectors, smoke detectors, and PIR motion detectors. It has CMOS input stages with typically femto-amp bias currents. EMI protection is incorporated into the design to enhance overall system reliability by reducing system sensitivity to undesirable RF signals. The EN pin can be used in low power application to save power. It is offered in the SOT23-5 and SOT23-6 package respectively, and all versions are specified from -40°C to 125°C, suitable for various rugged environment.
Applications
- CO and O₂ gas detectors
- PIR motion detectors
- Ionization smoke alarms
- Thermostats
- IoT remote sensors
- Active RFID readers and tags
- Portable medical equipment
- Monitor and alarms
- Wearable devices
Key features
- Nanopower supply current: 570nA/channel
- Offset voltage: 210μV (max)
- TcVos: 1.2μV/°C
- Unity gain-bandwidth: 11kHz
- Wide supply range: 1.6V to 5.5V
- Low input bias current: 0.1pA
- Unity-gain stable
- Rail-to-rail input and output
- EMI protection
- Shut-down
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | OPA506ASOT236#C5359428analogysemi · SOT23-6 | analogysemi | SOT23-6 | 215 | ₹39.44 · 215 in stock | View |
 | OPZ504ASOT236#C5359441analogysemi · SOT23-6 | analogysemi | SOT23-6 | 90 | ₹59.24 · 90 in stock | View |
