TIDatasheet (PDF)

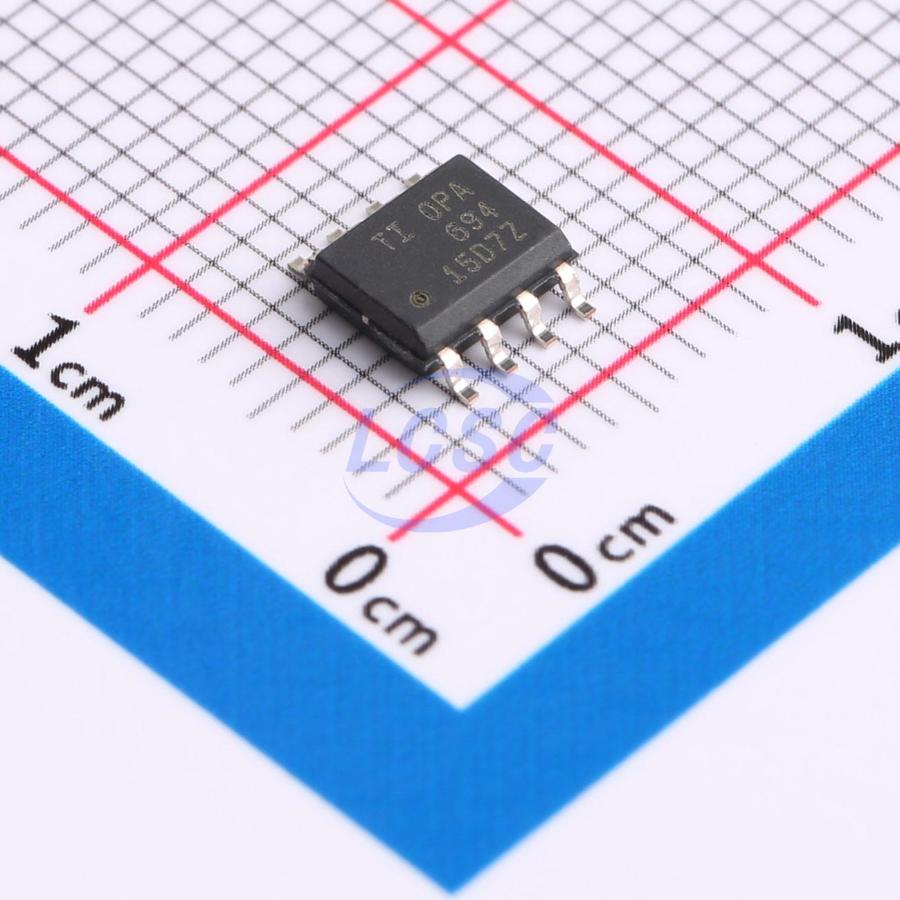

OPA694IDR
80mA 1 4.1mV 1.7V/ns 51dB 150uA 5.8mA SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
Wideband, Low-Power, Current Feedback Operational Amplifier
- Manufacturer
- TI
- Manufacturer part #
- OPA694IDR
- Store part #
- C2866564
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,245 in stock
#C2866564
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹514.61 | ₹514.61 |
| 10+ | ₹444.75 | ₹4,447.50 |
| 30+ | ₹403.32 | ₹12,099.60 |
| 100+ | ₹361.44 | ₹36,144.00 |
| 500+ | ₹342.13 | ₹1,71,065.00 |
| 1,000+ | ₹333.24 | ₹3,33,240.00 |
1 × ₹514.61
₹514.61
excl. GST
₹607.24 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
OPA694IDR
₹514.61 for 1 + GST
Specifications
- Output Current
- 80mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 4.1mV
- Slew Rate
- 1.7V/ns
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 51dB
- Ib - Input Bias Current
- 150uA
- Input Offset Voltage Drift(Vos TC)
- 26uV/℃
- Quiescent Current
- 5.8mA
- Features
- Built-in compensation
- Input Voltage Noise Density
- 3nV/√Hz@1MHz
- Dual Supply
- -6.3V~6.3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.11 g
Overview
The OPA694 is an ultra-wideband, low-power, current feedback operational amplifier featuring high slew rate and low differential gain/phase errors. An improved output stage provides ±80mA output drive with < 1.5V output voltage headroom. Low supply current with > 500MHz bandwidth meets the requirements of high-density video routers. Being a current feedback design, the OPA694 holds its bandwidth to very high gains—at a gain of 10, the OPA694 will still provide 200MHz bandwidth. RF applications can use the OPA694 as a low-power SAW pre-amplifier. Extremely high 3rd-order intercept is provided through 70MHz at much lower quiescent power than many typical RF amplifiers. The OPA694 is available in an industry-standard pinout in both SO-8 and SOT23-5 packages.
Applications
- WIDEBAND VIDEO LINE DRIVER
- MATRIX SWITCH BUFFER
- DIFFERENTIAL RECEIVER
- ADC DRIVER
- IMPROVED REPLACEMENT FOR OPA658
Key features
- UNITY GAIN STABLE BANDWIDTH: 1.5GHz
- HIGH GAIN OF 2V/V BANDWIDTH: 690MHz
- LOW SUPPLY CURRENT: 5.8mA
- HIGH SLEW RATE: 1700V/msec
- HIGH FULL-POWER BANDWIDTH: 675MHz
- LOW DIFFERENTIAL GAIN/PHASE: 0.03%/0.015°
- Pb-FREE AND GREEN SOT23-5 PACKAGE
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| OPA694ID#C1346554TI · SOIC-8 | TI | SOIC-8 | On request | Price on request | Quote | |
