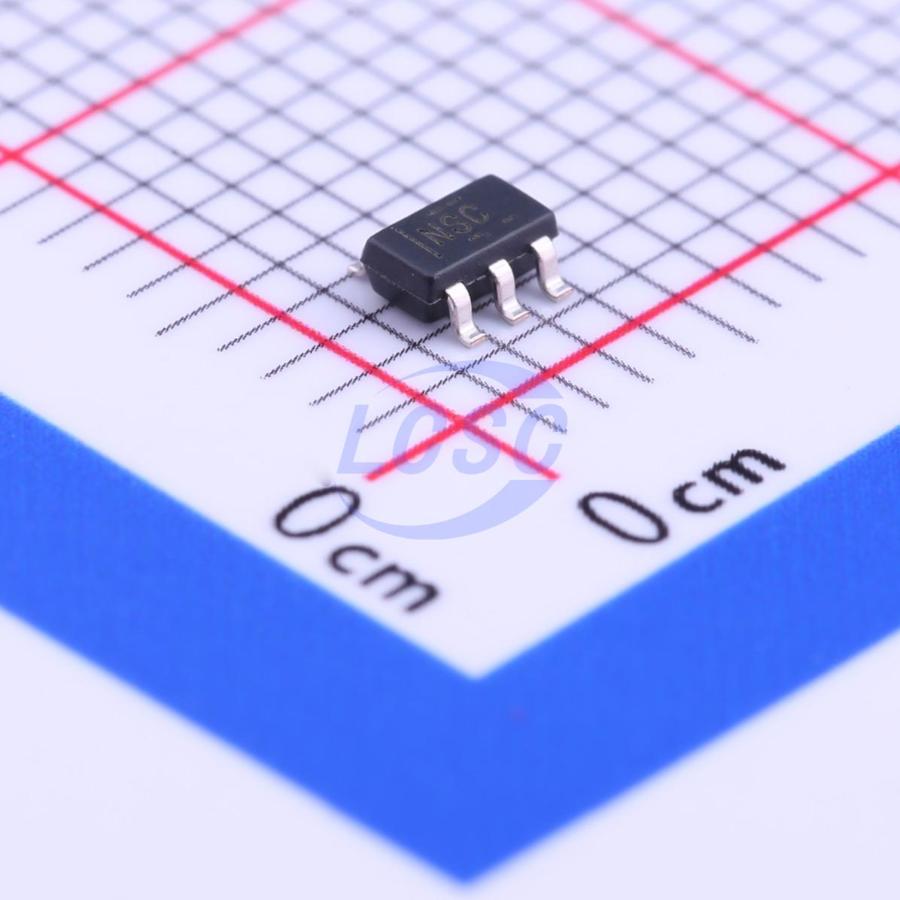

OPA735AIDBVR

50mA 1 5uV 1.5V/us 130dB 200pA 750uA 1.6MHz Rail-to-rail output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-5ROHS3 CompliantActive

Single-supply CMOS operational amplifier, 0.05μV/℃ max

Manufacturer: TI
Manufacturer part #: OPA735AIDBVR
Store part #: C83149
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,375 in stock

#C83149

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹385.44	₹385.44
10+	₹339.68	₹3,396.80
30+	₹311.04	₹9,331.20
100+	₹281.76	₹28,176.00
500+	₹268.53	₹1,34,265.00
1,000+	₹262.67	₹2,62,670.00

Quantity (min 1)

1 × ₹385.44

₹385.44

excl. GST

₹454.82 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

OPA735AIDBVR

₹385.44 for 1 + GST

Specifications

Output Current: 50mA
Number of Channels: 1
Vos - Input Offset Voltage: 5uV
Slew Rate: 1.5V/us
Input Offset Current(Ios): 300pA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 130dB
Ib - Input Bias Current: 200pA
Input Offset Voltage Drift(Vos TC): 50nV/℃
Quiescent Current: 750uA
Gain Bandwidth Product: 1.6MHz
Features: Zero drift / auto-zero;Built-in compensation;Reverse-phase input protection;Overvoltage protection
Input Voltage Noise Density: 135nV/√Hz@1kHz
Dual Supply: -6V~-1.35V;1.35V~6V
Rail to Rail: Rail-to-rail output
Single Supply: 2.7V~12V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.033 g

Overview

The OPA734 and OPA735 series of CMOS operational amplifiers use auto-zeroing techniques to simultaneously provide low offset voltage (5μV max) and near-zero drift over time and temperature. These miniature, high-precision, low quiescent current amplifiers offer high input impedance and rail-to-rail output swing within 50mV of the rails. Either single or bipolar supplies can be used in the range of +2.7V to +12V (±1.35V to ±6V). They are optimized for low-voltage, single-supply operation. The OPA734 family includes a shutdown mode. Under logic control, the amplifiers can be switched from normal operation to a standby current that is 9μA (max) and the output placed in a high-impedance state. The single version is available in the MicroSIZE SOT23-5 (SOT23-6 for shutdown version) and the SO-8 packages. The dual version is available in the MSOP-8 and SO-8 packages (MSOP-10 only for the shutdown version). All versions are specified for operation from -40°C to +85°C.
