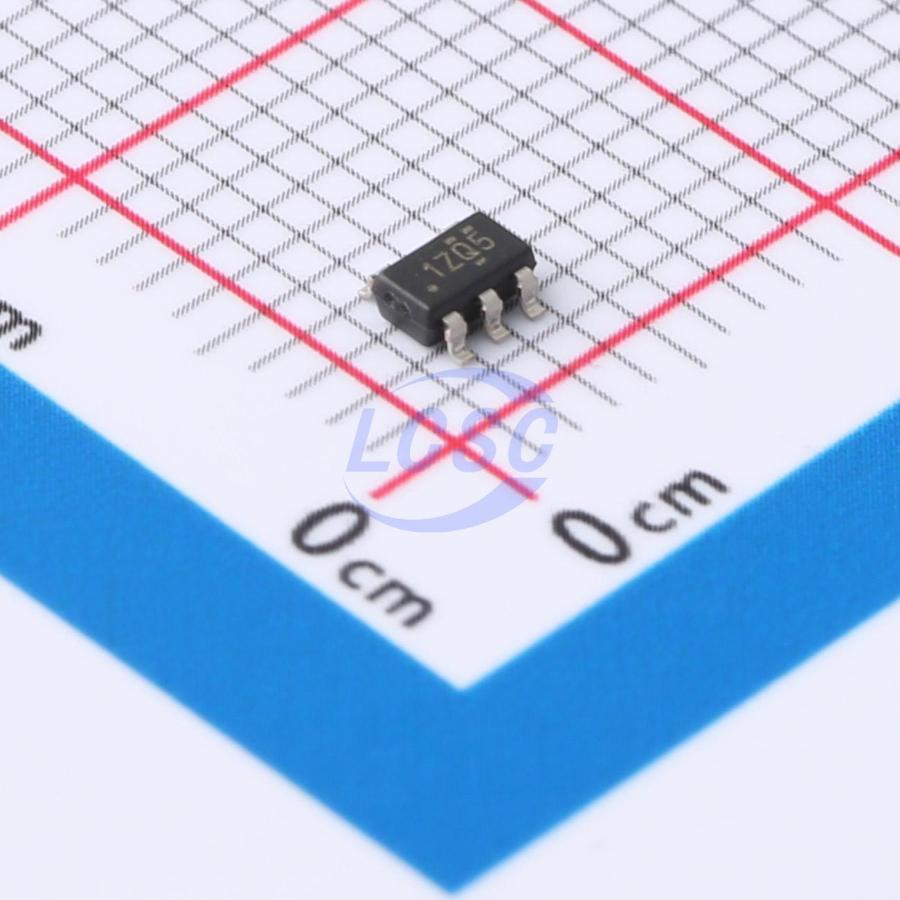

OPA810IDBVR

75mA 1 500uV 200V/us 100dB 2pA 70MHz 3.7mA Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-5ROHS CompliantActive

140 MHz, rail-to-rail input and output, FET-input operational amplifier

Manufacturer: TI
Manufacturer part #: OPA810IDBVR
Store part #: C2833513
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,260 in stock

#C2833513

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹411.48	₹411.48
10+	₹349.34	₹3,493.40
30+	₹312.19	₹9,365.70
100+	₹275.04	₹27,504.00
500+	₹257.67	₹1,28,835.00
1,000+	₹249.84	₹2,49,840.00

Quantity (min 1)

1 × ₹411.48

₹411.48

excl. GST

₹485.55 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

OPA810IDBVR

₹411.48 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 75mA
Number of Channels: 1
Vos - Input Offset Voltage: 500uV
Slew Rate: 200V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 100dB
Ib - Input Bias Current: 2pA
Input Offset Voltage Drift(Vos TC): 2.5uV/℃
Gain Bandwidth Product: 70MHz
Quiescent Current: 3.7mA
Features: Built-in compensation;Short-Circuit Protection
Input Voltage Noise Density: 6.3nV/√Hz@500kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 4.75V~27V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.03 g

Overview

The OPA810 is a single-channel, field-effect transistor (FET) input, voltage-feedback operational amplifier with bias current in the picoampere (pA) range. The OPA810 features a small-signal unity-gain bandwidth of 140 MHz and unity-gain stability, and offers excellent DC accuracy and dynamic AC performance at a low quiescent current (I Q) of 3.7 mA per channel. Manufactured using a proprietary high-speed SiGe BiCMOS process, the OPA810 significantly improves performance compared to equivalent FET-input amplifiers at similar quiescent power dissipation levels. With a gain-bandwidth product (GBWP) of 70 MHz, a slew rate of 200 V/µs, and a low noise voltage of 6.3 nV/√Hz, the OPA810 is well-suited for a variety of high-fidelity data acquisition and signal processing applications. The OPA810 has rail-to-rail inputs and outputs, can provide a linear output current of 75 mA, and is suitable for driving photoelectric components and analog-to-digital converter (ADC) inputs or buffering digital-to-analog converter (DAC) outputs into heavy loads. The OPA810 is rated for industrial operating temperatures ranging from -40°C to +125°C. The OPA2810 is the dual-channel version of this device and is available in 8-pin SOIC, SOT-23, and VSSOP packages.
