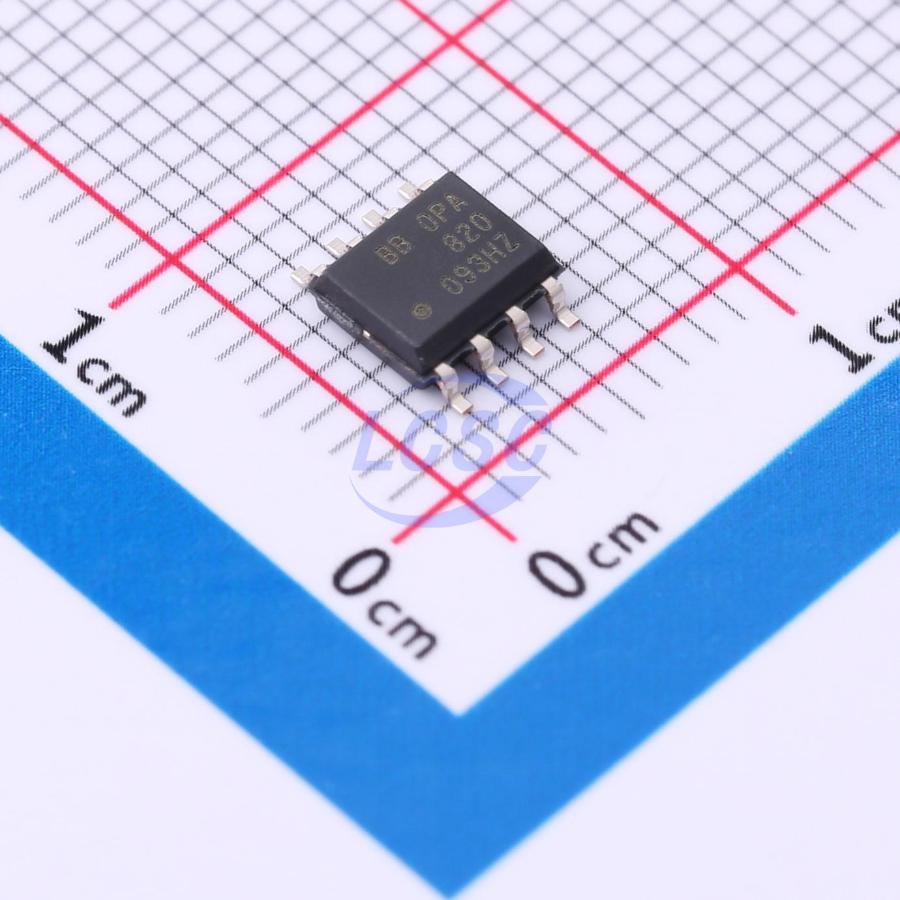

OPA820IDR

The OPA820 device provides a wideband, unity-gain stable, voltage-feedback amplifier with a very-low input-noise voltage and high-output current using a low 5.6 mA supply current. At unity-gain, the OPA820 device gives more than 800-MHz bandwidth with less than 1-dB peaking. The OPA820 device complements this high-speed operation with excellent DC precision in a low-power device. A worst-case input-offset voltage of ±750 μV and an offset current of ±400 nA provide excellent absolute DC precision for pulse amplifier applications. Minimal input and output voltage-swing headroom allow the OPA820 device to operate on a single 5-V supply with more than 2-VPP output swing. While not a rail-to-rail (RR) output, this swing supports most emerging analog-to-digital converter (ADC) input ranges with lower power and noise than typical RR output op amps. Exceptionally low dG/dP (0.01% or 0.03°) supports low-cost composite-video line-driver applications. Existing designs can use the industry-standard pinout, 8-pin SOIC package while emerging highdensity portable applications can use the 5-pin SOT23. Offering the lowest thermal impedance of the industry in a SOT package, along with full specification over both the commercial and industrial temperature ranges, provides solid performance over a wide temperature range.

Applications

• Low-Cost Video Line Drivers
• ADC Preamplifiers
• Active Filters
• Low-Noise Integrators
• Portable Test Equipment
• Optical Channel Amplifiers
• Low-Power, Baseband Amplifiers
• CCD Imaging Channel Amplifiers
• OPA650 and OPA620 Upgrade

Key features

• High Bandwidth (240 MHz, G = 2 Ω)
• High-Output Current (±110 mA)
• Low-Input Noise (2.5 nV/√Hz)
• Low-Supply Current (5.6 mA)
• Flexible Supply Voltage:
• Dual ±2.5 V to ±6 V
• Single 5 V to 12 V
• Excellent DC Accuracy:
• Maximum 25°C Input Offset Voltage = ±750 μV
• Maximum 25°C Input Offset Current = ±400 nA
