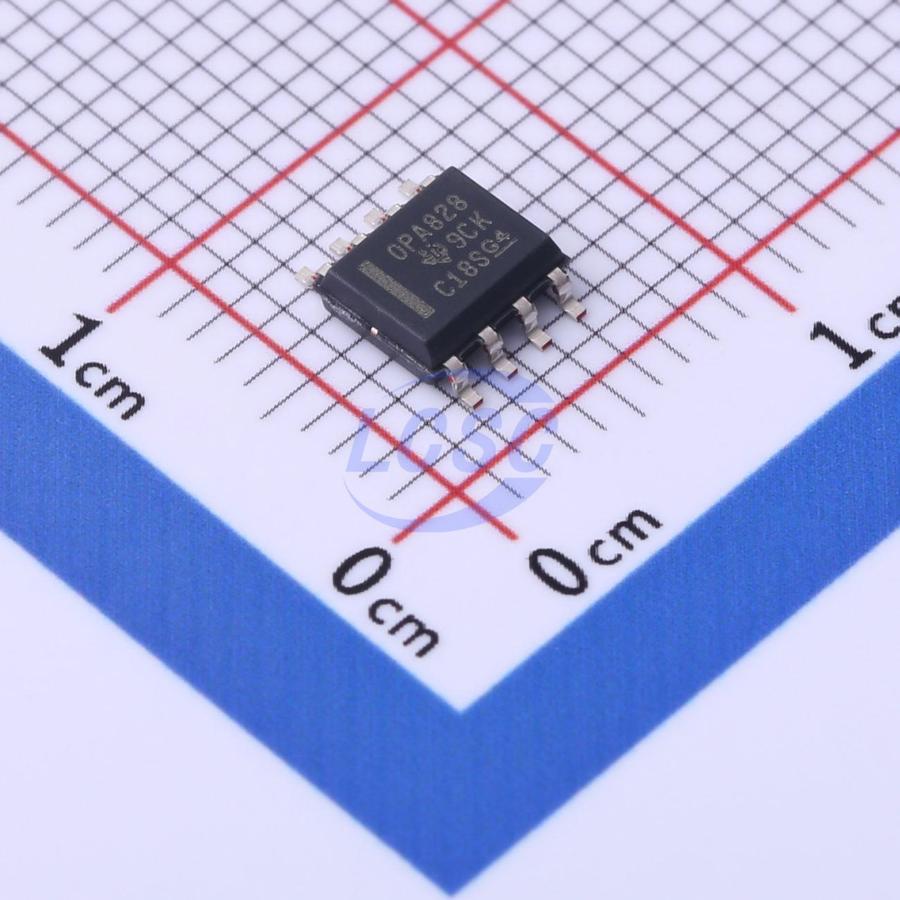

OPA828IDR

30mA 1 50uV 150V/us 108dB 1pA 5.5mA 45MHz SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-8ROHS3 CompliantActive

Low offset voltage, low temperature drift, low noise, 45MHz, 36V JFET-input operational amplifier

Manufacturer: TI
Manufacturer part #: OPA828IDR
Store part #: C1850247
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,019 in stock

#C1850247

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹573.06	₹573.06
10+	₹495.54	₹4,955.40
30+	₹456.01	₹13,680.30
100+	₹402.81	₹40,281.00
500+	₹383.71	₹1,91,855.00
1,000+	₹375.67	₹3,75,670.00

Quantity (min 1)

1 × ₹573.06

₹573.06

excl. GST

₹676.21 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

OPA828IDR

₹573.06 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 30mA
Number of Channels: 1
Vos - Input Offset Voltage: 50uV
Slew Rate: 150V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 108dB
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 0.45uV/℃
Quiescent Current: 5.5mA
Gain Bandwidth Product: 45MHz
Features: ESD protection;Overvoltage protection;Short-Circuit Protection
Input Voltage Noise Density: 4nV/√Hz@1kHz
Dual Supply: -18V~-4V;4V~18V
Single Supply: 8V~36V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.113 g

Overview

The OPA828 and OPA2828 (OPAx828) JFET-input op amps are the next-generation successors to the OPA627 and OPA827, combining high speed, high DC precision, and superior AC performance. These op amps deliver low offset voltage, low temperature drift, low bias current, and low noise of only 60nVRMS from 0.1Hz to 10Hz. The OPAx828 operates over a wide supply voltage range of ±4V to ±18V with a quiescent current of only 5.5mA (typical) per channel. With a comprehensive set of AC characteristics — including 45MHz GBW, 150V/μs slew rate — combined with precision DC performance, the OPAx828 family is well suited for a wide range of applications, including high-speed and high-resolution data acquisition systems (e.g., 16-bit and 18-bit mixed-signal systems), transimpedance (I/V conversion) amplifiers, filters, precision ±10V front-ends, and high-impedance sensor interface applications. The OPAx828 is available in an 8-pin SOIC package and a thermally enhanced 8-pin HVSSOP PowerPAD IC package.
