TIDatasheet (PDF)

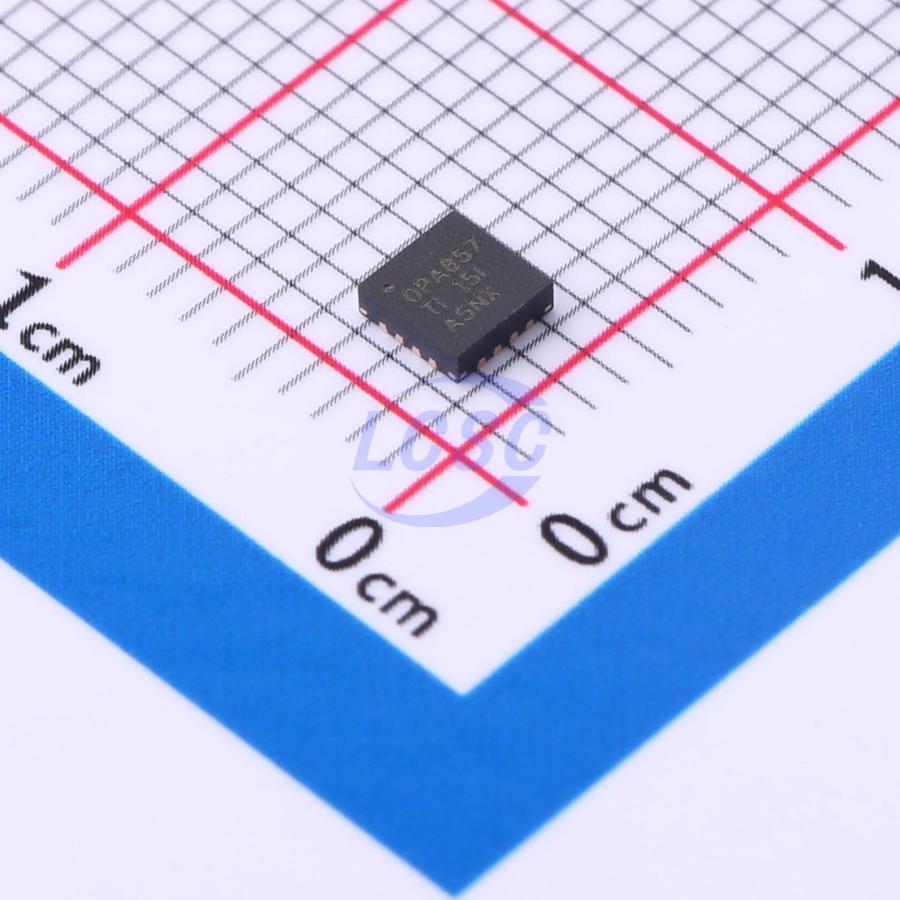

OPA857IRGTR
125MHz 1mV 215V/us Transimpedance Amplifier VQFN-16(3x3) Instrumentation, Op Amps, Buffer Amps RoHS
VQFN-16(3x3)ROHS3 CompliantActive
Ultra-low noise, wideband, selectable feedback resistor transimpedance amplifier
- Manufacturer
- TI
- Manufacturer part #
- OPA857IRGTR
- Store part #
- C970230
- Package / case
- VQFN-16(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,548 in stock
#C970230
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹610.50 | ₹610.50 |
| 10+ | ₹528.66 | ₹5,286.60 |
| 30+ | ₹480.06 | ₹14,401.80 |
| 100+ | ₹430.83 | ₹43,083.00 |
| 500+ | ₹408.16 | ₹2,04,080.00 |
| 1,000+ | ₹398.01 | ₹3,98,010.00 |
1 × ₹610.50
₹610.50
excl. GST
₹720.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
OPA857IRGTR
₹610.50 for 1 + GST
Specifications
- Gain Bandwidth Product
- 125MHz
- Features
- Programmable gain mode;Built-in current limiting / output protection;Programmable reference voltage
- Vos - Input Offset Voltage
- 1mV
- Slew Rate
- 215V/us
- Amplifier Type
- Transimpedance Amplifier
- Operating Temperature
- -40℃~+85℃
- Single Supply
- 2.7V~3.6V
- Input Offset Voltage Drift(Vos TC)
- 15uV/℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.06 g
Overview
The OPA857 is a wideband, fast overdrive recovery, fast settling, ultra-low noise transimpedance amplifier designed for photodiode monitoring applications. With selectable feedback resistors, the OPA857 simplifies the design of high-performance optical systems. Extremely fast overload recovery time combined with internal input protection provides the optimal combination to minimize recovery time while protecting the remainder of the signal chain. Two selectable transimpedance gain configurations deliver the high dynamic range and flexibility required by contemporary transimpedance amplifier applications. The OPA857 is offered in a 3mm×3mm ultra-thin VQFN package. This device is rated for operation over the full industrial temperature range of -40℃ to +85℃.
Applications
- Photodiode monitoring
- High-speed I/V conversion
- Optical amplifiers
- Computed axial tomography (CAT) scanner front-end
Key features
- Internal mid-supply reference voltage
- Pseudo-differential output voltage
- Wide dynamic range
- Closed-loop transimpedance bandwidth:
- 125MHz (5kΩ transimpedance gain, 1.5pF external parasitic capacitance)
- 105MHz (20kΩ transimpedance gain, 1.5pF external parasitic capacitance)
- Ultra-low input-referred current noise (Brickwall filter bandwidth = 135MHz): 15nARMS (20kΩ transimpedance)
- Ultra-short overload recovery time: <25ns
- Internal input protection diodes
- Power supply:
- Voltage: 2.7V to 3.6V
- Current: 23.4mA
- Extended industrial temperature range: -40℃ to +85℃
