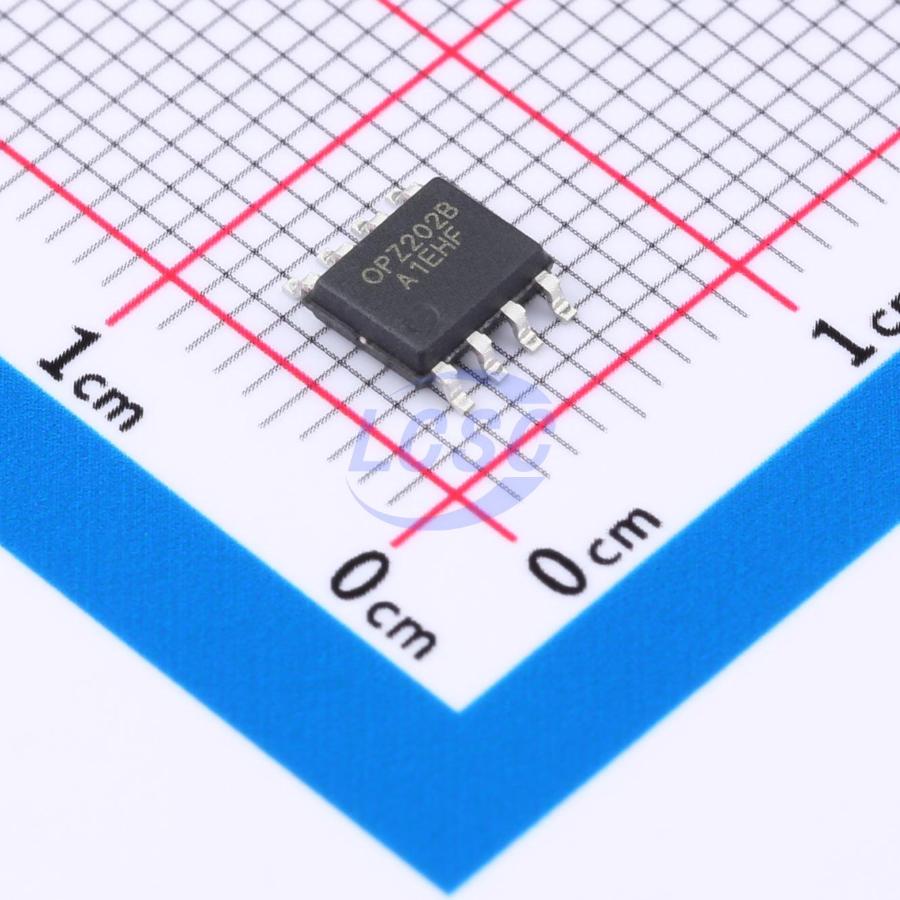

OPZ202BSOIC8
29mA 1 10uV 2.8V/us 1nA 149dB 1MHz 300uA Rail-to-Rail Input, Rail-to-Rail Output SOIC-8 Instrumentation, Op Amps, Buffer Amps
SOIC-8RoHSActive
40V, High-Performance, General-Purpose, Zero-Drift Operational Amplifiers
- Manufacturer
- analogysemi
- Manufacturer part #
- OPZ202BSOIC8
- Store part #
- C5359433
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,366 in stock
#C5359433
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹131.18 | ₹131.18 |
| 10+ | ₹118.40 | ₹1,184.00 |
| 30+ | ₹111.37 | ₹3,341.10 |
| 100+ | ₹103.50 | ₹10,350.00 |
| 500+ | ₹100.08 | ₹50,040.00 |
| 1,000+ | ₹98.39 | ₹98,390.00 |
1 × ₹131.18
₹131.18
excl. GST
₹154.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
OPZ202BSOIC8
₹131.18 for 1 + GST
Specifications
- Output Current
- 29mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 10uV
- Slew Rate
- 2.8V/us
- Input Offset Current(Ios)
- 6nA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1nA
- Common Mode Rejection Ratio(CMRR)
- 149dB
- Input Offset Voltage Drift(Vos TC)
- 200nV/℃
- Gain Bandwidth Product
- 1MHz
- Quiescent Current
- 300uA
- Features
- Zero drift / auto-zero;EMI filtering/RF suppression
- Input Voltage Noise Density
- 17.6nV/√Hz@1kHz
- Dual Supply
- -20V~-2.25V;2.25V~20V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 4.5V~40V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.11 g
Overview
- Bridge amplifiers - Strain gauges - Transducer applications - Temperature measurement - Electronic scales - Medical instrumentation - Resistance temperature detectors - The OPZ202/2022 family provides up to 1MHz bandwidth, 2.8V/µs slew rate, and outstanding DC performance, which is rather suitable for active filter circuits. - The OPZ202/2022 operational amplifiers are offered in the SOT23 - 5 and SOIC - 8 packages. All versions are specified from -40°C to 125°C.
Applications
- The OPZ202/2022 devices are high - performance, general - purpose operational amplifiers that support 4.5V to 40V supply range. With extremely low input offset voltage of 10µV (maximum) and a high CMRR of 149dB, the OPZ202/2022 operational amplifiers provide excellent initial accuracy and rail - to - rail output. The devices work well with both single - supply convenient portable equipment and differential output scenarios.
Key features
- Low offset voltage: 10µV (max)
- Zero - drift: 0.2µV/°C (max)
- Low noise: 17.6nV/√Hz 0.1Hz to 10Hz noise: 0.36µVPP
- Excellent DC precision: PSRR: 146dB CMRR: 149dB Open - loop gain: 164dB
- Gain bandwidth: 1MHz
- Quiescent current: 300µA (typ)
- Wide supply range: ±2.25V to ±20V
- Rail - to - rail output
- Input includes negative rail
- RFI filtered inputs
- 1/2 channel
