Lingyang MicroDatasheet (PDF)

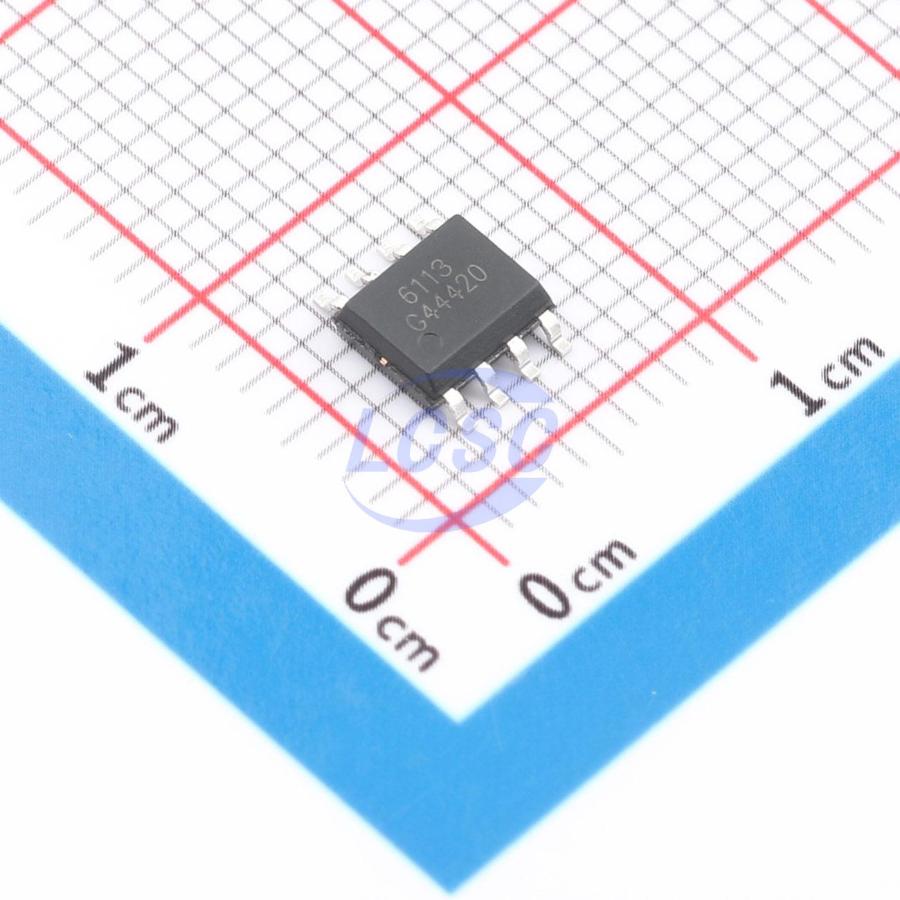

PB6113
Lithium Battery 720mA SOP-8 Battery Management
SOP-8RoHSActive
- Manufacturer
- Lingyang Micro
- Manufacturer part #
- PB6113
- Store part #
- C50331616
- Package / case
- SOP-8
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,870 in stock
#C50331616
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.98 | ₹79.80 |
| 100+ | ₹6.30 | ₹630.00 |
| 300+ | ₹5.46 | ₹1,638.00 |
| 1,000+ | ₹4.84 | ₹4,840.00 |
| 4,000+ | ₹4.34 | ₹17,360.00 |
| 8,000+ | ₹4.09 | ₹32,720.00 |
10 × ₹7.98
₹79.80
excl. GST
₹94.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
PB6113
₹79.80 for 10 + GST
Specifications
- Operating Temperature
- -25℃~+125℃
- Quiescent Current
- 7uA
- 0V Battery Charge
- Support
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.5V~5.5V
- Features
- Constant current charging;Trickle charging;Constant voltage charging;Automatic recharge;Charge termination;Overcurrent Protection;Short-Circuit Protection;Overvoltage protection;Over-discharge protection;Soft-start
- The Chip Type
- Charging IC;Protection IC
- Charge Current - Max
- 720mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.15 g
Overview
PB6113 is a mobile power SOC integrating lithium battery charge management, synchronous boost conversion, battery gauge, and protection functions. It supports automatic load detection and light-load auto-shutdown, with a standby current of 7uA after auto-shutdown. The charge current is 0.72A, with a discharge output of 5V/0.9A. The chip features built-in power path management supporting pass-through charging, with integrated overcurrent and short-circuit protection.
Applications
- Power bank
- Lithium battery charge/discharge applications
Key features
- Ultra-low standby current: 7uA
- Simultaneous charging and discharging support
- Automatic load detection, auto power-off under light load
- 1 or 2 LED battery level indication
- Charge current: 0.72A
- Discharge output: 5V/0.9A
- Preset full-charge voltage: 4.2V
- Intelligent temperature control
- Output overvoltage, short-circuit, and overcurrent protection
- SOP8 package
