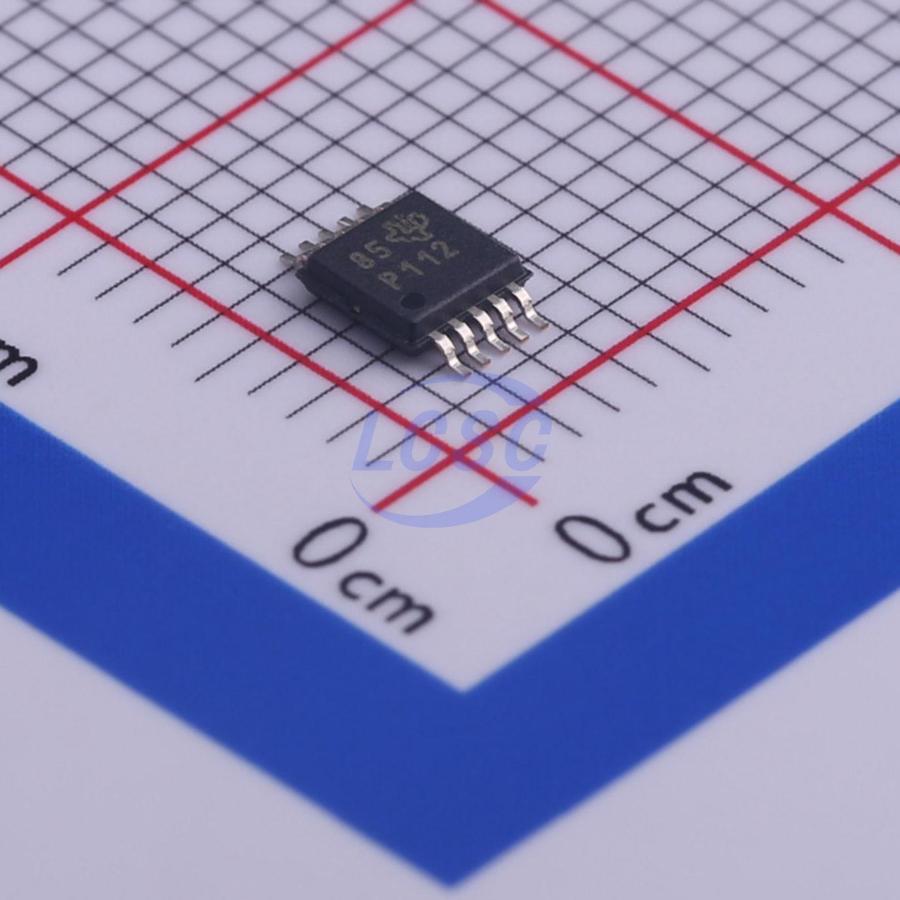

PGA112AIDGSR

The PGA112 and PGA113 devices (binary and scope gains) offer two analog inputs, a three-pin SPI interface, and software shutdown in a 10-pin, VSSOP package. The PGA116 and PGA117 (binary and scope gains) offer 10 analog inputs, a SPI interface with daisy-chain capability, and hardware and software shutdown in a 20-pin TSSOP package. All versions provide internal calibration channels for system-level calibration. The channels are tied to GND, 0.9 V_CAL, 0.1 V_CAL, and V_REF, respectively. V_CAL, an external voltage connected to Channel 0, is used as the system calibration reference. Binary gains are: 1, 2, 4, 8, 16, 32, 64, and 128; scope gains are: 1, 2, 5, 10, 20, 50, 100, and 200.

Applications

• Remote e-Meter Reading
• Automatic Gain Control
• Portable Data Acquisition
• PC-Based Signal Acquisition Systems
• Test and Measurement
• Programmable Logic Controllers
• Battery-Powered Instruments
• Handheld Test Equipment

Key features

• Rail-to-Rail Input and Output
• Offset: 25 μV (Typical), 100 μV (Maximum)
• Zero Drift: 0.35 μV/°C (Typical), 1.2 μV/°C (Maximum)
• Low Noise: 12 nV/√Hz
• Input Offset Current: ±5 nA Maximum (25°C)
• Gain Error: 0.1% Maximum (G ≤ 32), 0.3% Maximum (G > 32)
• Binary Gains: 1, 2, 4, 8, 16, 32, 64, 128 (PGA112, PGA116)
• Scope Gains: 1, 2, 5, 10, 20, 50, 100, 200 (PGA113, PGA117)
• Gain Switching Time: 200 ns
• 2 Channel MUX: PGA112, PGA113
• 10 Channel MUX: PGA116, PGA117
• Four Internal Calibration Channels
• Amplifier Optimized for Driving CDAC ADCs
• Output Swing: 50 mV to Supply Rails AV_DD and DV_DD for Mixed Voltage Systems
• I_Q = 1.1 mA (Typical)
• Software and Hardware Shutdown: I_Q ≤ 4 μA (Typical)
• Temperature Range: -40°C to 125°C
• SPI Interface (<10 MHz) With Daisy-Chain Capability
