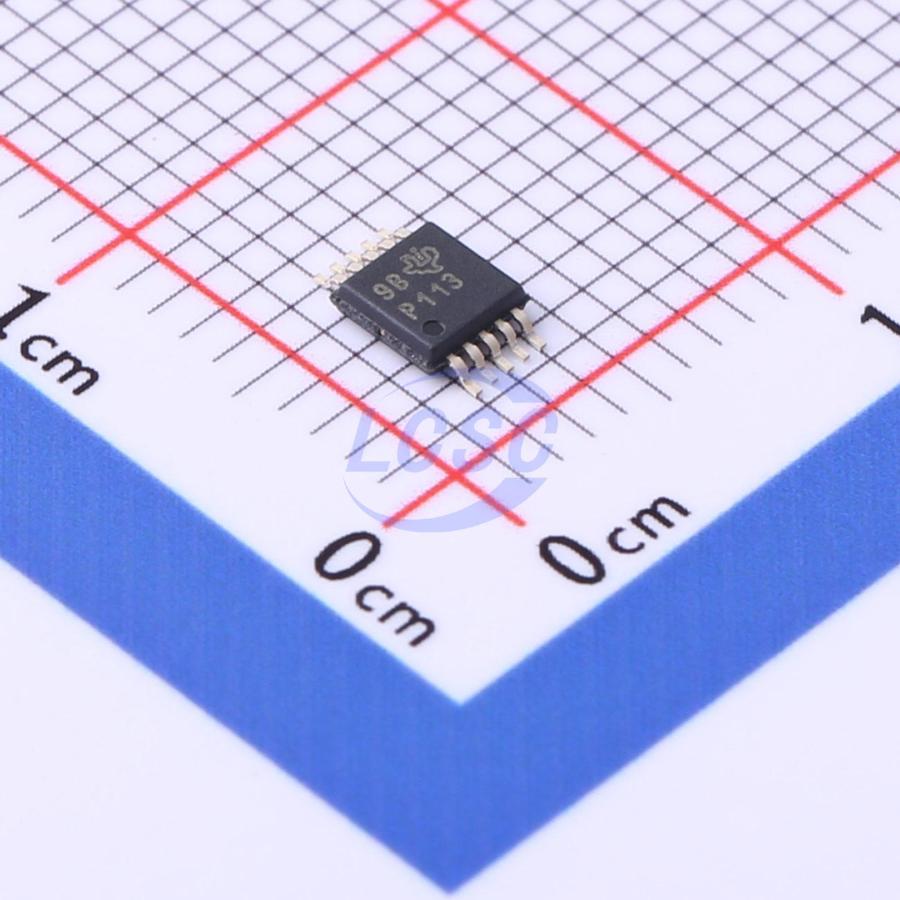

PGA113AIDGSR

60mA 2 100uV PGA 5000pA 1100000nA 1V/V~200V/V VSSOP-10-0.5mm Instrumentation, Op Amps, Buffer Amps RoHS

VSSOP-10-0.5mmROHS3 CompliantActive

Zero-Drift Programmable Gain Amplifier With Mux

Manufacturer: TI
Manufacturer part #: PGA113AIDGSR
Store part #: C2057394
Package / case: VSSOP-10-0.5mm
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,050 in stock

#C2057394

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹317.64	₹317.64
10+	₹272.54	₹2,725.40
30+	₹244.13	₹7,323.90
100+	₹215.08	₹21,508.00
500+	₹201.86	₹1,00,930.00
1,000+	₹196.23	₹1,96,230.00

Quantity (min 1)

1 × ₹317.64

₹317.64

excl. GST

₹374.82 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

PGA113AIDGSR

₹317.64 for 1 + GST

Specifications

output type: Single-Ended
Output Current: 60mA
Number of Channels: 2
Current - Supply: 1.1mA
Vos - Input Offset Voltage: 100uV
Slew Rate: 3V/us;8V/us
Input Offset Current(Ios): 5nA
Amplifier Type: PGA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 5000pA
-3dB Bandwidth: 10MHz
Input Offset Voltage Drift(Vos TC): 1.2uV/℃
Quiescent Current: 1100000nA
Gain: 1V/V~200V/V
Features: Zero drift / auto-zero;Enable/shutdown function;Digital interface gain;Power-on reset / default gain
Rail to Rail: Rail-to-rail input;Rail-to-rail output
Single Supply: 2.2V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.07 g

Overview

The PGA112 and PGA113 devices (binary and scope gains) offer two analog inputs, a three-pin SPI interface, and software shutdown in a 10-pin, VSSOP package. The PGA116 and PGA117 (binary and scope gains) offer 10 analog inputs, a SPI interface with daisy-chain capability, and hardware and software shutdown in a 20-pin TSSOP package. All versions provide internal calibration channels for system-level calibration. The channels are tied to GND, 0.9 VcAL, 0.1 VcAL, and VREF respectively. VcAL, an external voltage connected to Channel O, is used as the system calibration reference. Binary gains are: 1, 2, 4, 8, 16, 32, 64, and 128; scope gains are: 1, 2, 5, 10, 20, 50, 100, and 200.

Applications

Remote e-Meter Reading
Automatic Gain Control
Portable Data Acquisition
PC-Based Signal Acquisition Systems
Test and Measurement
Programmable Logic Controllers
Battery-Powered Instruments
Handheld Test Equipment

Key features

Rail-to-Rail Input and Output
Offset: 25 μV (Typical), 100 μV (Maximum)
Zero Drift: 0.35 μV/°C (Typical), 1.2 μV/°C (Maximum)
Low Noise: 12 nV/√Hz
Input Offset Current: ±5 nA Maximum (25°C)
Gain Error: 0.1% Maximum (G ≤ 32), 0.3% Maximum (G > 32)
Binary Gains: 1, 2, 4, 8, 16, 32, 64, 128 (PGA112, PGA116)
Scope Gains: 1, 2, 5, 10, 20, 50, 100, 200 (PGA113, PGA117)
Gain Switching Time: 200 ns
2 Channel MUX: PGA112, PGA113
10 Channel MUX: PGA116, PGA117
Four Internal Calibration Channels
Amplifier Optimized for Driving CDAC ADCs
Output Swing: 50 mV to Supply Rails
AVDD and DVDD for Mixed Voltage Systems
IQ = 1.1 mA (Typical)
Software and Hardware Shutdown: IQ ≤ 4 μA (Typical)
Temperature Range: -40°C to 125°C
SPI Interface (<10 MHz) With Daisy-Chain Capability
