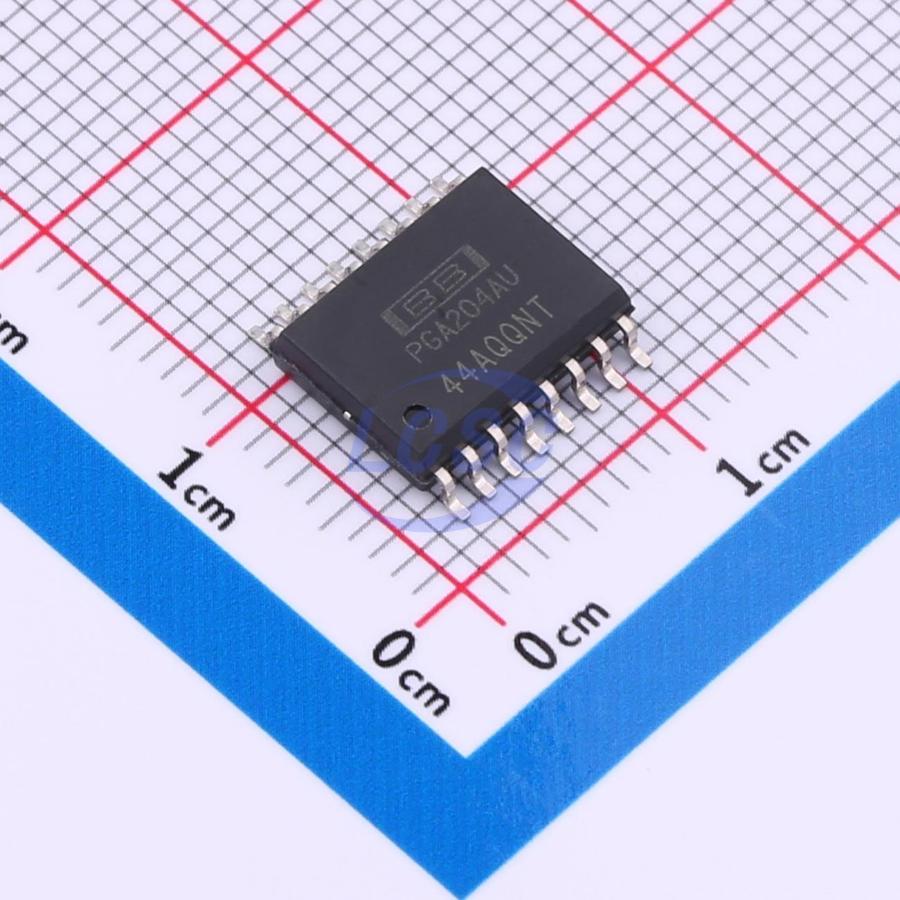

PGA204AU/1K

25uV 0.7V/us PGA 0.5nA 5.2mA SOIC-16-300mil Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-16-300milROHS3 CompliantActive

Programmable Gain Instrumentation Amplifier

Manufacturer: TI
Manufacturer part #: PGA204AU/1K
Store part #: C1849434
Package / case: SOIC-16-300mil
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,254 in stock

#C1849434

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹1,638.03	₹1,638.03
10+	₹1,419.49	₹14,194.90
30+	₹1,286.37	₹38,591.10
100+	₹1,174.70	₹1,17,470.00

Quantity (min 1)

1 × ₹1,638.03

₹1,638.03

excl. GST

₹1,932.88 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,000 per reel

PGA204AU/1K

₹1,638.03 for 1 + GST

Specifications

Output Current: 23mA;-17mA
Vos - Input Offset Voltage: 25uV
Slew Rate: 0.7V/us
Input Offset Current(Ios): 0.5nA
Amplifier Type: PGA
Operating Temperature: -40℃~+85℃
Ib - Input Bias Current: 0.5nA
Common Mode Rejection Ratio(CMRR): 90dB;106dB;110dB
Input Offset Voltage Drift(Vos TC): 0.25uV/℃
-3dB Bandwidth: 1MHz;80kHz;10kHz;1kHz
Quiescent Current: 5.2mA
Gain: 1V/V;10V/V;100V/V;1000V/V
Features: Digital interface gain
Dual Supply: ±15V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.5 g

Overview

The PGA204 and PGA205 are low cost, general purpose programmable-gain instrumentation amplifiers offering excellent accuracy. Gains are digitally selected: PGA204—1, 10, 100, 1000, and PGA205—1, 2, 4, 8V/V. The precision and versatility, and low cost of the PGA204 and PGA205 make them ideal for a wide range of applications. Gain is selected by two TTL or CMOS-compatible address lines, A₀ and A₁. Internal input protection can withstand up to ±40V on the analog inputs without damage. The PGA204 and PGA205 are laser trimmed for very low offset voltage (50μv), drift (0.25μV/°C) and high common-mode rejection (115dB at G = 1000). They operate with power supplies as low as ±4.5V, allowing use in battery operated systems. Quiescent current is 5mA. The PGA204 and PGA205 are available in 16-pin plastic DIP, and SOL-16 surface-mount packages, specified for the -40°C to +85°C temperature range.

Applications

DATA ACQUISITION SYSTEM
GENERAL PURPOSE ANALOG BOARDS
MEDICAL INSTRUMENTATION

Key features

DIGITALLY PROGRAMMABLE GAIN: PGA204: G = 1, 10, 100, 1000V/V PGA205: G = 1, 2, 4, 8V/V
LOW OFFSET VOLTAGE: 50μν max
LOW OFFSET VOLTAGE DRIFT: 0.25μV/°C
LOW INPUT BIAS CURRENT: 2nA max
LOW QUIESCENT CURRENT: 5.2mA typ
NO LOGIC SUPPLY REQUIRED
16-PIN PLASTIC DIP, SOL-16 PACKAGES
