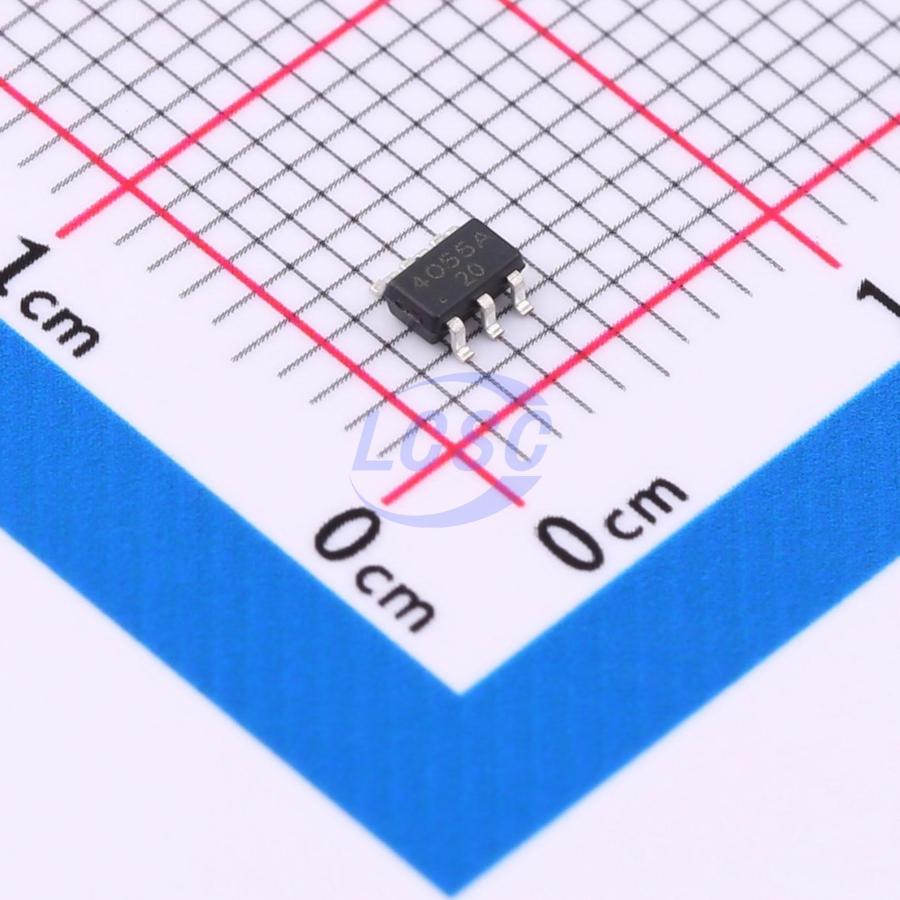

PJ4055A20SG
Lithium Battery 600mA SOT-23-6 Battery Management
Linear Lithium-ion Battery Charger
- Manufacturer
- PJSEMI
- Manufacturer part #
- PJ4055A20SG
- Store part #
- C41413543
- Package / case
- SOT-23-6
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,970 in stock
#C41413543
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.93 | ₹89.30 |
| 100+ | ₹7.06 | ₹706.00 |
| 300+ | ₹6.13 | ₹1,839.00 |
| 3,000+ | ₹5.42 | ₹16,260.00 |
| 6,000+ | ₹4.87 | ₹29,220.00 |
| 9,000+ | ₹4.59 | ₹41,310.00 |
10 × ₹8.93
₹89.30
excl. GST
₹105.37 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PJ4055A20SG
₹89.30 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Quiescent Current
- 170uA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 12V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Overvoltage protection;Overcurrent Protection;Under-voltage lockout;Soft-start
- The Chip Type
- Charging IC
- Charge Current - Max
- 600mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
The PJ4055 is a low cost, Single- cell, constant- current/constant- voltage Li- lon battery charger. with a few external components, the PJ4055 is very small stand alone charger for single lithium- ion batteries. Charge current is set externally with a single resistor, no blocking diode is required due to the internal MOSFET architecture. The PJ4055 charges to a final float voltage accurate to ± 0.6%, The PJ4055 automatically terminates the charge cycle when the charge current drops to 1/10th the programmed value after the final float voltage is reached and automatically puts into a sleep mode while removing input power. The output is both current and thermally protected to prevent operating outside of safe limits. UVLO, Thermal, OVP and reverse connection protection are also available.
Applications
- Cellular Telephones
- Charging Docks and Cradles
- Handheld Computers
- Low Cost and Small Size Chargers
Key features
- Standalone Li- Ion Charger with Thermal Regulation
- Programmable Charge Current Up to 600mA
- No Sense Resistor or Blocking Diode Required Preset Charge- Voltage with ± 0.6% Accuracy
- Suitable for USB- Powered Charging
- 6.2V Input Over Voltage Protect
- C/10 Charge Termination
- 12V Absolute Maximum Input Voltage
- Low Battery Charging Conditioning
- Automatic Recharge
- Negligible Battery Drain Current in Shutdown
- Protection Against Battery Reverse Connection
- Self- protection for Overcurrent/Overtemperature
- Available in SOT- 23- 6 Package
