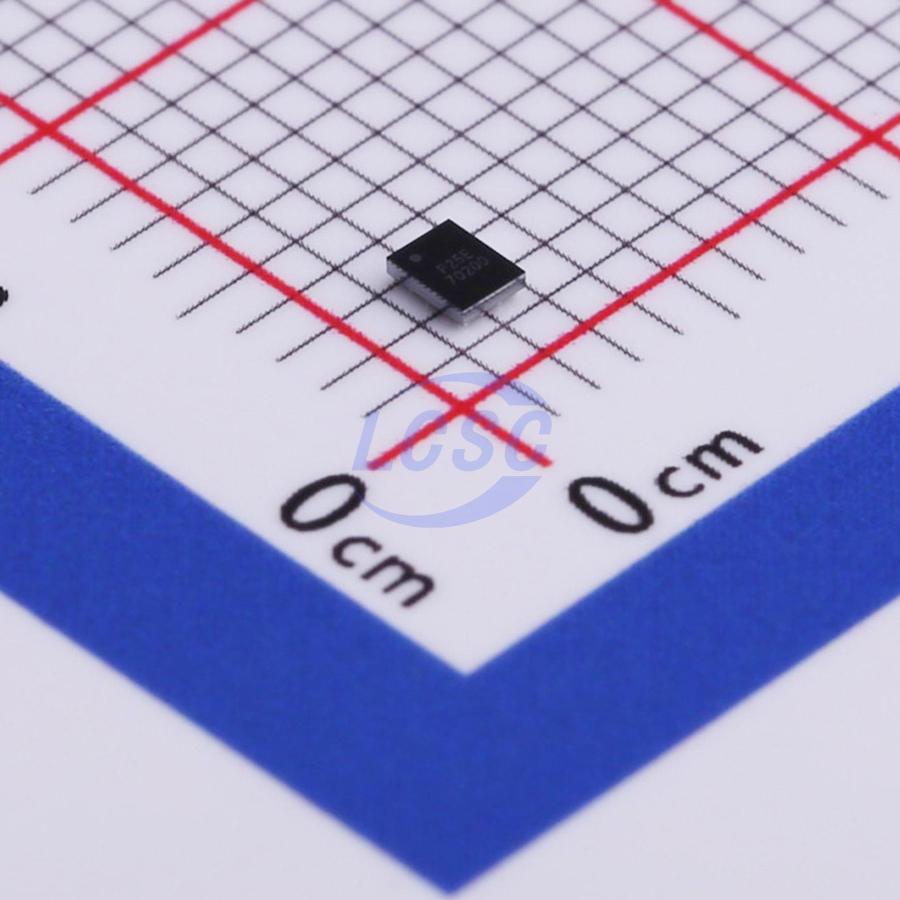

PSC5425E
I2C Lithium Battery 2.25A WLCSP-20 Battery Management
- Manufacturer
- Shanghai Prisemi Elec
- Manufacturer part #
- PSC5425E
- Store part #
- C496547
- Package / case
- WLCSP-20
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,830 in stock
#C496547
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.44 | ₹212.20 |
| 50+ | ₹33.42 | ₹1,671.00 |
| 150+ | ₹29.56 | ₹4,434.00 |
| 500+ | ₹24.73 | ₹12,365.00 |
| 3,000+ | ₹22.58 | ₹67,740.00 |
| 6,000+ | ₹21.29 | ₹1,27,740.00 |
| 9,000+ | ₹21.02 | ₹1,89,180.00 |
| 21,000+ | ₹20.85 | ₹4,37,850.00 |
5 × ₹42.44
₹212.20
excl. GST
₹250.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PSC5425E
₹212.20 for 5 + GST
Specifications
- Operating Temperature
- -25℃~+85℃
- Interface
- I2C
- Type of Battery
- Lithium Battery
- Operating Voltage
- 6V~29V
- Features
- Constant current charging;Constant voltage charging;Programmable charging current;Automatic recharge;Soft-start
- The Chip Type
- Charging IC
- Charge Current - Max
- 2.25A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.038 g
Overview
The PSC5425E combines a highly integrated switch-mode charger, to minimize single-cell Lithium-ion (Li-ion) charging time from a USB power source, and a boost regulator to power a USB peripheral from the battery. The charging parameters and operating modes are programmable through an I²C interface. The charger and boost regulator circuits switch at select-able frequency to lower the EMI and minimize the size of external passive components. The PSC5425E provides battery charging in three phases: conditioning, constant current, and constant voltage. To ensure USB compliance and minimize charging time, the input current is limited to the value set through the I²C host. Charge termination current is programmable through the I²C host. The integrated circuit (IC) automatically restarts the charge cycle when the battery falls below an internal threshold. If the input source is removed, the IC enters a high-impedance mode with leakage from the battery to the input prevented. Charge status is reported back to the host through the I²C port. The PSC5425E can operate as a boost regulator on command from the system. The boost regulator includes a soft-start that limits inrush current from the battery. The PSC5425E is available in a 20-bump, 0.4mm pitch WLCSP package.
Applications
- Cellular Phones, Smart Phones, PDAs
- Tablet, Portable Media Players
- Gaming Device, Digital Cameras
Key features
- Fully Integrated, High-Efficiency Charger for Single-Cell Li-lon and Li-Polymer Battery Packs
- Faster Charging than Linear
- Charge Voltage Accuracy: ±0.5% 25°C
- ±5% Charge Current Regulation Accuracy
- 29V Absolute Maximum Input Voltage
- 6V Maximum Input Operating Voltage
- 2.25A Maximum Charge Rate
- Programmable through I²C Interface: -Input Current -Fast-Charge/Termination Current -Charger Voltage -Termination Enable
- Synchronous Buck PWM Controller with Wide Duty Cycle Range
- Small Footprint 1μH External Inductor
- Weak Input Sources Accommodated by Reducing Charging Current to Maintain Minimum VBUS Voltage
- Low Reverse Leakage to Prevent Battery Drain to VBUS
- 5V, 700mA Boost Mode for USB OTG for 3.3 to 4.5V Battery Input
