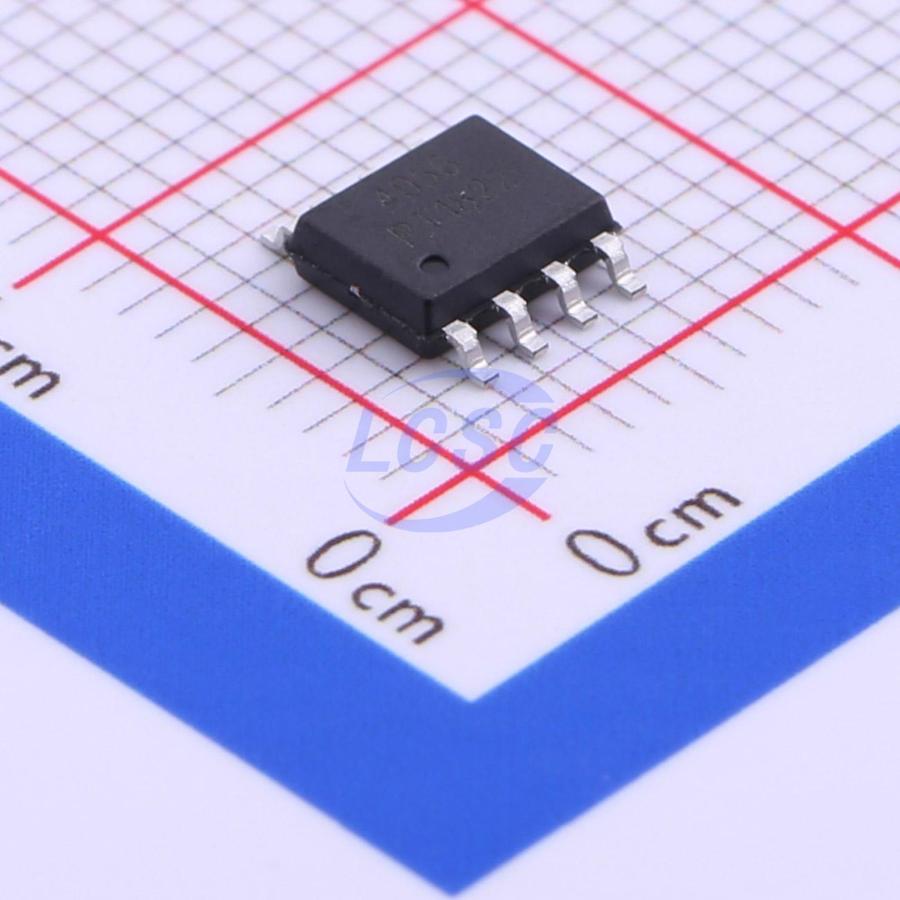

PT4056
Battery Charging IC Lithium-ion/Polymer ESOP-8
Single-cell lithium-ion battery constant current/constant voltage linear charger
- Manufacturer
- PUOLOP
- Manufacturer part #
- PT4056
- Store part #
- C351416
- Package / case
- ESOP-8
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,140 in stock
#C351416
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.59 | ₹95.90 |
| 100+ | ₹7.58 | ₹758.00 |
| 300+ | ₹6.58 | ₹1,974.00 |
| 3,000+ | ₹5.82 | ₹17,460.00 |
| 6,000+ | ₹5.23 | ₹31,380.00 |
| 9,000+ | ₹4.92 | ₹44,280.00 |
| 21,000+ | ₹4.86 | ₹1,02,060.00 |
| 39,000+ | ₹4.82 | ₹1,87,980.00 |
10 × ₹9.59
₹95.90
excl. GST
₹113.16 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PT4056
₹95.90 for 10 + GST
Specifications
- Operating Temperature
- -20℃~+75℃
- Quiescent Current
- 55uA
- 0V Battery Charge
- Not supported
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4V~6V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Soft-start;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 1A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.18 g
Overview
PT4056 is a complete single-cell lithium-ion battery CC/CV linear charger. The SOP8 package with a bottom heat sink pad, combined with minimal external components, makes the PT4056 ideal for portable applications. The PT4056 is suitable for both USB power supply and adapter power supply operation. The internal PMOSFET architecture, along with the reverse-charge protection circuit, eliminates the need for an external isolation diode. Thermal feedback automatically adjusts the charge current to limit the die temperature during high-power operation or high ambient temperature conditions. The charge voltage is fixed at 4.2V, while the charge current can be externally set via a single resistor. When the charge current drops to 1/10 of the programmed value after reaching the final float voltage, the PT4056 automatically terminates the charge cycle. When the input voltage (AC adapter or USB power supply) is removed, the PT4056 automatically enters a low-current, low-power state, reducing battery leakage current to below 2μA. The PT4056 can also be placed in shutdown mode when power is present, reducing supply current to 60μA. Additional features of the PT4056 include battery temperature monitoring, undervoltage lockout, automatic recharge, and two LED status pins for indicating charge and end-of-charge status.
Applications
- Mobile phones, PDAs
- MP3, MP4 players
- Digital cameras
- Electronic dictionaries
- GPS
- Portable devices, various chargers
Key features
- Programmable charge current up to 1000mA
- No MOSFET, sense resistors, or blocking diodes required
- Complete linear charger for single-cell Li-Ion batteries in SOP package
- Constant-current/constant-voltage operation with thermal regulation for maximum charge rate without risk of overheating
- 4.2V preset charge voltage with ±1.5% accuracy
- Charge current monitor output for battery fuel gauging
- Automatic recharge
- Dual charge status outputs, battery absence and fault status indication
- C/10 charge termination
- 55uA supply current in standby mode
- ~2.8V trickle charge device version
- Soft-start limits inrush current
- Battery temperature monitoring
- 8-pin SOP package with bottom heat slug
