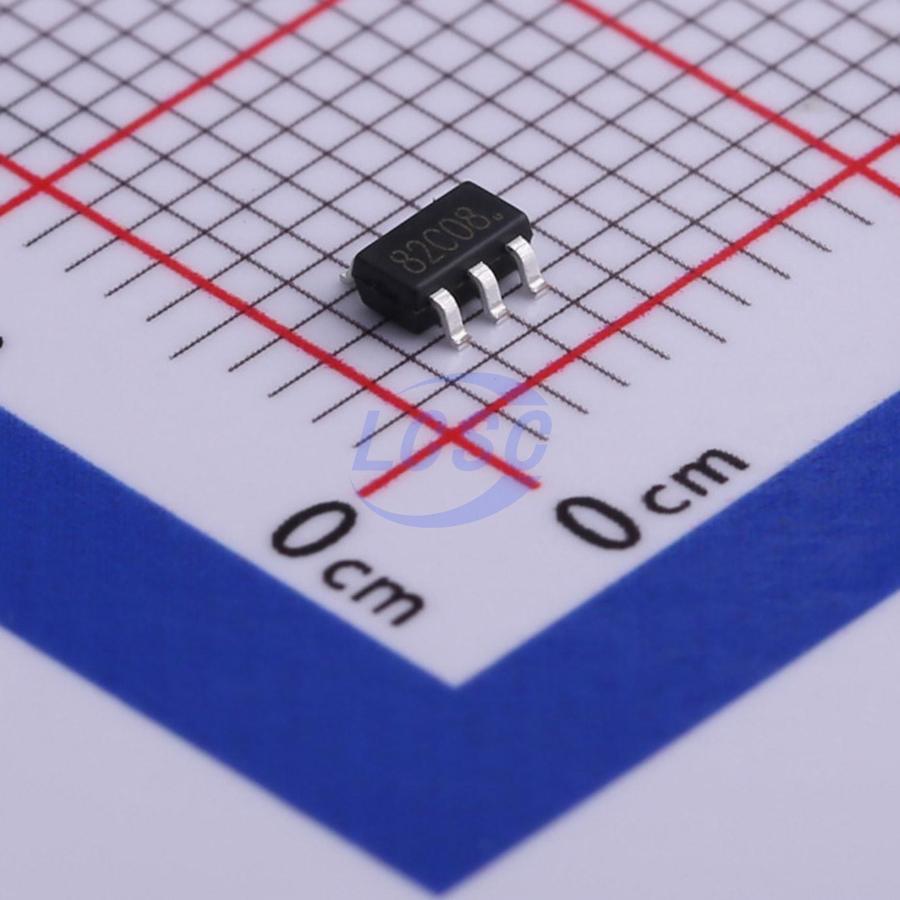

PT8202
Battery Protection IC Lithium-ion/Polymer SOT-23-5L
Lithium-ion/polymer battery protection solutions
- Manufacturer
- PUOLOP
- Manufacturer part #
- PT8202
- Store part #
- C479056
- Package / case
- SOT-23-5L
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,560 in stock
#C479056
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.56 | ₹55.60 |
| 100+ | ₹4.41 | ₹441.00 |
| 300+ | ₹3.83 | ₹1,149.00 |
| 3,000+ | ₹3.40 | ₹10,200.00 |
| 6,000+ | ₹3.06 | ₹18,360.00 |
| 9,000+ | ₹2.88 | ₹25,920.00 |
| 21,000+ | ₹2.85 | ₹59,850.00 |
| 39,000+ | ₹2.83 | ₹1,10,370.00 |
10 × ₹5.56
₹55.60
excl. GST
₹65.61 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PT8202
₹55.60 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 1.5uA
- 0V Battery Charge
- Support
- Type of Battery
- Lithium Battery
- Operating Voltage
- 3.6V
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection
- The Chip Type
- Protection IC
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.042 g
Overview
The PT8202 offers a highly integrated solution for lithium-ion/polymer battery protection. It incorporates internal power MOSFETs, a high-accuracy voltage detection circuit, and a delay circuit. The PT8202 provides all protection functions required for battery applications, including overcharge, overdischarge, overcurrent, and load short-circuit protection. Accurate overcharge detection voltage ensures safe charging and maximum capacity utilization. Low standby current minimizes battery drain during storage. This product is suitable not only for digital cellular phones, but also for any other information devices powered by lithium-ion or lithium-polymer batteries that require extended battery life.
Applications
- Single-cell Li-ion battery pack
- Power bank
- Single-cell LiPo battery pack
- IoT sensors / electronic toys
Key features
- Reverse charge connection protection
- Battery cell reverse connection protection
- Over-temperature protection
- Overcharge current protection
- Two-step overcharge current detection
- Over-discharge current protection
- Load short circuit protection
- Charger detection function
- 0V battery charging function
- Internal power MOSFET with equivalent on-resistance as low as 40mΩ
- Normal operating current: typical 2.5μA
- Standby current: typical 1.5μA
- RoHS compliant and lead (Pb)-free
- SOT23-5L package
