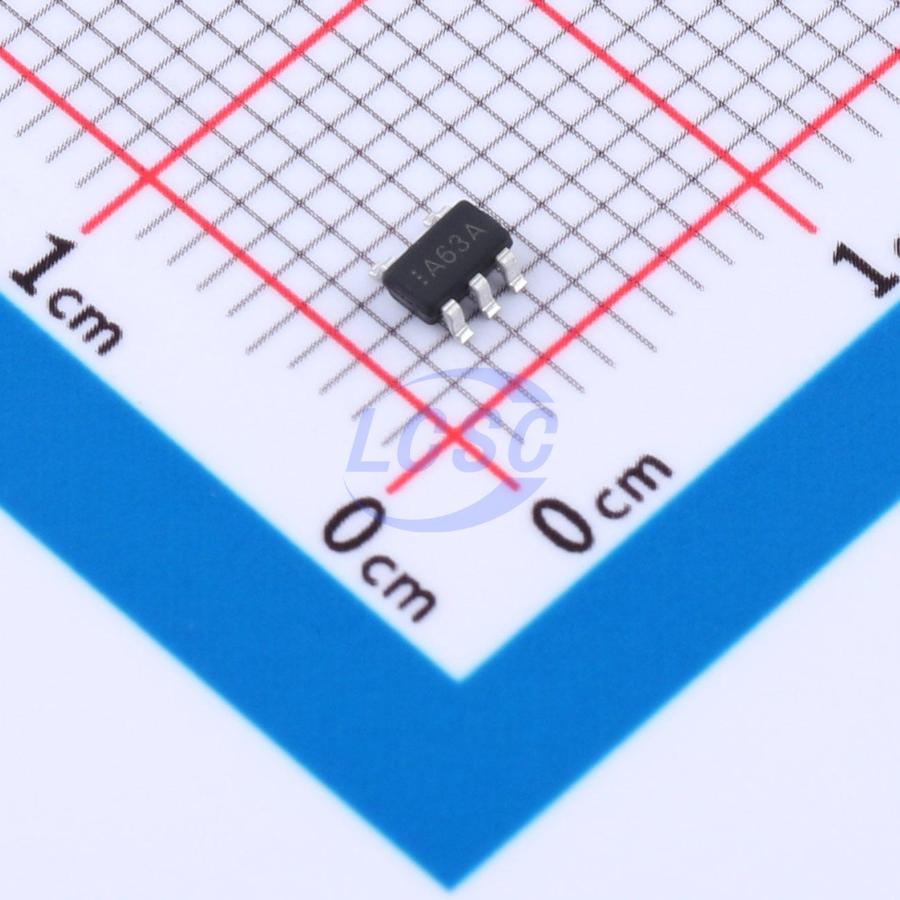

QNHCHIP

QN321

20mA 1 2mV 400V/ms 90dB 20nA 1MHz 500uA SOT-23-5L Instrumentation, Op Amps, Buffer Amps

SOT-23-5LRoHSActive

Manufacturer: QNHCHIP
Manufacturer part #: QN321
Store part #: C53243666
Package / case: SOT-23-5L
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,540 in stock

#C53243666

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
20+	₹4.13	₹82.60
200+	₹3.23	₹646.00
600+	₹2.74	₹1,644.00
3,000+	₹2.43	₹7,290.00
9,000+	₹2.17	₹19,530.00
21,000+	₹2.04	₹42,840.00

Quantity (min 20, multiples of 20)

20 × ₹4.13

₹82.60

excl. GST

₹97.47 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

QN321

₹82.60 for 20 + GST

Specifications

Output Current: 20mA
Number of Channels: 1
Vos - Input Offset Voltage: 2mV
Slew Rate: 400V/ms
Input Offset Current(Ios): 3nA
Operating Temperature: -15℃~+75℃
Common Mode Rejection Ratio(CMRR): 90dB
Ib - Input Bias Current: 20nA
Gain Bandwidth Product: 1MHz
Quiescent Current: 500uA
Single Supply: 3V~32V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.045 g

Overview

The QN321 strikes a balance between performance and economy for low-power systems. It features a high unity-gain bandwidth and a guaranteed slew rate of 0.4V/μs, while drawing only 500μA quiescent current per amplifier (at 5V). The input common-mode range includes ground, enabling operation in both single-supply and dual-supply applications. It also drives large capacitive loads with ease. The QN321 comes in a SOT-23-5L package. Overall, the QN321 is a low-power, wide supply range, high-performance op-amp that can be designed into a wide variety of applications at an affordable price without consuming valuable board space.
