HGSEMIDatasheet (PDF)

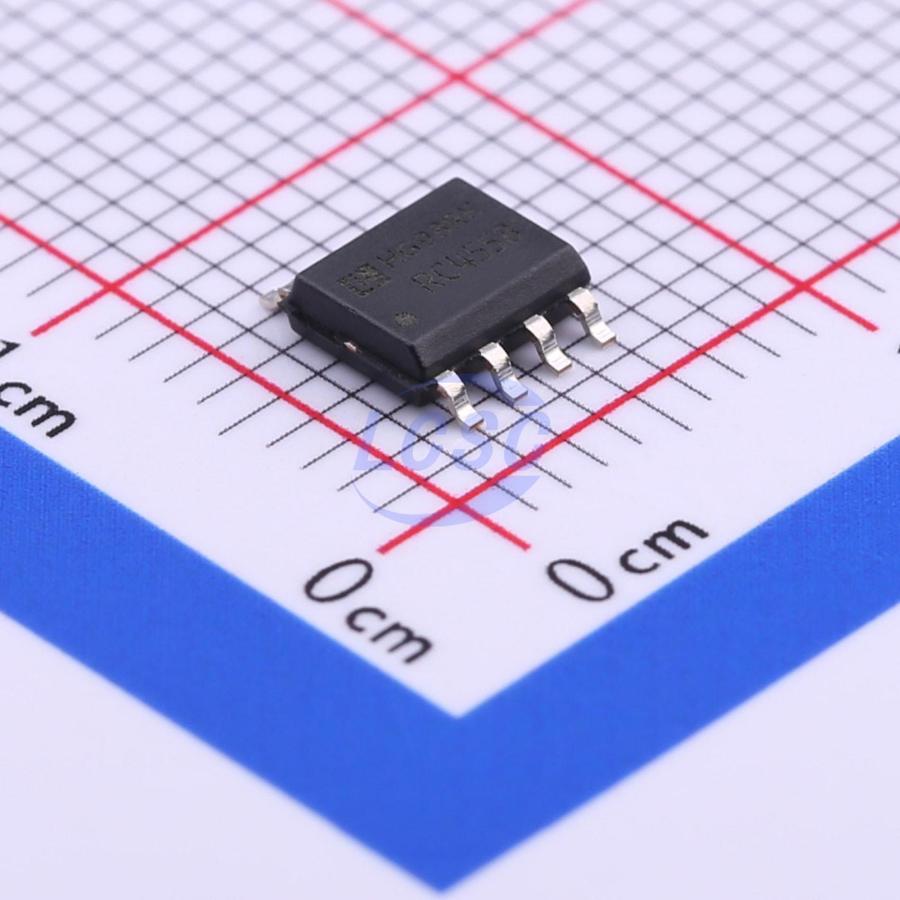

RC4558M/TR
30mA 2 6mV 2.2V/us 500nA 90dB 2.5mA 2.8MHz SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
Dual Operational Amplifier
- Manufacturer
- HGSEMI
- Manufacturer part #
- RC4558M/TR
- Store part #
- C434477
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,420 in stock
#C434477
Stock & price checked 20 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.47 | ₹57.35 |
| 50+ | ₹9.21 | ₹460.50 |
| 150+ | ₹8.07 | ₹1,210.50 |
| 500+ | ₹7.22 | ₹3,610.00 |
| 2,500+ | ₹5.89 | ₹14,725.00 |
| 5,000+ | ₹5.56 | ₹27,800.00 |
5 × ₹11.47
₹57.35
excl. GST
₹67.67 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
RC4558M/TR
₹57.35 for 5 + GST
Specifications
- Output Current
- 30mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 6mV
- Slew Rate
- 2.2V/us
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -20℃~+85℃
- Ib - Input Bias Current
- 500nA
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Quiescent Current
- 2.5mA
- Gain Bandwidth Product
- 2.8MHz
- Dual Supply
- -15V~15V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.221 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | JRC4560M/TR#C41378161HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,500 | ₹20.15 · 2,500 in stock | View |
 | RC4580M/TR#C434475HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,745 | ₹12.62 · 2,745 in stock | View |
 | NE5532M/TR#C434481HGSEMI · SOP-8 | HGSEMI | SOP-8 | 75 | ₹11.85 · 75 in stock | View |
| NJM4580M/TR#C41378163HGSEMI · SOP-8 | HGSEMI | SOP-8 | 3,580 | ₹12.18 · 3,580 in stock | View | |
| NJM4560M/TR#C41378159HGSEMI · SOP-8 | HGSEMI | SOP-8 | 1,835 | ₹19.25 · 1,835 in stock | View | |
