TDSEMICDatasheet (PDF)

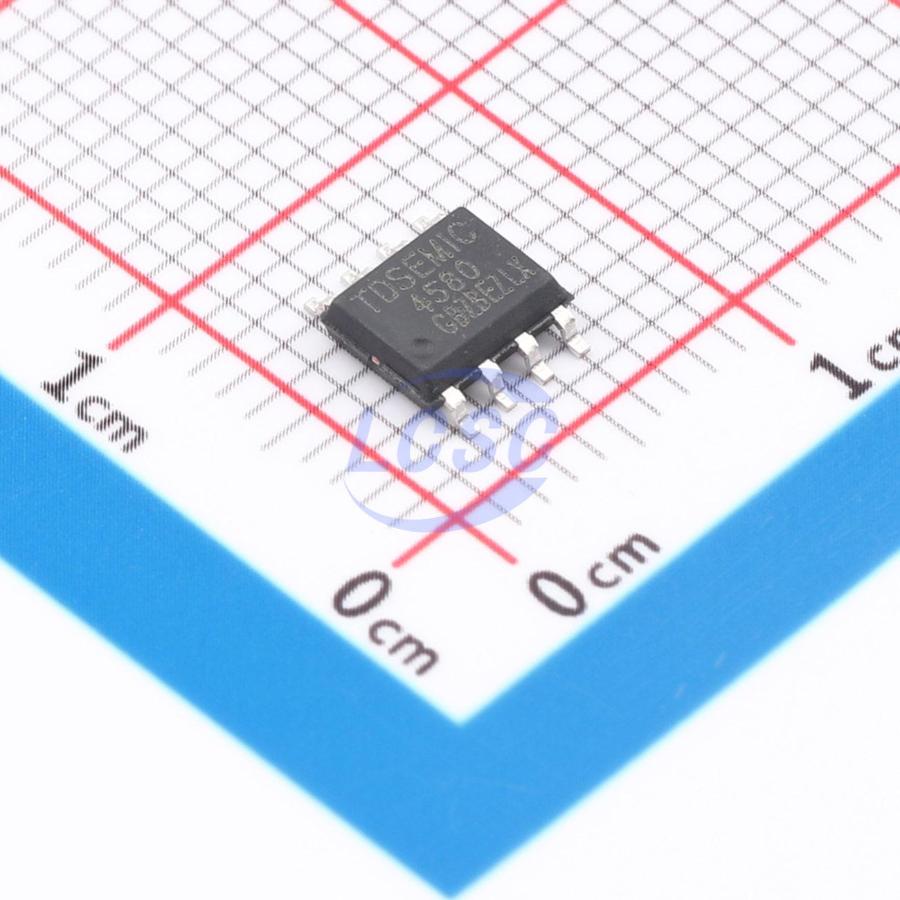

RC4580IDR-TD
120mA 2 300uV 5V/us 500nA 100dB 6mA 10MHz SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
- Manufacturer
- TDSEMIC
- Manufacturer part #
- RC4580IDR-TD
- Store part #
- C53202419
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C53202419
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.57 | ₹72.85 |
| 50+ | ₹11.55 | ₹577.50 |
| 150+ | ₹10.04 | ₹1,506.00 |
| 500+ | ₹8.92 | ₹4,460.00 |
| 2,500+ | ₹8.00 | ₹20,000.00 |
| 4,000+ | ₹7.55 | ₹30,200.00 |
5 × ₹14.57
₹72.85
excl. GST
₹85.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RC4580IDR-TD
₹72.85 for 5 + GST
Specifications
- Output Current
- 120mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 300uV
- Slew Rate
- 5V/us
- Input Offset Current(Ios)
- 200nA
- Operating Temperature
- -20℃~+85℃
- Ib - Input Bias Current
- 500nA
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Quiescent Current
- 6mA
- Gain Bandwidth Product
- 10MHz
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.06 g
Overview
The RC4580IDR-TD is a dual op-amp designed to improve tone control, particularly suited for audio applications. The device features low noise, high gain-bandwidth, high output current, and low distortion. It is well-suited for acoustic electronic components such as audio preamplifiers and active filters, as well as industrial measurement instruments and headphone amplifiers requiring high output current. The device is available in SOP8 and DIP8 packages.
Applications
- Active filters
- Compensation amplifiers
- Audio preamplifiers
- Headphone amplifiers
- Low-voltage handheld electronic instruments
Key features
- Low input noise voltage
- Low distortion: approx. 0.0005%
- Internal ESD protection
- Slew rate: 5 V/μS
- Unity-gain bandwidth: 10MHz
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| NJM4580-TD#C53202420TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 885 | ₹13.56 · 885 in stock | View | |
 | NE5532-TD#C42422055TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 1,470 | ₹13.92 · 1,470 in stock | View |
| LMV722IDR-TD#C51954346TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 80 | ₹29.45 · 80 in stock | View | |
 | JRC4580DR-TD#C50675571TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 2,910 | ₹12.81 · 2,910 in stock | View |
