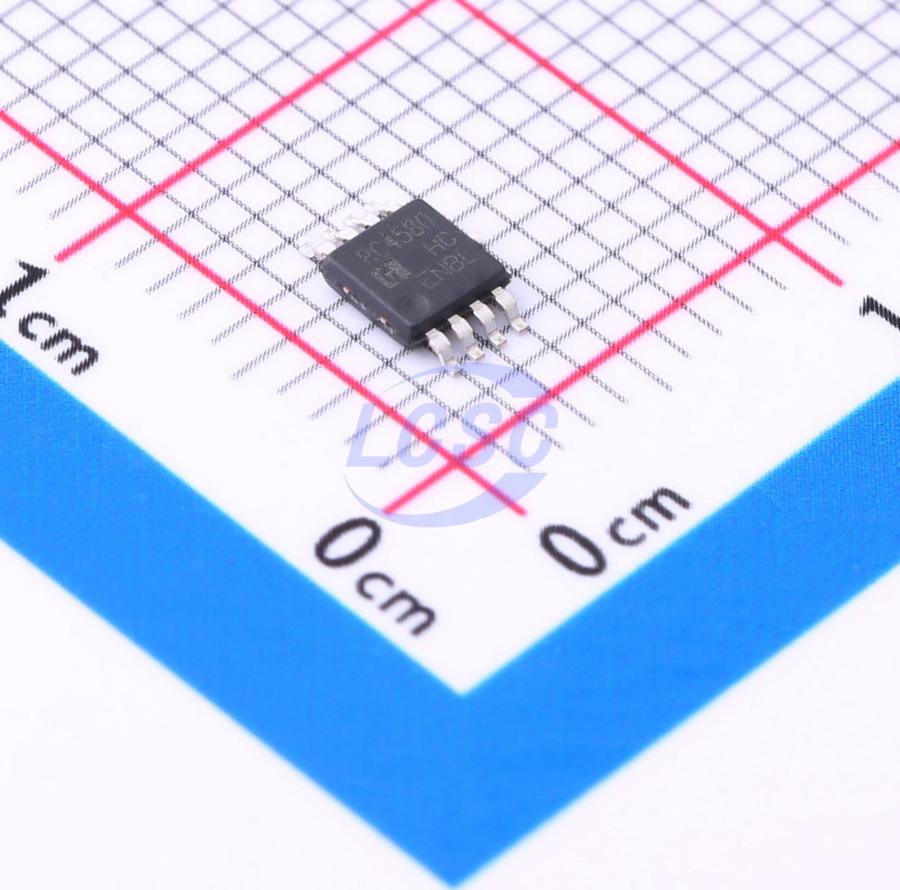

RC4580MM/TR
2 3mV 5V/us 500nA 110dB 6mA 15MHz MSOP-8 Instrumentation, Op Amps, Buffer Amps
MSOP-8RoHSActive
DUAL OPERATIONAL AMPLIEIER
- Manufacturer
- HGSEMI
- Manufacturer part #
- RC4580MM/TR
- Store part #
- C5310809
- Package / case
- MSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,800 in stock
#C5310809
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.08 | ₹70.40 |
| 50+ | ₹11.15 | ₹557.50 |
| 150+ | ₹9.70 | ₹1,455.00 |
| 500+ | ₹8.61 | ₹4,305.00 |
| 3,000+ | ₹7.58 | ₹22,740.00 |
| 6,000+ | ₹7.14 | ₹42,840.00 |
5 × ₹14.08
₹70.40
excl. GST
₹83.07 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RC4580MM/TR
₹70.40 for 5 + GST
Specifications
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 5V/us
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 500nA
- Common Mode Rejection Ratio(CMRR)
- 110dB
- Quiescent Current
- 6mA
- Gain Bandwidth Product
- 15MHz
- Dual Supply
- 2V~16V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.17 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HG4580MM/TR#C5310808HGSEMI · MSOP-8 | HGSEMI | MSOP-8 | 2,285 | ₹14.42 · 2,285 in stock | View |
| NJM4580MM/TR#C41378164HGSEMI · MSOP-8 | HGSEMI | MSOP-8 | 2,190 | ₹14.18 · 2,190 in stock | View | |
| JRC4580MM/TR#C41378166HGSEMI · MSOP-8 | HGSEMI | MSOP-8 | 2,085 | ₹13.56 · 2,085 in stock | View | |
| NJM4560MM/TR#C41378160HGSEMI · MSOP-8 | HGSEMI | MSOP-8 | 2,995 | ₹21.09 · 2,995 in stock | View | |
| JRC4560MM/TR#C41378162HGSEMI · MSOP-8 | HGSEMI | MSOP-8 | 3,000 | ₹21.09 · 3,000 in stock | View | |
