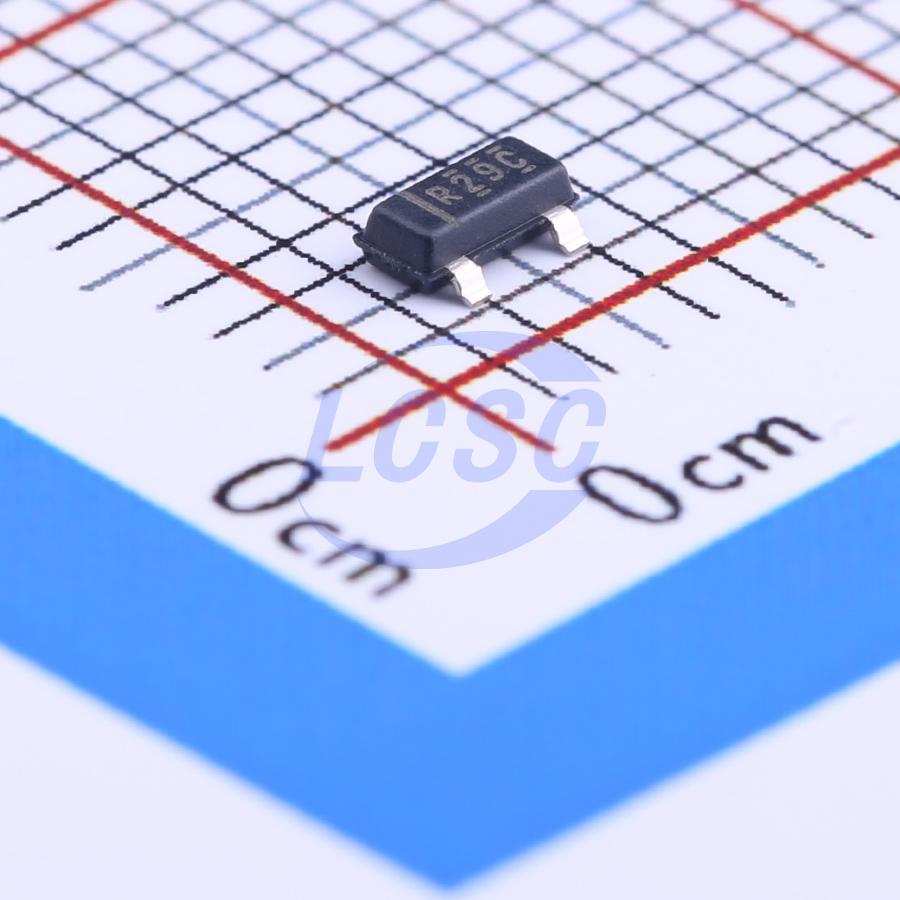

REF2925AIDBZR
2.5V ±2% 2.55V~5.5V 25mA Fixed SOT-23 Voltage Reference RoHS
SOT-23ROHS3 CompliantActive
CMOS Voltage Reference
- Manufacturer
- TI
- Manufacturer part #
- REF2925AIDBZR
- Store part #
- C81848
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,576 in stock
#C81848
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹172.73 | ₹172.73 |
| 10+ | ₹141.44 | ₹1,414.40 |
| 30+ | ₹124.28 | ₹3,728.40 |
| 100+ | ₹102.12 | ₹10,212.00 |
| 500+ | ₹93.43 | ₹46,715.00 |
| 1,000+ | ₹89.74 | ₹89,740.00 |
1 × ₹172.73
₹172.73
excl. GST
₹203.82 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
REF2925AIDBZR
₹172.73 for 1 + GST
Specifications
- Output Voltage
- 2.5V
- Quiescent Current
- 59uA
- Tolerance
- ±2%
- Voltage - Supply
- 2.55V~5.5V
- Reference Type
- Series
- Noise - 1/10Hz to 10Hz
- 28uVp-p
- Output Current
- 25mA
- Operating Temperature
- -40℃~+125℃
- Noise - 10Hz to 10kHz
- 80uVrms
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.05 g
Overview
The REF29xx is a precision, low-power, low-voltage dropout voltage reference family available in a tiny 3‑pin SOT-23 package. The small size and low power consumption (50 µA maximum) of the REF29xx make it ideal for portable and battery-powered applications. The REF29xx does not require a load capacitor, but it is stable with any capacitive load.
Applications
- Portable, Battery-Powered Equipment
- Data Acquisition Systems
- Medical Equipment
- Hand-Held Test Equipment
Key features
- MicroSIZE Package: SOT-23
- Low Dropout: 1 mV
- High Output Current: 25 mA
- Low Temperature Drift: Maximum of 100 ppm/°C
- High Accuracy: 2%
- Low IQ: Maximum of 50 µA
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | REF2925AIDBZT#C2157004TI · SOT-23-3 | TI | SOT-23-3 | 80 | ₹203.81 · 80 in stock | View |
 | GM7200AUJZ-3.0-R7#C55595898GONGMOSEMI · SOT-23 | GONGMOSEMI | SOT-23 | 199 | ₹84.13 · 199 in stock | View |
 | REF3025AIDBZR#C11334TI · SOT-23 | TI | SOT-23 | 16,216 | ₹70.93 · 16,216 in stock | View |
 | REF3025AIDBZT#C96625TI · SOT-23 | TI | SOT-23 | 2,629 | ₹92.56 · 2,629 in stock | View |
 | REF325SOT233#C19078488analogysemi · SOT-23-3 | analogysemi | SOT-23-3 | 5,086 | ₹135.08 · 5,086 in stock | View |
