RUNICDatasheet (PDF)

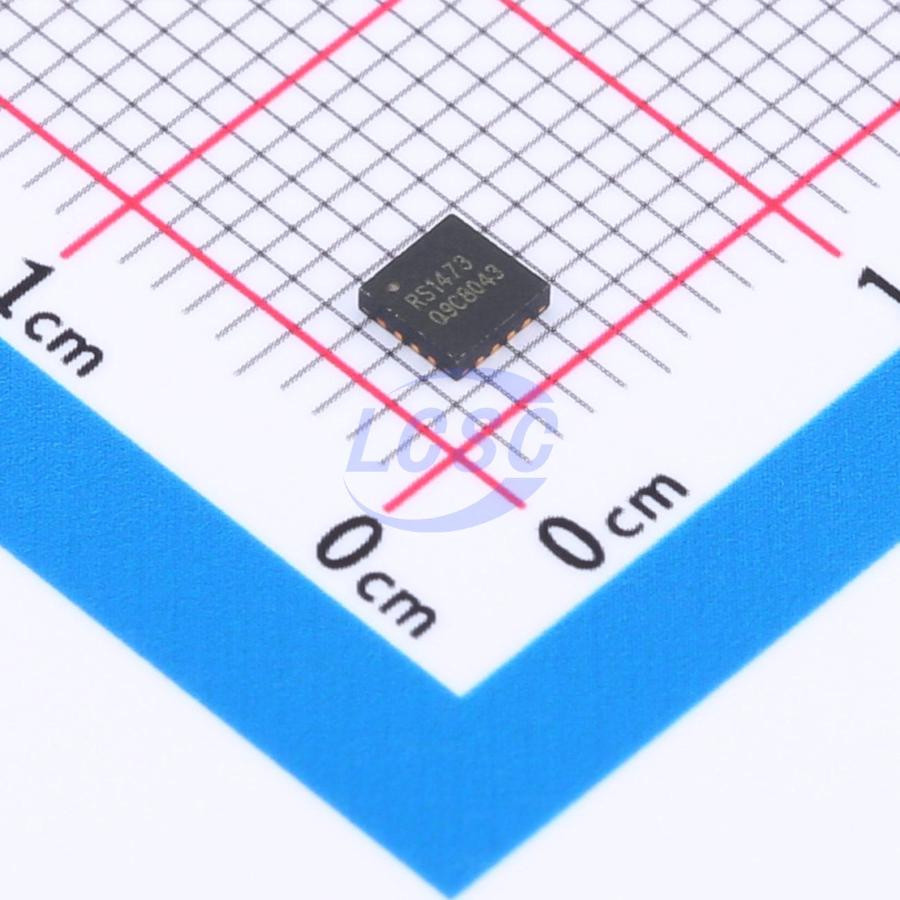

RS1473XTQC16
SPI 2.7V~5.25V QFN-16L(3x3) Analog to Digital Converters (ADC)
QFN-16L(3x3)RoHSActive
14-Bit, 2 MSPS, Dual-Channel, Single-Ended Analog-to-Digital Converters
- Manufacturer
- RUNIC
- Manufacturer part #
- RS1473XTQC16
- Store part #
- C19269210
- Package / case
- QFN-16L(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,297 in stock
#C19269210
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹697.60 | ₹697.60 |
| 10+ | ₹579.84 | ₹5,798.40 |
| 30+ | ₹509.99 | ₹15,299.70 |
| 100+ | ₹439.13 | ₹43,913.00 |
1 × ₹697.60
₹697.60
excl. GST
₹823.17 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
RS1473XTQC16
₹697.60 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Interface
- SPI
- Quiescent Current (Iq)
- 500uA
- Voltage - Supply
- 2.7V~5.25V
- Number of Channels
- 2
- Integral non - linearity
- 2.5LSB
- Voltage Reference
- External
- Clock/Oscillator
- External
- Clock Frequency
- 40MHz
- Features
- Multiplexers
- Resolution(Bits)
- 14;2MHz
- S/N Ratio
- 81dB
- DNL (LSB)
- 0.5LSB
- ADC architecture
- SAR
- Programmable Gain
- Not supported
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.039 g
Overview
The 14-bit, 2MSPS analog-to-digital converter (ADC) offers Single-Ended inputs. The device operates at a 2MSPS sample rate with a standard 16 clock data frame. The device includes a two-channel input multiplexer and a low-power successive approximation register (SAR) ADC with an inherent sample-and-hold (S/H) input stage. It supports a wide analog supply range that allows the full-scale input range to extend to 5 V single-ended. A simple SPI, with a digital supply that can operate as low as 1.65 V, allows for easy interfacing to a wide variety of digital controllers. Automatic power-down can be enabled when operating at slower speeds to dramatically reduce power consumption. It is offered in a leadless QFN3x3-16 package and is specified over a temperature range of -40°C to +125°C.
Applications
- Optical networking
- Sensors Measurements
- Portable Instrumentation
- Medical Instrumentation
- Data Acquisition Systems
- Battery-Powered Equipment
Key features
- Sample Rate: 2 MSPS
- INL 2.5 LSB (MAX)
- Wide Supply Range: Analog: 2.7 V to 5.25 V; Digital: 1.65 V to AVDD
- 14-Bit No Missing Code Resolution
- Auto Power-Down at Lower Speeds
- Two Single-Ended Inputs
- Operating Temperature Range -40°C to 125°C
- SPI-Compatible Interface
- Package: QFN3x3-16
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RS1472XTQC16#C19269209RUNIC · QFN-16L(3x3) | RUNIC | QFN-16L(3x3) | 27 | ₹809.16 · 27 in stock | View |
