RUNIC

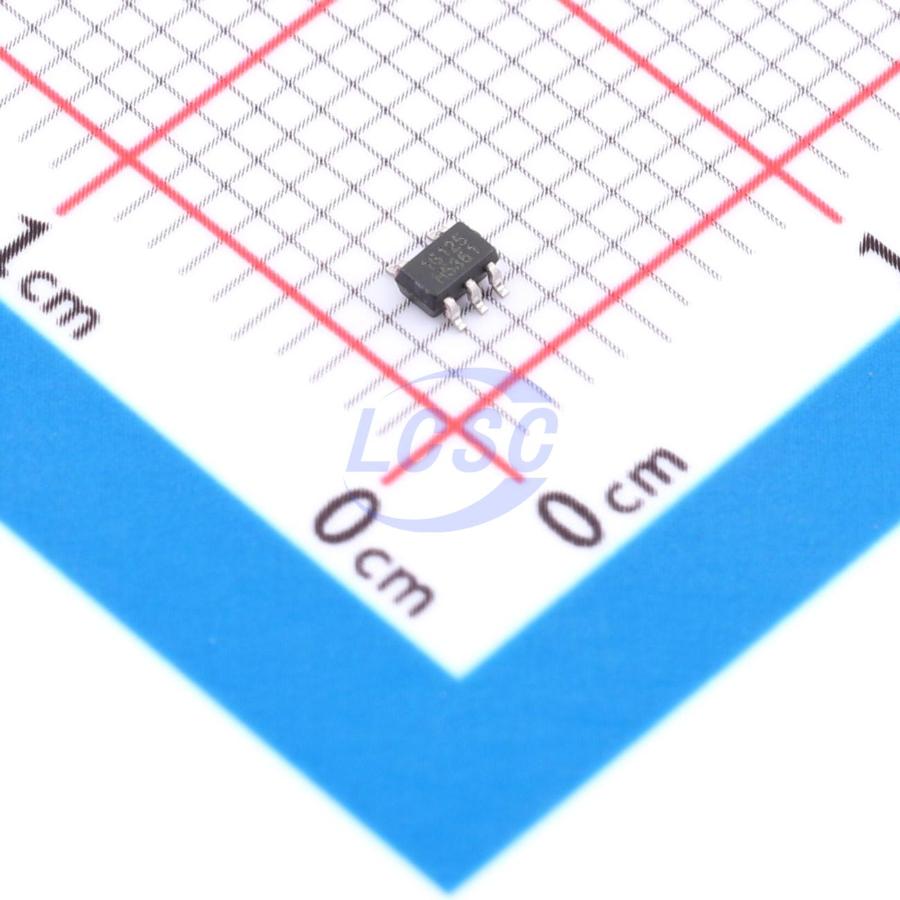

RS1G125XC5-Q1

1.65V~5.5V 1 6ns@3.3V,50pF SC-70-5 Buffers, Drivers, Receivers, Transceivers

SC-70-5RoHSActive

Manufacturer: RUNIC
Manufacturer part #: RS1G125XC5-Q1
Store part #: C42459505
Package / case: SC-70-5
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,295 in stock

#C42459505

Stock & price checked 27 h ago

Quantity	Unit price	Pack price
5+	₹24.24	₹121.20
50+	₹18.79	₹939.50
150+	₹16.46	₹2,469.00
500+	₹13.55	₹6,775.00
3,000+	₹12.78	₹38,340.00
6,000+	₹12.00	₹72,000.00

Quantity (min 5, multiples of 5)

5 × ₹24.24

₹121.20

excl. GST

₹143.02 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

RS1G125XC5-Q1

₹121.20 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Voltage - Supply: 1.65V~5.5V
Output Type: Tri-State
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 10uA
Function: Output enable;Power-off isolation
Current - Output High(IOH): 32mA
Current - Output Low(IOL): 32mA
Channel Type: Unidirectional
Number of Elements: 1
Propagation Delay: 6ns@3.3V,50pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.033 g

Overview

This single buffer is designed for VCC operating voltages from 1.65V to 5.5V. The device is a single line driver with three-state outputs. When the output enable (OE) input is high, the output is disabled. The device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow when the device is powered down. To ensure a high-impedance state during power-up or power-down, OE̅ should be connected to VCC through a pullup resistor whose minimum value is determined by the current-sinking capability of the driver. The device is available in green SOT23-5, SC70-5, and XDFN1X1-6 packages. The operating ambient temperature range is -40°C to 125°C.
