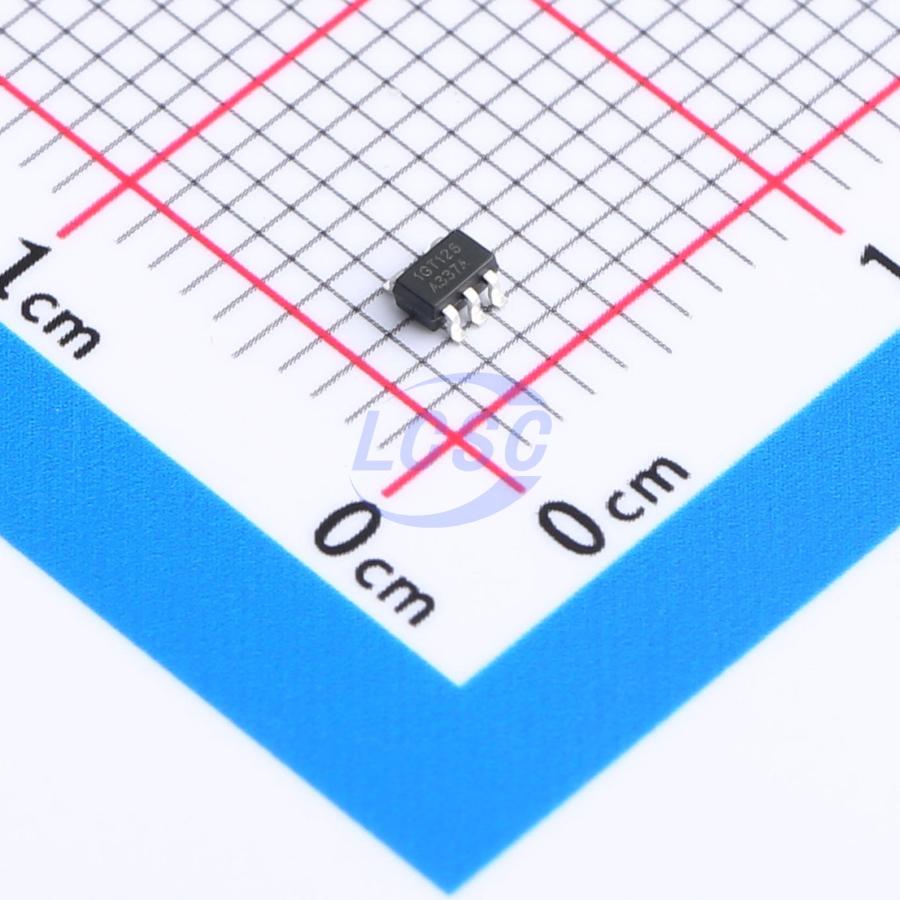

RUNIC

RS1GT126XC5

2V~5.5V 1 1 7.5ns@5V,50pF SC-70-5 Buffers, Drivers, Receivers, Transceivers

SC-70-5RoHSActive

Single Bus Buffer Gate With 3-State Output

Manufacturer: RUNIC
Manufacturer part #: RS1GT126XC5
Store part #: C20611893
Package / case: SC-70-5
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,665 in stock

#C20611893

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹7.78	₹38.90
50+	₹6.42	₹321.00
150+	₹5.07	₹760.50
500+	₹4.73	₹2,365.00

Quantity (min 5, multiples of 5)

5 × ₹7.78

₹38.90

excl. GST

₹45.90 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

RS1GT126XC5

₹38.90 for 5 + GST

Specifications

Voltage - Supply: 2V~5.5V
Output Type: Tri-State
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 10uA
Function: Output enable;Power-off isolation
Current - Output High(IOH): 32mA
Current - Output Low(IOL): 32mA
Number of Bits per Element: 1
Channel Type: Unidirectional
Number of Elements: 1
Propagation Delay: 7.5ns@5V,50pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.028 g

Overview

The single buffer is designed for 2V to 5.5V VCC operation. The device is single line driver with 3-state output. The output is disabled when the output-enable input is low. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. To ensure the high-impedance state during power up or power down, OE should be tied to GND through a pulldown resistor, the minimum value of the resistor is determined by the current-sourcing capability of the driver. It is available in Green SOT23-5 and SC70-5(SOT353) packages. It operates over an ambient temperature range of -40°C to +125°C.

Applications

AV Receiver
Cable Modem Termination Systems
Digital Picture Frame (DPF)
High-Speed Data Acquisition and Generation
Motor Controls: High-Voltage
Personal Navigation Device (GPS)
Portable Media Player
Video Communication Systems

Key features

Operating Voltage Range: 2V to 5.5V
Low Power Consumption: 1μA (Max)
Operating Temperature Range: -40°C to +125°C
Inputs Are TTL-Voltage Compatible
±32mA Output Drive at Vcc = 5.0V
Latch-up Performance Exceeds 100mA
Micro SIZE PACKAGES: SOT23-5, SC70-5(SOT353)
