RUNICDatasheet (PDF)

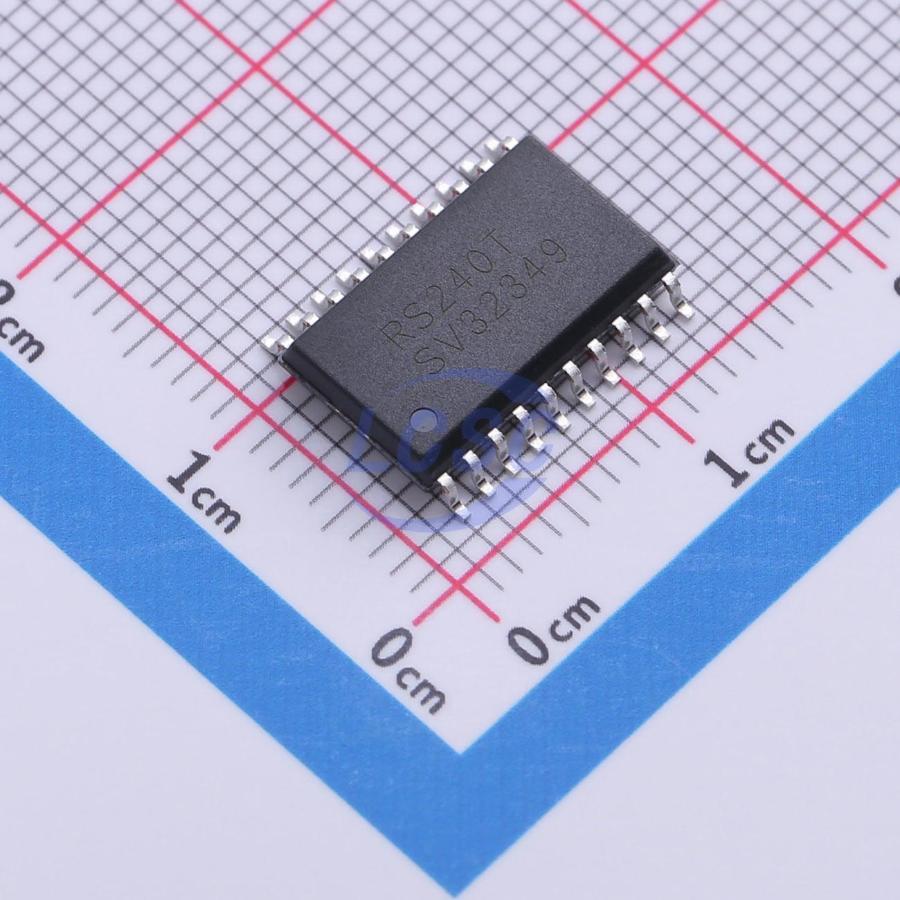

RS240TXS20
4.5V~5.5V 4 2 5ns@5V,15pF SOP-20 Buffers, Drivers, Receivers, Transceivers
SOP-20RoHSActive
Octal Buffers and Line Drivers With 3-State Outputs
- Manufacturer
- RUNIC
- Manufacturer part #
- RS240TXS20
- Store part #
- C22390268
- Package / case
- SOP-20
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,250 in stock
#C22390268
Stock & price checked 47 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.15 | ₹160.75 |
| 50+ | ₹28.07 | ₹1,403.50 |
| 150+ | ₹26.33 | ₹3,949.50 |
| 1,500+ | ₹24.14 | ₹36,210.00 |
| 3,000+ | ₹23.18 | ₹69,540.00 |
| 4,500+ | ₹22.60 | ₹1,01,700.00 |
5 × ₹32.15
₹160.75
excl. GST
₹189.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
RS240TXS20
₹160.75 for 5 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 24mA
- Voltage - Supply
- 4.5V~5.5V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 4
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 40uA
- Propagation Delay
- 5ns@5V,15pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.78 g
Overview
The RS240T devices are organized as two 4-bit buffers/drivers with separate output-enable (OE(overline)) inputs. When OE(overline) is low, the device passes inverted data from the A inputs to the Y outputs. When OE(overline) is high, the outputs are in the high-impedance state. VCC supporting operating voltage from 4.5V to 5.5V.
Applications
- Servers
- Smart Grids
- Network Switches
- Infotainment Surveillance Cameras
Key features
- Power-Supply Range: 4.5V to 5.5V
- 3-State Outputs Drive Bus Lines
- Low Power Consumption: 40μA(Icc(Max))
- TTL Input are Compatible
- ±24mA Output Drive at 5V
- Low Input Current of 2μμ Max
- Extended Temperature: -40°C to 125°C
- Micro SIZE PACKAGES: TSSOP20, SOP20
