RUNICDatasheet (PDF)

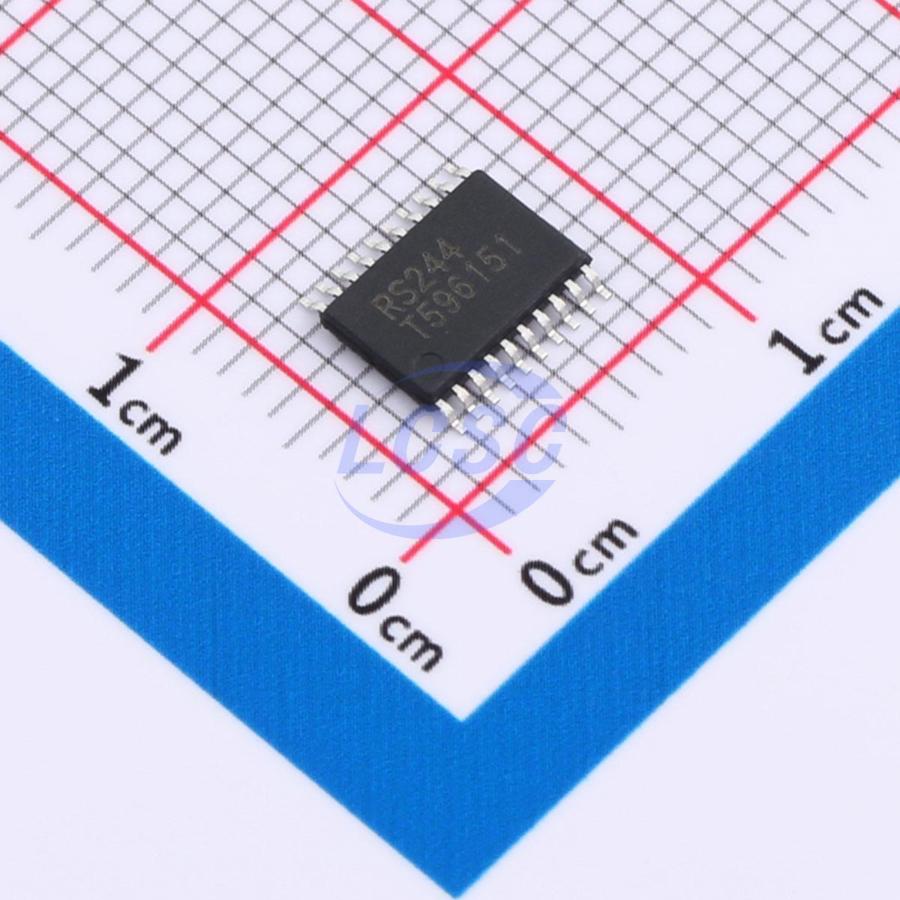

RS244YTSS20
1.65V~5.5V 4 2 7.1ns@5V,15pF TSSOP-20 Buffers, Drivers, Receivers, Transceivers
TSSOP-20RoHSActive
Octal Buffer/Driver With 3-State Outputs
- Manufacturer
- RUNIC
- Manufacturer part #
- RS244YTSS20
- Store part #
- C2931600
- Package / case
- TSSOP-20
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,805 in stock
#C2931600
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.60 | ₹168.00 |
| 50+ | ₹23.76 | ₹1,188.00 |
| 150+ | ₹19.54 | ₹2,931.00 |
5 × ₹33.60
₹168.00
excl. GST
₹198.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RS244YTSS20
₹168.00 for 5 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 5uA
- Function
- Power-off isolation;Output enable
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 4
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Propagation Delay
- 7.1ns@5V,15pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.172 g
Overview
This RS244 is an octal non-inverting buffer/driver with 3- state outputs. The 3-state outputs are controlled by the output enable inputs 1̅O̅̅E̅ and 2̅O̅̅E̅. A HIGH on ̅O̅̅E̅ causes the outputs to assume a high impedance OFF-state. Vcc supporting operating voltage from 1.65 V to 5.5 V. To ensure the high-impedance state during power up or power down, ̅O̅̅E̅ should be tied to Vcc through a pullup resistor, the minimum value of the resistor is determined by the current-sinking capability of the driver.
Applications
- Handset
- Smartphone
- Tablet
- Desktop PC
Key features
- Power-Supply Range: 1.65V to 5.5V
- Isolation: If Vcc is at GND, Both Ports are in the High-Impedance State
- IOFF: Supports Partial-Power-Down Mode Operation
- Extended Temperature: -40°C to ±125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RS244SXTSS20#C42459541RUNIC · TSSOP-20 | RUNIC | TSSOP-20 | 975 | ₹24.04 · 975 in stock | View |
