RUNICDatasheet (PDF)

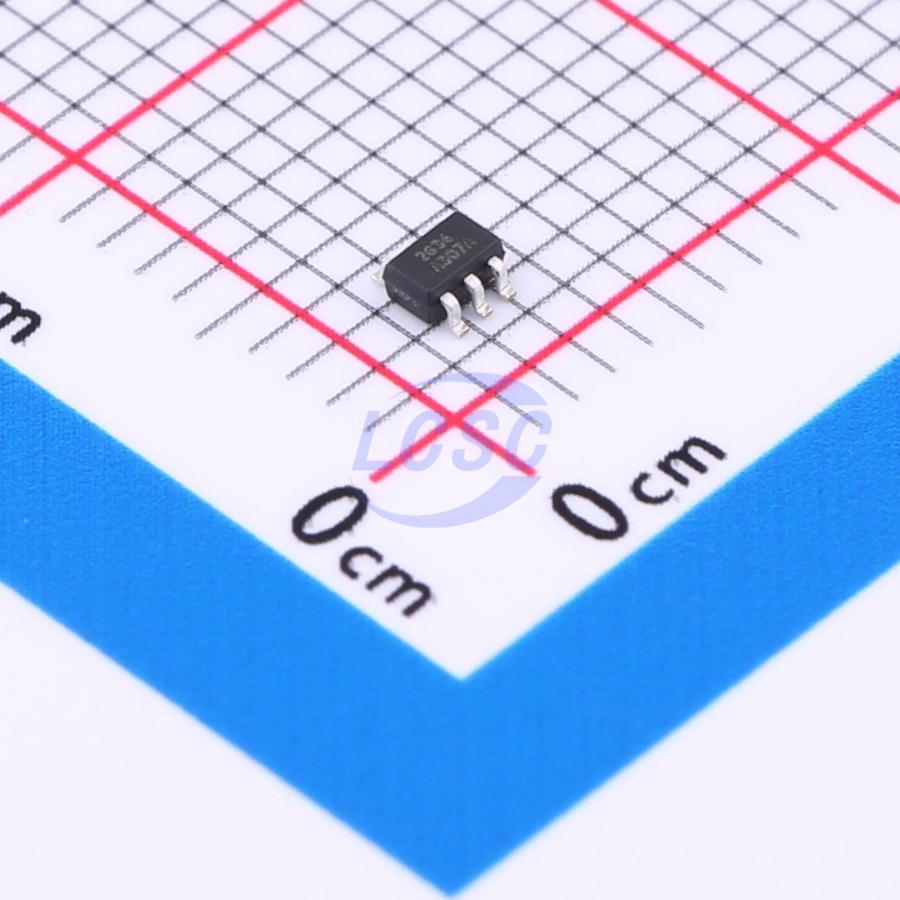

RS2G34XC6
1.65V~5.5V 1 2 4.2ns@3.3V,50pF SC-70-6 Buffers, Drivers, Receivers, Transceivers
SC-70-6RoHSActive
Dual Buffer Gate
- Manufacturer
- RUNIC
- Manufacturer part #
- RS2G34XC6
- Store part #
- C20611894
- Package / case
- SC-70-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,560 in stock
#C20611894
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.33 | ₹121.65 |
| 50+ | ₹18.18 | ₹909.00 |
| 150+ | ₹15.11 | ₹2,266.50 |
| 500+ | ₹12.81 | ₹6,405.00 |
5 × ₹24.33
₹121.65
excl. GST
₹143.55 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS2G34XC6
₹121.65 for 5 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Function
- Power-off isolation;Level shifting
- Current - Output High(IOH)
- 24mA
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Propagation Delay
- 4.2ns@3.3V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.017 g
Overview
The RS2G34 dual buffer gate is designed for 1.65V to 5.5V VCC operation. The RS2G34 device performs the Boolean function Y = A in positive logic. The CMOS device has high output drive while maintaining low static power dissipation over a broad VCC operating range. The RS2G34 is available in Green SOT23-6 and SOT363(SC70-6) packages. It operates over an ambient temperature range of -40°C to +125°C.
Applications
- AC Receiver
- Blu-ray Players and Home Theaters
- Desktops or Notebook PCs
- Digital Video Cameras (DVC)
- Mobile Phones
- Personal Navigation Device (GPS)
- Portable Media Player
Key features
- Operating Voltage Range: 1.65V to 5.5V
- Low Power Consumption: 1μA (Max)
- Operating Temperature Range: -40°C to ±125°C
- Inputs Accept Voltage to 5.5V
- High Output Drive: ±24mA at VCC = 3.0V
- Ioff Supports Partial-Power-Down Mode Operation
- Micro SIZE PACKAGES: SOT23-6, SOT363(SC70-6)
