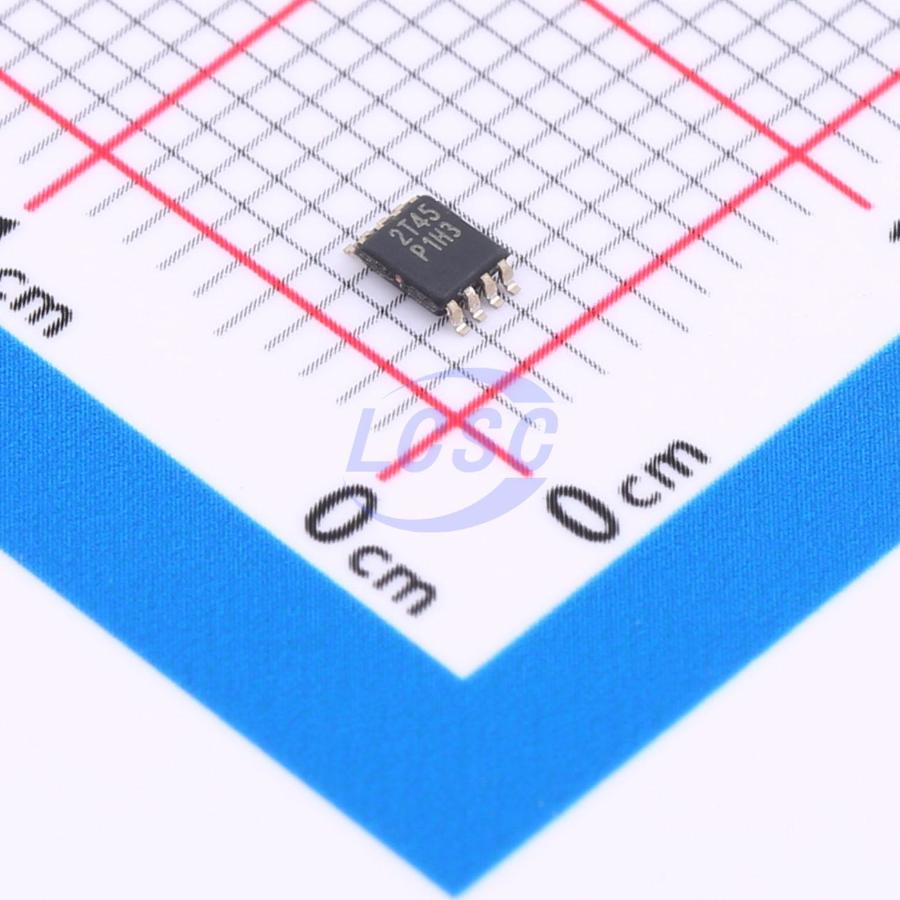

RS2T45XVS8

The RS2T45 is 2-bit non-inverting bus transceiver uses two separate configurable power supply rails. The A port and DIR are designed to track VCCA, which supporting operating voltages from 1.65V to 5.5V, and the B port supporting operating voltages from 1.65V to 5.5V while it tracks the VCCB supply. This allows for universal low-voltage bidirectional translation between any of the 1.8V, 2.5V, 3.3V and 5V voltage nodes. The RS2T45 is designed for asynchronous communication between two data buses. The logic levels of the direction control (DIR) input activate either the B-port outputs or the A-port outputs. The device transmits data from the A bus to the B bus when the B-port outputs are activated and from the B bus to the A bus when the A-port outputs are activated. The input circuitry is always active on both A and B ports and must have a logic HIGH or LOW level applied to prevent excess ICC and ICCZ. The RS2T45 is available in Green SOT23-8, MSOP-8 and VSSOP-8 packages. It operates over an ambient temperature range of -40°C to +125°C.

Applications

• Industrial
• Enterprise
• Telecom, such as VOIP Personal electronic

Key features

• Control Input threshold Referenced to VCCA Voltage
• Power-Supply Range: VCCA and VCCB: 1.65V to 5.5V
• VCC Isolation: If Either VCC is at GND, Both Ports are in the High-Impedance State
• Low power consumption, 4uA Max
• Output drives up to ±24mA @ 3.0V
• No Power-Supply Sequencing Required: Either VCCA or VCCB can be Ramped First
• IOFF: Supports Partial-Power-Down Mode Operation
• Extended Temperature: -40°C to +125°C
