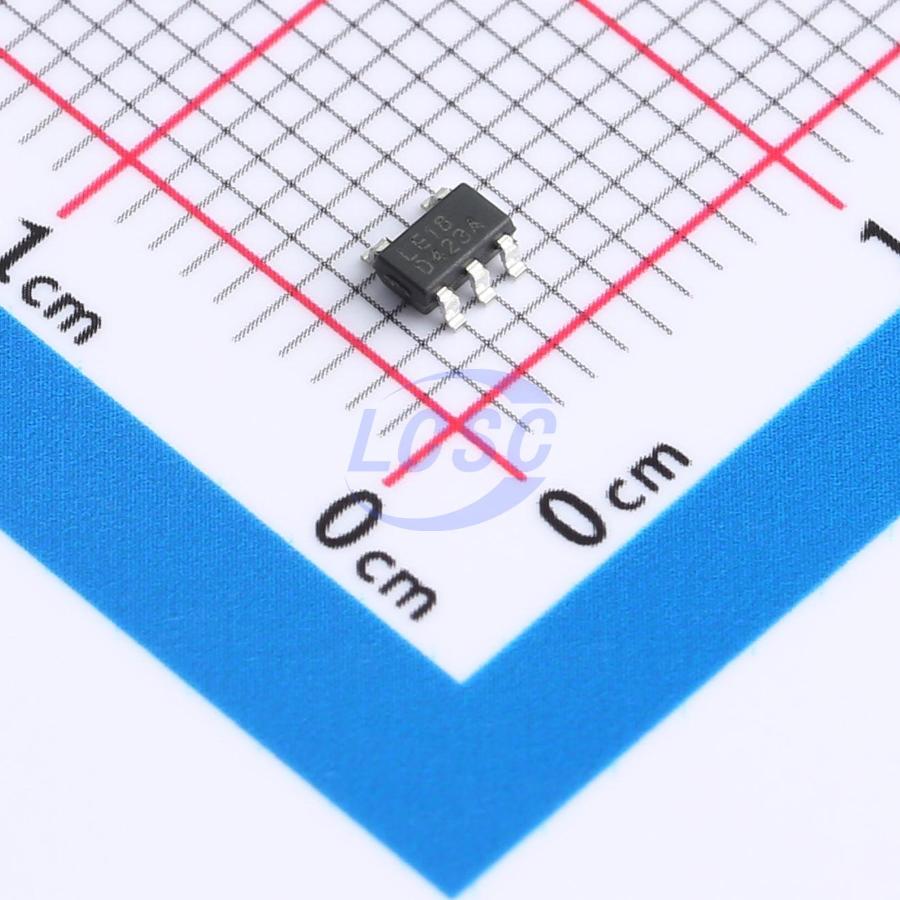

RS3217-1.8XF5
1.8V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
500mA, Low Quiescent Current, Low-Noise, High PSRR, Low-Dropout Linear Regulator
- Manufacturer
- RUNIC
- Manufacturer part #
- RS3217-1.8XF5
- Store part #
- C42459579
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,135 in stock
#C42459579
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.79 | ₹58.95 |
| 50+ | ₹9.33 | ₹466.50 |
| 150+ | ₹8.08 | ₹1,212.00 |
| 500+ | ₹7.16 | ₹3,580.00 |
| 3,000+ | ₹6.42 | ₹19,260.00 |
| 6,000+ | ₹6.05 | ₹36,300.00 |
5 × ₹11.79
₹58.95
excl. GST
₹69.56 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS3217-1.8XF5
₹58.95 for 5 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 16uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 500mA
- Features
- Enable control;Output discharge;Thermal shutdown;Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.077 g
Overview
The RS3217 is a low-noise LDO that can supply up to 500mA output current. Designed to meet the requirements of RF and analog circuits, the RS3217 device provides low noise, high PSRR, low quiescent current, and low line or load transient response figures. RS3217 is stable with a 1.0μF ceramic input and output capacitor. Using the new innovative design techniques, the RS3217 offers class-leading noise performance without a noise bypass capacitor. RS3217 is available with fixed output voltages from 1.2V to 4.5V. RS3217 is offered in a small SOT23-5 and XDFN1X1 - 4 packages, which is ideal for small form factor portable equipment.
Applications
- Smart Phones and Cellular Phones
- PDAs
- MP3/MP4 Player
- Digital Still Cameras
- Portable instrument
Key features
- Input voltage range: 1.9 V to 5.5 V
- Output voltage range: 1.2 V to 4.5 V
- Up to 500mA load current
- Very low IQ: 16μA (typical)
- Very high PSRR: 81dB at 1kHz
- Ultra low noise: 13uVrms at 1.8V output
- No noise bypass capacitor required
- Excellent load/line transient response
- Short circuit protection is typical 55mA
- With auto discharge function
- Output Voltage Accuracy: ±1%/±1.5%
- Micro Size Packages: SOT23-5, XDFN1X1-4
