RUNICDatasheet (PDF)

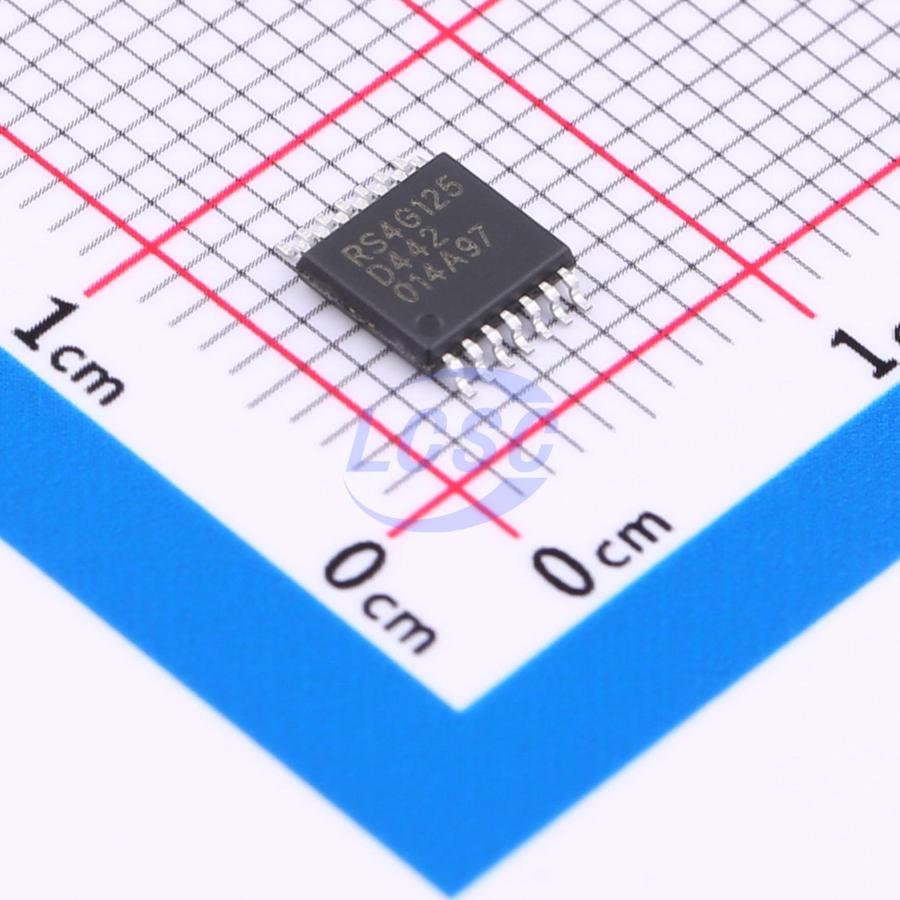

RS4G125XQ-Q1
1.65V~5.5V 1 4 2.1ns@5V,15pF TSSOP-14 Buffers, Drivers, Receivers, Transceivers
TSSOP-14RoHSActive
Quadruple Bus Buffer Gate With 3-State Outputs
- Manufacturer
- RUNIC
- Manufacturer part #
- RS4G125XQ-Q1
- Store part #
- C42459606
- Package / case
- TSSOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,955 in stock
#C42459606
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.98 | ₹199.90 |
| 50+ | ₹31.39 | ₹1,569.50 |
| 150+ | ₹27.72 | ₹4,158.00 |
| 500+ | ₹23.13 | ₹11,565.00 |
| 2,500+ | ₹21.08 | ₹52,700.00 |
| 4,000+ | ₹19.86 | ₹79,440.00 |
5 × ₹39.98
₹199.90
excl. GST
₹235.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RS4G125XQ-Q1
₹199.90 for 5 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Function
- Power-off isolation;Output enable
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Number of Elements
- 4
- Propagation Delay
- 2.1ns@5V,15pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.184 g
Overview
Applications
- Qualified for Automotive Applications
- Increase Digital Signal Drive Strength
- Infotainment ADAS HEV/EV Inverter
Key features
- RS4G125-Q1 AEC-Q100 Qualification is Ongoing
- Operating Voltage Range: 1.65V to 5.5V
- Low Power Consumption: 1μA (Max)
- Operating Temperature Range: -40°C to 125°C
- Inputs Accept Voltage to 5.5V
- ±24mA Output Drive at Vcc = 3.0V
- Micro Size Packages: TSSOP14
