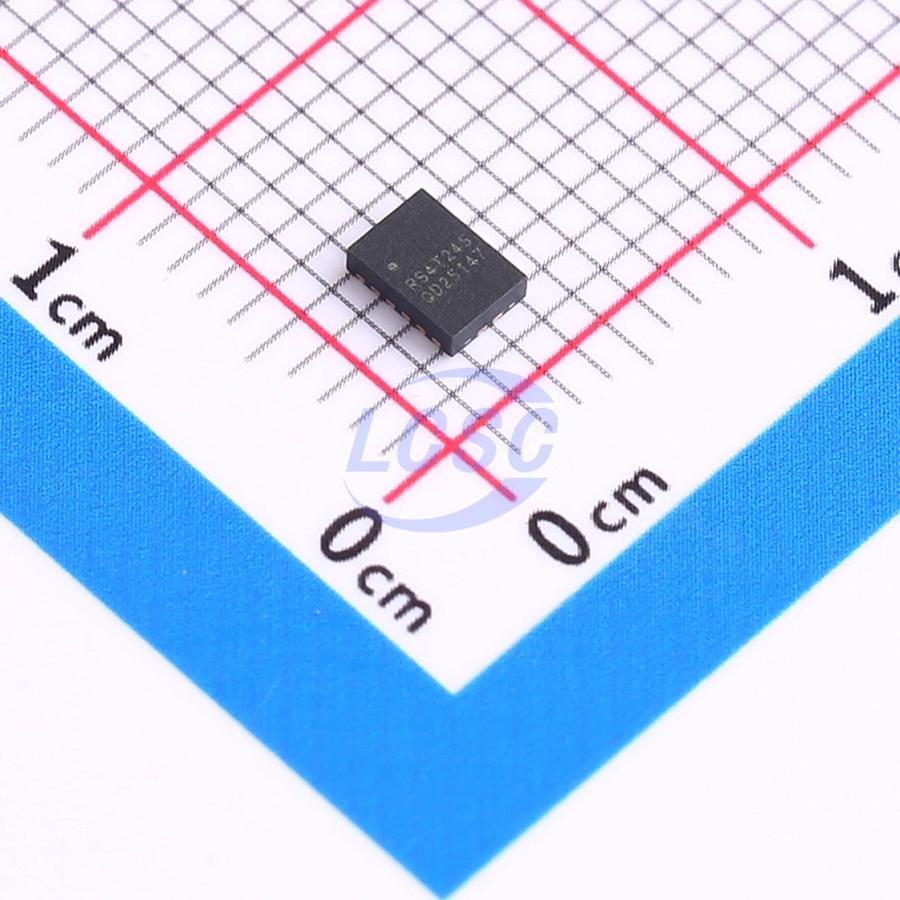

RUNIC

RS4T245XTQW16-Q1

1.65V~5.5V 4 1 QFN-16(2.5x3.5) Buffers, Drivers, Receivers, Transceivers

QFN-16(2.5x3.5)RoHSActive

4-Bit Dual-Supply Bus Transceiver with Configurable Voltage Translation and 3-State Output

Manufacturer: RUNIC
Manufacturer part #: RS4T245XTQW16-Q1
Store part #: C42459622
Package / case: QFN-16(2.5x3.5)
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,968 in stock

#C42459622

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
1+	₹82.78	₹82.78
10+	₹66.06	₹660.60
30+	₹57.58	₹1,727.40
100+	₹49.11	₹4,911.00
500+	₹46.50	₹23,250.00
1,000+	₹43.90	₹43,900.00

Quantity (min 1)

1 × ₹82.78

₹82.78

excl. GST

₹97.68 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 5,000 per reel

RS4T245XTQW16-Q1

₹82.78 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Voltage - Supply: 1.65V~5.5V
Output Type: Tri-State
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 20uA
Function: Power-off isolation;Level shifting;Output enable
Current - Output High(IOH): 32mA
Current - Output Low(IOL): 32mA
Number of Bits per Element: 4
Channel Type: Bidirectional
Number of Elements: 1

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.087 g

Overview

This 4-bit non-inverting bus transceiver is a bidirectional voltage-level translator and can be used to establish digital switching compatibility between mixed-voltage systems. It uses two separate configurable power-supply rails, Both VCCA and VCCB supporting operating voltages from 1.65 V to 5.5 V; A ports, DIR and OE(overline) tracks the VCCA supply and B ports tracks the VCCB supply. This allows the support of both lower and higher logic signal levels while providing bidirectional translation capabilities between any of the 1.8V, 2.5V, 3.3V and 5.5V voltage nodes. The RS4T245-Q1 is designed for asynchronous communication between two data buses. The logic levels of the direction-control (DIR) input and the output-enable (OE(overline)) input activate either the B-port outputs or the A-port outputs or place both output ports into the high-impedance mode. The device transmits data from the A bus to the B bus when the B-port outputs are activated, and from the B bus to the A bus when the A-port outputs are activated. The input circuitry on both A and B ports is always active and must have a logic HIGH or LOW level applied to prevent excess ICC and ICCZ. This device is fully specified for partial-power-down applications using IOFF. The IOFF circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. The VCC isolation feature ensures that if either VCC input is at GND, all outputs are in the high-impedance state. To ensure the high-impedance state during power up or power down, OE(overline) should be tied to VCC through a pullup resistor, the minimum value of the resistor is determined by the current-sinking capability of the driver. The RS4T245-Q1 is designed so that the control pins (DIR and OE(overline)) are supplied by VCCA. It operates over an ambient temperature range of -40°C to +125°C.

Applications

Automotive Infotainment
Advance Driver Assistance Systems (ADAS)
Telematics
Navigation Systems Cluster

Key features

Qualified for Automotive Applications
AEC-Q100 Qualified with the Grade 1
Control Inputs VIH/VIL Levels are Referenced to VCCA Voltage
Power-Supply Range: VCCA and VCCB: 1.65V to 5.5V
VCC Isolation: If Either VCC is at GND, Both Ports are in the High-Impedance State
IOFF: Supports Partial-Power-Down Mode Operation
Extended Temperature: -40°C to +125°C
