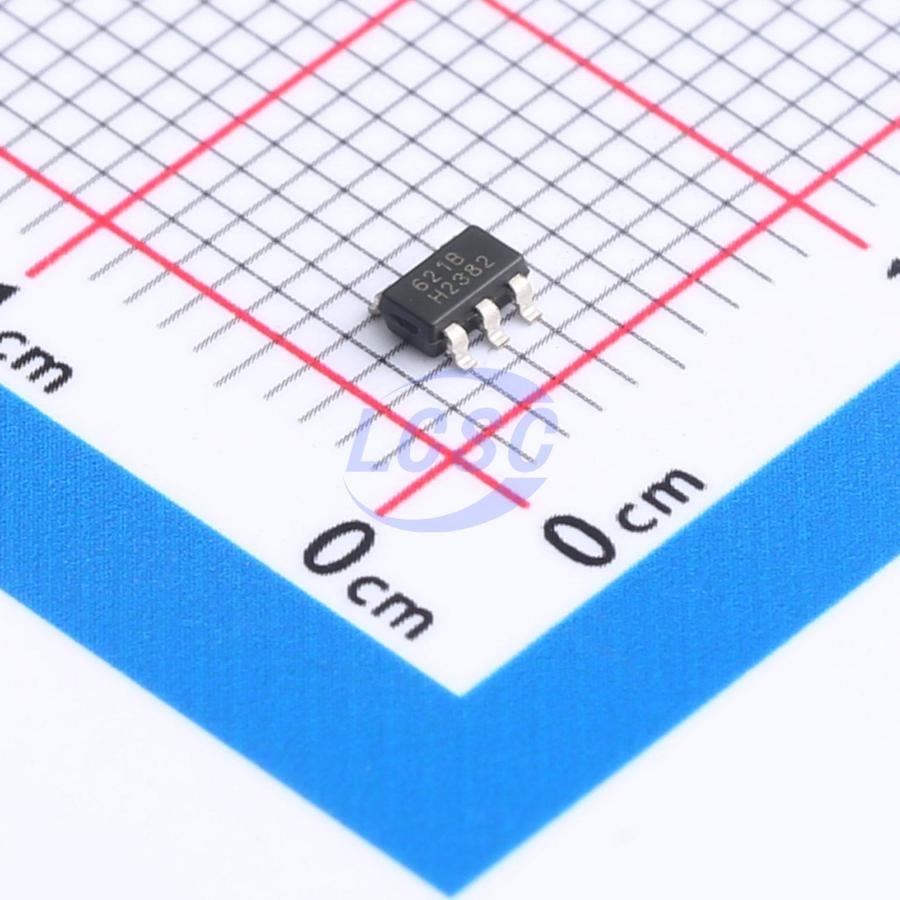

RS621BXF-Q1

70mA 1 300uV 4.3V/us 10pA 94dB 625uA 7MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-5ROHS CompliantActive

7MHz, Rail-to-Rail I/O CMOS Operational Amplifier

Manufacturer: RUNIC
Manufacturer part #: RS621BXF-Q1
Store part #: C7570382
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,985 in stock

#C7570382

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹31.21	₹156.05
50+	₹20.67	₹1,033.50

Quantity (min 5, multiples of 5)

5 × ₹31.21

₹156.05

excl. GST

₹184.14 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

RS621BXF-Q1

₹156.05 for 5 + GST

Specifications

Output Current: 70mA
Number of Channels: 1
Vos - Input Offset Voltage: 300uV
Slew Rate: 4.3V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 10pA
Common Mode Rejection Ratio(CMRR): 94dB
Input Offset Voltage Drift(Vos TC): 2.3uV/℃
Quiescent Current: 625uA
Gain Bandwidth Product: 7MHz
Features: Built-in compensation
Input Voltage Noise Density: 13nV/√Hz@1kHz
Dual Supply: 1.25V~2.75V;-2.75V~-1.25V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.5V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.027 g

Overview

The RS62X-Q1 families of products offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (7MHz) and slew rate of 4.3V/μs. The op-amps are unity gain stable and feature an ultra-low input bias current. The devices are ideal for sensor interfaces, active filters and portable applications. The RS62X-Q1 families of operational amplifiers are specified at the full temperature range of -40°C to +125°C under single or dual power supplies of 2.5V to 5.5V.

Applications

SENSORS
PHOTODIODE AMPLIFICATION
ACTIVE FILTERS
TEST EQUIPMENT DRIVING A/D CONVERTERS

Key features

Qualified for Automotive Applications
AEC-Q100 Qualified with the Grade 1
HIGH GAIN BANDWIDTH: 7MHz
RAIL-TO-RAIL INPUT AND OUTPUT ±0.3mV Typical Vos
INPUT VOLTAGE RANGE: -0.1V to +5.68 with Vs = 5.5V
SUPPLY RANGE: +2.5V to +5.5V
SPECIFIED UP TO ±125°C
Micro SIZE PACKAGES: SOT23-5, SOIC-8, MSOP8, TDFN2×2 - 8L, SOIC-14(SOP14), TSSOP14
