RUNICDatasheet (PDF)

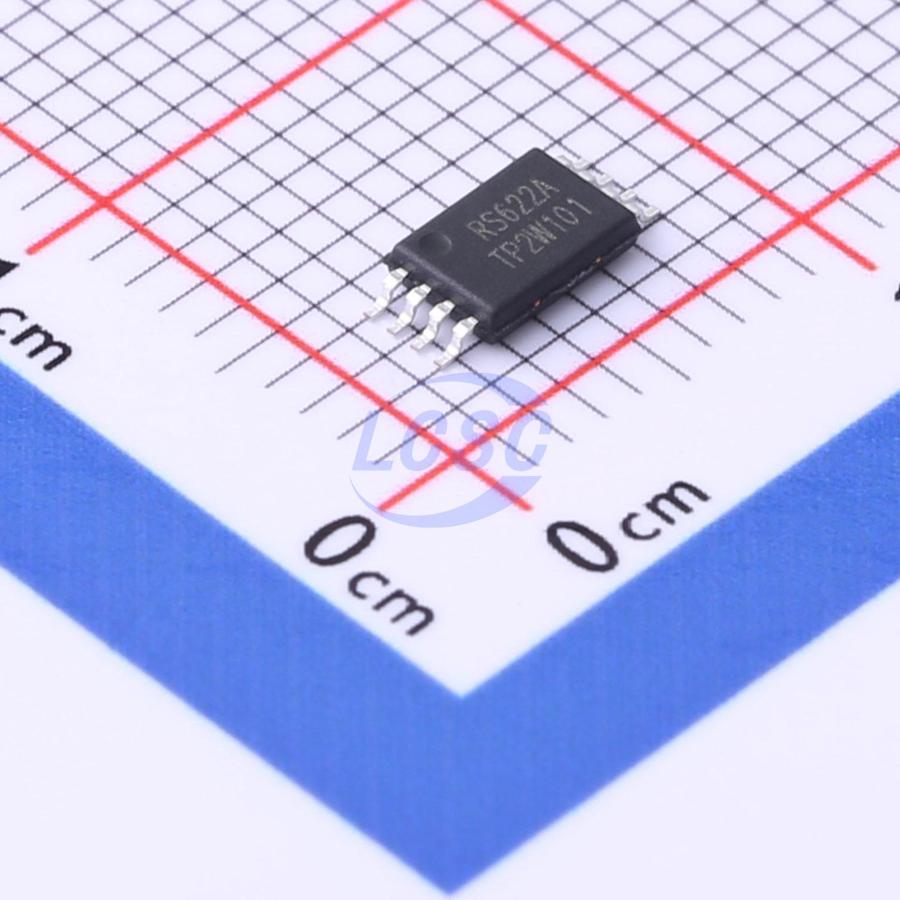

RS622AXQ
180mA 1 700uV 3.7V/us 1pA 92dB 750uA 7MHz Rail-to-Rail Input, Rail-to-Rail Output TSSOP-8 Instrumentation, Op Amps, Buffer Amps
TSSOP-8RoHSActive
7MHz, Rail-to-Rail I/O CMOS Operational Amplifier
- Manufacturer
- RUNIC
- Manufacturer part #
- RS622AXQ
- Store part #
- C2762827
- Package / case
- TSSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,910 in stock
#C2762827
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.42 | ₹192.10 |
| 50+ | ₹28.68 | ₹1,434.00 |
| 150+ | ₹24.52 | ₹3,678.00 |
| 500+ | ₹19.32 | ₹9,660.00 |
5 × ₹38.42
₹192.10
excl. GST
₹226.68 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RS622AXQ
₹192.10 for 5 + GST
Specifications
- Output Current
- 180mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 700uV
- Slew Rate
- 3.7V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 92dB
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 750uA
- Gain Bandwidth Product
- 7MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 11nV/√Hz@1kHz
- Dual Supply
- -2.75V~-1.25V;1.25V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.145 g
Overview
The RS622A families of products offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (7MHz) and slew rate of 3.7V/us. The op-amps are unity gain stable and feature an ultra-low input bias current. The devices are ideal for sensor interfaces, active filters and portable applications. The RS622A families of operational amplifiers are specified at the full temperature range of -40°C to +125°C under single or dual power supplies of 2.5V to 5.5V.
Applications
- SENSORS
- PHOTODIODE AMPLIFICATION
- ACTIVE FILTERS
- TEST EQUIPMENT DRIVING A/D CONVERTERS
Key features
- HIGH GAIN BANDWIDTH: 7MHz RAIL-TO-RAIL INPUT AND OUTPUT 0.7mV Typical Vos INPUT VOLTAGE RANGE: -0.1V to +5.68 with Vs = 5.5V
- SUPPLY RANGE: +2.5V to +5.5V
- SPECIFIED UP TO ±125°C
