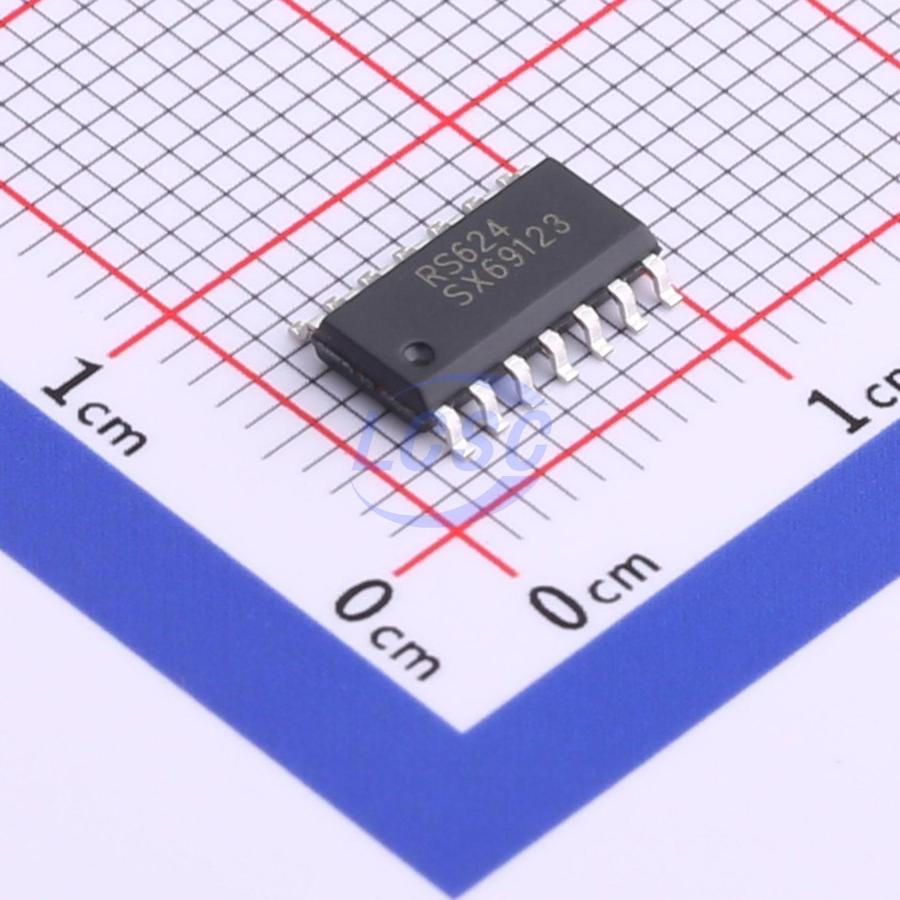

RS624XP

50mA Four channels 700uV 3.7V/us 1pA 92dB 7MHz 600uA Rail-to-Rail Input, Rail-to-Rail Output SOIC-14 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-14ROHS3 CompliantActive

7MHz, Rail-to-Rail I/O CMOS Operational Amplifier

Manufacturer: RUNIC
Manufacturer part #: RS624XP
Store part #: C694364
Package / case: SOIC-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,594 in stock

#C694364

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹85.65	₹85.65
10+	₹64.14	₹641.40
30+	₹54.67	₹1,640.10
100+	₹43.05	₹4,305.00

Quantity (min 1)

1 × ₹85.65

₹85.65

excl. GST

₹101.07 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

RS624XP

₹85.65 for 1 + GST

Specifications

Output Current: 50mA
Number of Channels: Four channels
Vos - Input Offset Voltage: 700uV
Slew Rate: 3.7V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 92dB
Input Offset Voltage Drift(Vos TC): 2uV/℃
Gain Bandwidth Product: 7MHz
Quiescent Current: 600uA
Features: Built-in compensation;Reverse-phase input protection;EMI filtering/RF suppression
Input Voltage Noise Density: 11nV/√Hz@1kHz
Dual Supply: -2.75V~-1.25V;1.25V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.5V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.263 g

Overview

The RS62X families of products offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (7MHz) and slew rate of 3.7V/us. The op-amps are unity gain stable and feature an ultra-low input bias current. The devices are ideal for sensor interfaces, active filters and portable applications. The RS621S, RS622S include a shutdown mode. Under logic control, the amplifiers can be switched from normal operation to a standby current that is less than 1uA. The RS62X families of operational amplifiers are specified at the full temperature range of -40°C to +125°C under single or dual power supplies of 2.5V to 5.5V.
