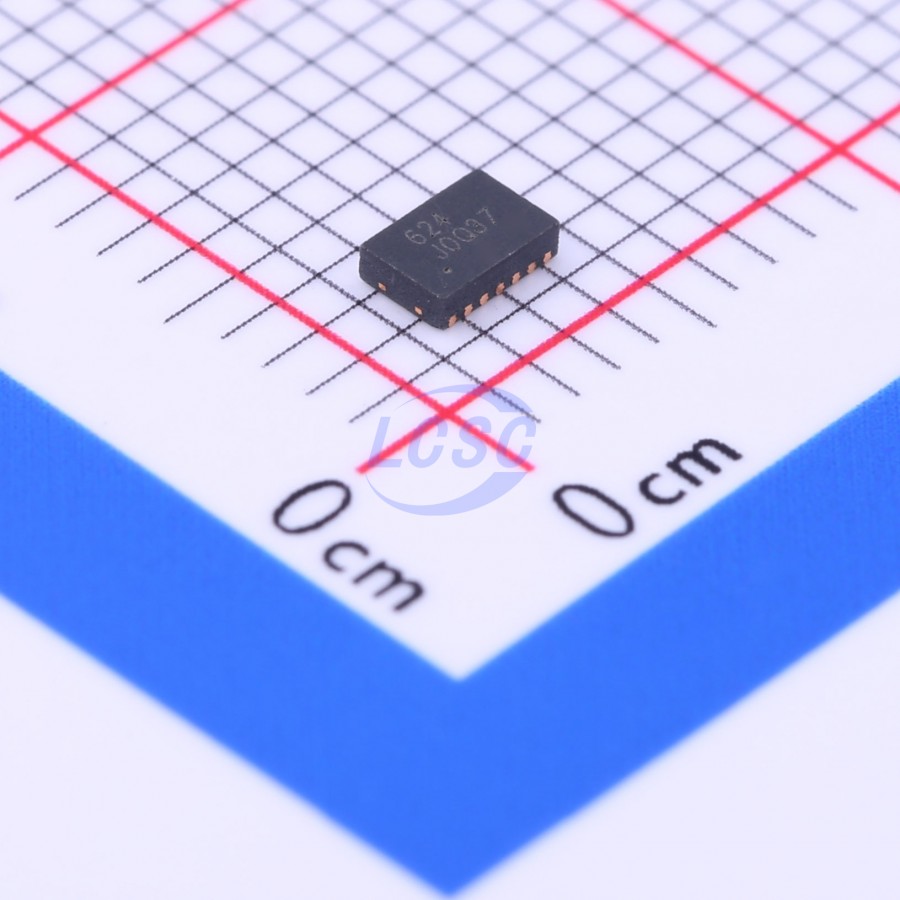

RS624XTDB14

50mA 4 700uV 3.7V/us 10pA 92dB 600uA 7MHz Rail-to-Rail Input, Rail-to-Rail Output TDFN-14-EP(2x3) Instrumentation, Op Amps, Buffer Amps

TDFN-14-EP(2x3)RoHSActive

7MHz, Rail-to-Rail I/O CMos Operational Amplifier

Manufacturer: RUNIC
Manufacturer part #: RS624XTDB14
Store part #: C255451
Package / case: TDFN-14-EP(2x3)
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,930 in stock

#C255451

Stock & price checked 38 h ago

Quantity	Unit price	Pack price
5+	₹86.58	₹432.90
50+	₹64.83	₹3,241.50
150+	₹55.25	₹8,287.50
500+	₹43.50	₹21,750.00

Quantity (min 5, multiples of 5)

5 × ₹86.58

₹432.90

excl. GST

₹510.82 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

RS624XTDB14

₹432.90 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 50mA
Number of Channels: 4
Vos - Input Offset Voltage: 700uV
Slew Rate: 3.7V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 10pA
Common Mode Rejection Ratio(CMRR): 92dB
Input Offset Voltage Drift(Vos TC): 3uV/℃
Quiescent Current: 600uA
Gain Bandwidth Product: 7MHz
Input Voltage Noise Density: 11nV/√Hz@1kHz
Dual Supply: -2.75V~-1.25V;1.25V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.5V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.06 g

Overview

The RS62X families of products offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (7MHz) and slew rate of 3.7V/us. The op-amps are unity gain stable and feature an ultra-low input bias current. The devices are ideal for sensor interfaces, active filters and portable applications. The RS621S, RS622S include a shutdown mode. Under logic control, the amplifiers can be switched from normal operation to a standby current that is less than 1uA. The RS62X families of operational amplifiers are specified at the full temperature range of -40°C to +125°C under single or dual power supplies of 2.5V to 5.5V.
