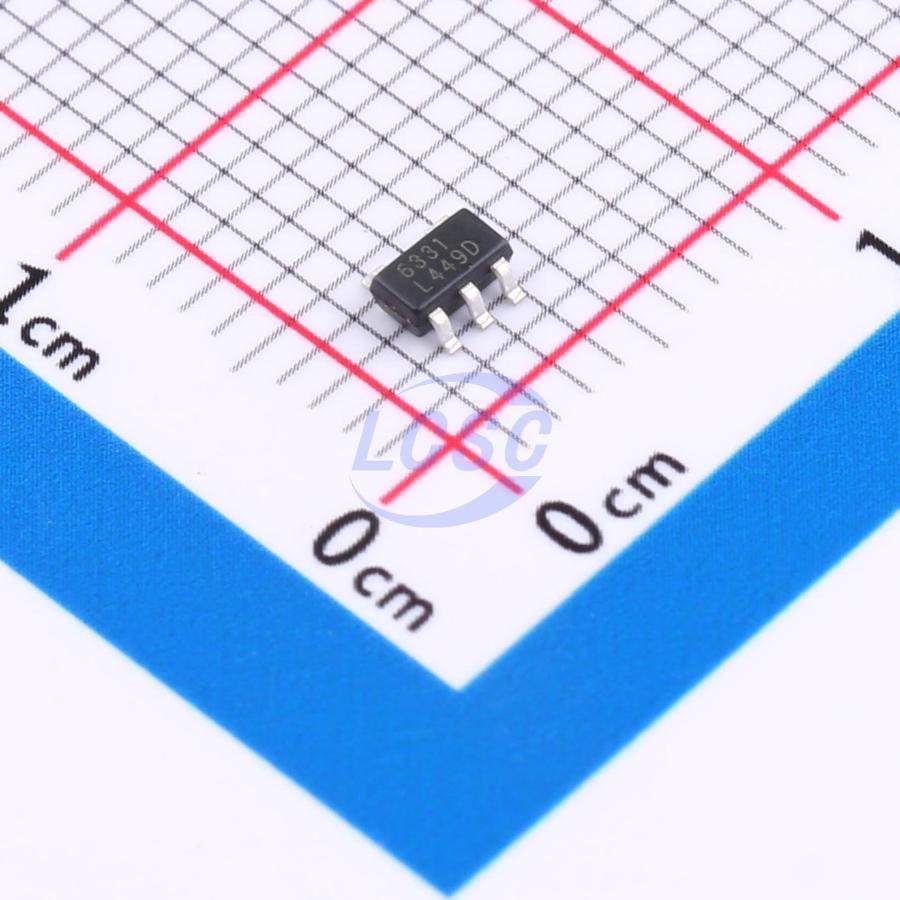

RS6331XF

55mA 1 600uV 500V/ms 1pA 90dB 58uA 1.1MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps

SOT-23-5RoHSActive

1.1MHz, Rail-to-Rail I/O CMOS Operational Amplifier

Manufacturer: RUNIC
Manufacturer part #: RS6331XF
Store part #: C255462
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

6,680 in stock

#C255462

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹29.87	₹149.35
50+	₹21.12	₹1,056.00
150+	₹17.37	₹2,605.50

Quantity (min 5, multiples of 5)

5 × ₹29.87

₹149.35

excl. GST

₹176.23 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

RS6331XF

₹149.35 for 5 + GST

Specifications

Output Current: 55mA
Number of Channels: 1
Vos - Input Offset Voltage: 600uV
Slew Rate: 500V/ms
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 90dB
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 58uA
Gain Bandwidth Product: 1.1MHz
Input Voltage Noise Density: 22nV/√Hz@1kHz
Dual Supply: -2.75V~-1.25V;1.25V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.5V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.06 g

Overview

The RS6331, RS6332, RS6334, RS6331S, RS6332S families of products offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (1.1MHz) and slew rate of 0.5V/us. The op-amps are unity gain stable and feature an ultra-low input bias current. The devices are ideal for sensor interfaces, active filters and portable applications. The RS6331S, RS6332S include a shutdown mode. Under logic control, the amplifiers can be switched from normal operation to a standby current that is less than 1uA. The RS6331, RS6332, RS6334, RS6331S, RS6332S families of operational amplifiers are specified at the full temperature range of -40°C to +125°C under single or dual power supplies of 2.5V to 5.5V.

Applications

SENSORS
PHOTODIODE AMPLIFICATION
ACTIVE FILTERS
TEST EQUIPMENT DRIVING A/D CONVERTERS

Key features

HIGH GAIN BANDWIDTH: 1.1MHz
RAIL-TO-RAIL INPUT AND OUTPUT
0.6mv Typical Vos
INPUT VOLTAGE RANGE: -0.1V to +5.68 with Vs = 5.5V
SUPPLY RANGE: +2.5V to +5.5V
SHUTDOWN: RS6331S/RS6332S
SPECIFIED UP TO +125°C
MicroSIZE PACKAGES: SOT23-5, SOT23-6
