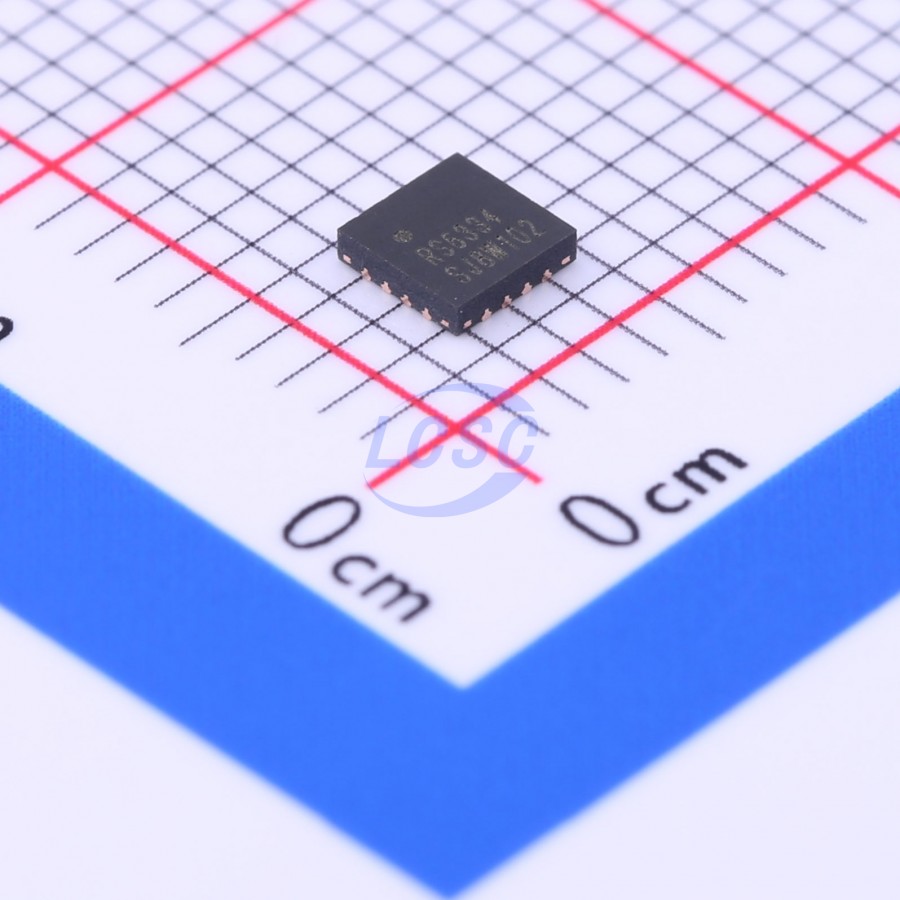

RS6334XTQC16

55mA 4 600uV 500V/ms 1pA 90dB 80uA 1.1MHz Rail-to-Rail Input, Rail-to-Rail Output TQFN-16L(3x3) Instrumentation, Op Amps, Buffer Amps

TQFN-16L(3x3)RoHSActive

1.1MHz, Rail-to-Rail I/O CMOS Operational Amplifier

Manufacturer: RUNIC
Manufacturer part #: RS6334XTQC16
Store part #: C255460
Package / case: TQFN-16L(3x3)
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,620 in stock

#C255460

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹48.57	₹242.85
50+	₹34.48	₹1,724.00
150+	₹28.19	₹4,228.50

Quantity (min 5, multiples of 5)

5 × ₹48.57

₹242.85

excl. GST

₹286.56 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

RS6334XTQC16

₹242.85 for 5 + GST

Specifications

Output Current: 55mA
Number of Channels: 4
Vos - Input Offset Voltage: 600uV
Slew Rate: 500V/ms
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 90dB
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 80uA
Gain Bandwidth Product: 1.1MHz
Input Voltage Noise Density: 22nV/√Hz@1kHz
Dual Supply: -2.75V~-1.25V;1.25V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.5V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.1 g

Overview

The RS6331, RS6332, RS6334, RS6331S, RS6332S families of products offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (1.1MHz) and slew rate of 0.5V/us. The op-amps are unity gain stable and feature an ultra-low input bias current. The devices are ideal for sensor interfaces, active filters and portable applications. The RS6331S, RS6332S include a shutdown mode. Under logic control, the amplifiers can be switched from normal operation to a standby current that is less than 1uA. The RS6331, RS6332, RS6334, RS6331S, RS6332S families of operational amplifiers are specified at the full temperature range of -40°C to +125°C under single or dual power supplies of 2.5V to 5.5V.
