RUNIC

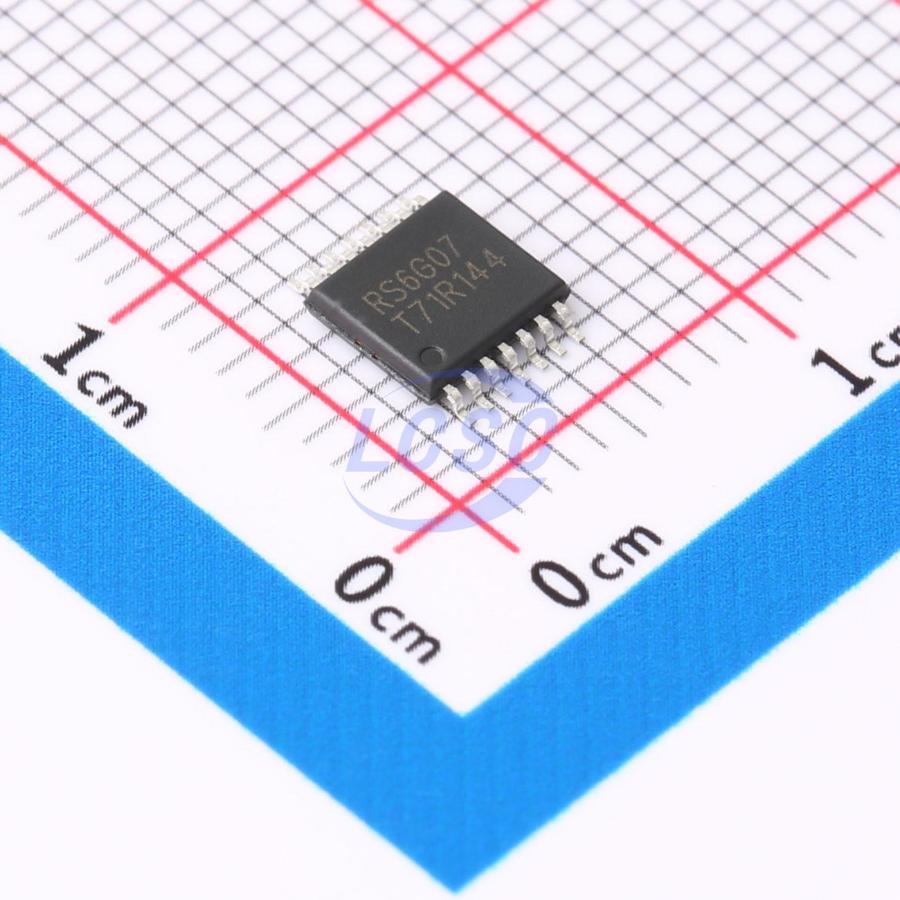

RS6G07XQ

1.65V~5.5V 6 1 4.2ns@3.3V,50pF TSSOP-14 Buffers, Drivers, Receivers, Transceivers

TSSOP-14RoHSActive

6-channel Buffer and Driver with Open-Drain Outputs

Manufacturer: RUNIC
Manufacturer part #: RS6G07XQ
Store part #: C5372598
Package / case: TSSOP-14
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,895 in stock

#C5372598

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹30.26	₹151.30
50+	₹22.60	₹1,130.00
150+	₹19.30	₹2,895.00
500+	₹15.21	₹7,605.00

Quantity (min 5, multiples of 5)

5 × ₹30.26

₹151.30

excl. GST

₹178.53 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

RS6G07XQ

₹151.30 for 5 + GST

Specifications

Function: Power-off isolation
Current - Output High(IOH): 24mA
Voltage - Supply: 1.65V~5.5V
Output Type: Open-drain
Current - Output Low(IOL): 24mA
Number of Bits per Element: 6
Channel Type: Unidirectional
Number of Elements: 1
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 10uA
Propagation Delay: 4.2ns@3.3V,50pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.104 g

Overview

The RS6G07 6-channel buffer and driver is designed for 1.65V to 5.5V VCC operation. The RS6G07 device is open drain and can be connected to other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions. The device is fully specified for partial-powerdown applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. The RS6G07 is available in Green SOIC-14(SOP14) and TSSOP-14 packages. It operates over an ambient temperature range of -40°C to +125°C.
