RUNICDatasheet (PDF)

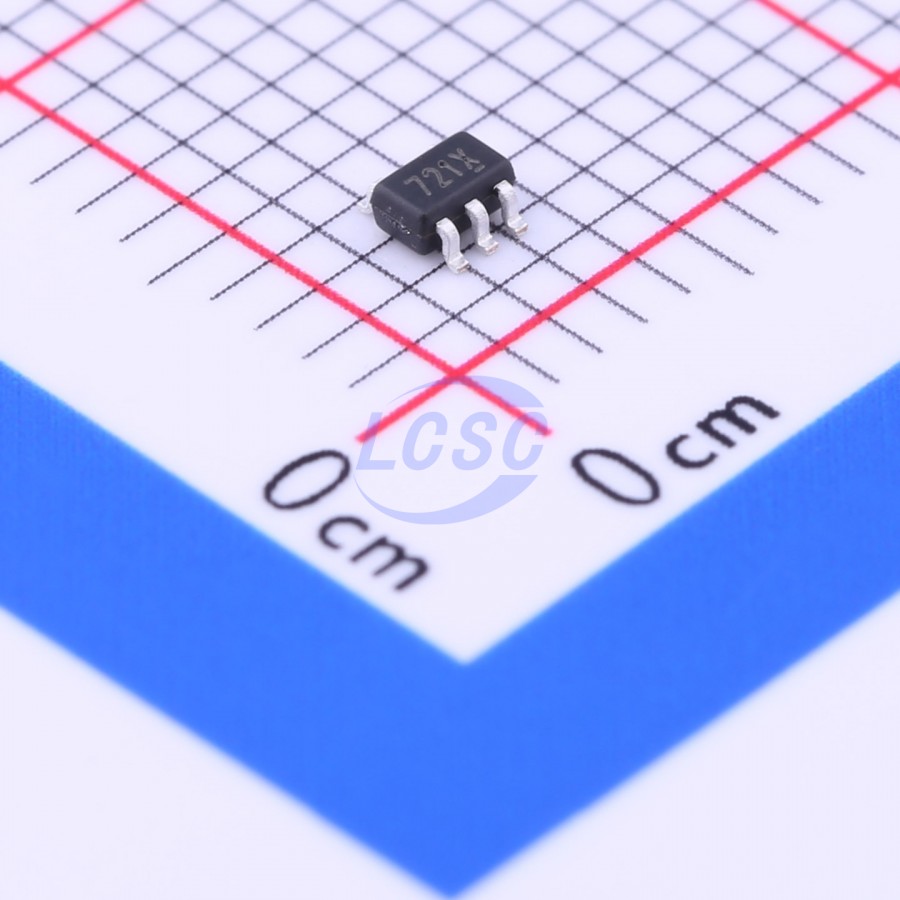

RS721XC5
150mA 1 1mV 7V/us 1pA 80dB 1.15mA 10MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-353 Instrumentation, Op Amps, Buffer Amps
SOT-353RoHSActive
10MHz, Rail-to-Rail I/O, CMos Operational Amplifier
- Manufacturer
- RUNIC
- Manufacturer part #
- RS721XC5
- Store part #
- C255449
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,940 in stock
#C255449
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹60.50 | ₹302.50 |
| 50+ | ₹45.10 | ₹2,255.00 |
| 150+ | ₹38.61 | ₹5,791.50 |
| 500+ | ₹30.36 | ₹15,180.00 |
5 × ₹60.50
₹302.50
excl. GST
₹356.95 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS721XC5
₹302.50 for 5 + GST
Specifications
- Output Current
- 150mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 1mV
- Slew Rate
- 7V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Input Offset Voltage Drift(Vos TC)
- 2.6uV/℃
- Quiescent Current
- 1.15mA
- Gain Bandwidth Product
- 10MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 9.5nV/√Hz@1kHz
- Dual Supply
- -2.75V~-1.25V;1.25V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.06 g
Overview
The RS721 offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (10MHz) and slew rate of 7V/us. The op-amps are unity gain stable and feature an ultra-low input bias current. The devices are ideal for sensor interfaces, active filters and portable applications. The RS721 is specified at the full temperature range of -40°C to +125°C under single supplies of 2.5V to 5.5V or dual power supplies of ±1.25V to ±2.75V.
Applications
- SENSORS
- PHOTODIODE AMPLIFICATION
- ACTIVE FILTERS
- TEST EQUIPMENT
- DRIVING A/D CONVERTERS
Key features
- HIGH GAIN BANDWIDTH: 10MHz
- RAIL-TO-RAIL INPUT AND OUTPUT
- 1mV Typical Vos
- INPUT VOLTAGE RANGE: -0.1V to +5.68V with Vs = 5.5V
- SUPPLY RANGE: +2.5V to +5.5V
- SPECIFIED UP TO ±125°C
- MicroSIZE PACKAGES: SOT353(SC70-5)
