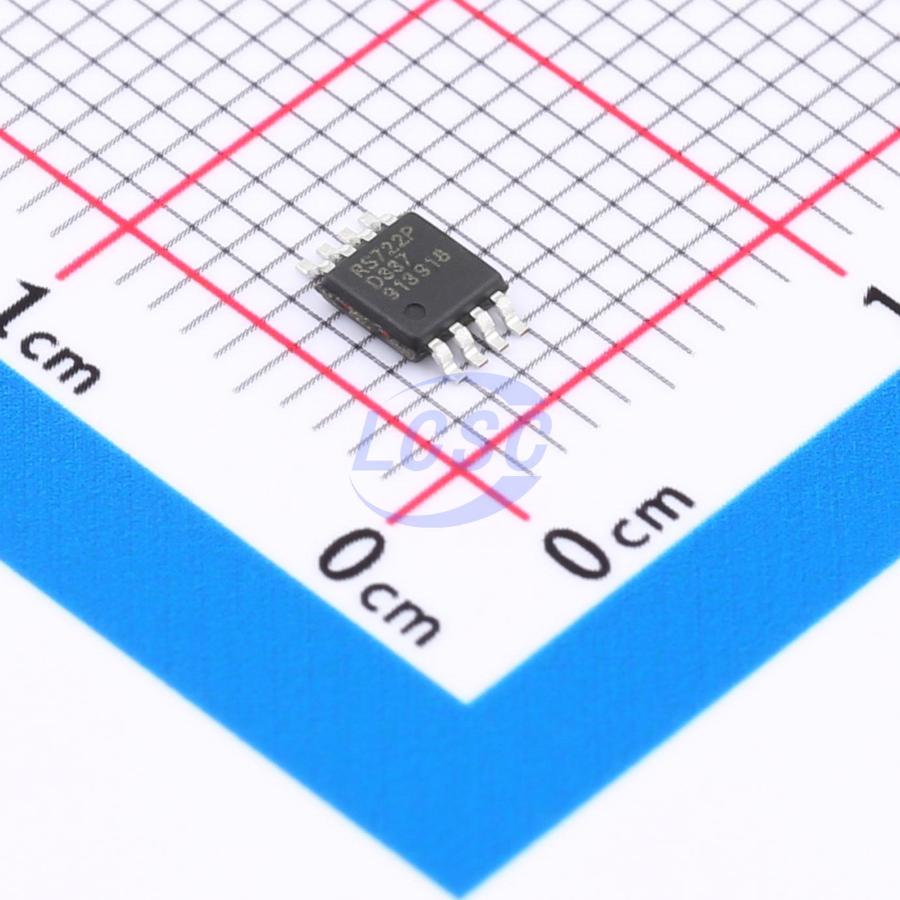

RUNICDatasheet (PDF)
RS722PXM-Q1
150mA 2 500uV 8V/us 1pA 90dB 1.85mA 13MHz Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps
MSOP-8RoHSActive
Rail-to-Rail I/O CMOS Operational Amplifier
- Manufacturer
- RUNIC
- Manufacturer part #
- RS722PXM-Q1
- Store part #
- C19269218
- Package / case
- MSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,695 in stock
#C19269218
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹96.92 | ₹96.92 |
| 10+ | ₹74.59 | ₹745.90 |
| 30+ | ₹63.32 | ₹1,899.60 |
| 100+ | ₹52.05 | ₹5,205.00 |
1 × ₹96.92
₹96.92
excl. GST
₹114.37 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RS722PXM-Q1
₹96.92 for 1 + GST
Specifications
- Output Current
- 150mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 500uV
- Slew Rate
- 8V/us
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Input Offset Voltage Drift(Vos TC)
- 1uV/℃
- Quiescent Current
- 1.85mA
- Gain Bandwidth Product
- 13MHz
- Features
- Built-in compensation
- Dual Supply
- -2.75V~-1.35V;1.35V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.074 g
Overview
The RS72XP - Q1 families of products offer low voltage operation and rail - to - rail input and output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (13MHz) and slew rate of 8V/us. The op - amps are unity gain stable and feature an ultra - low input bias current. The devices are ideal for sensor interfaces, active filters and portable applications. The RS72XP - Q1 families of operational amplifiers are specified at the full temperature range of - 40°C to + 125°C under single or dual power supplies of 2.7V to 5.5V.
Applications
- SENSORS
- PHOTODIODE AMPLIFICATION
- ACTIVE FILTERS
- TEST EQUIPMENT
- DRIVING A/D CONVERTERS
Key features
- Qualified for Automotive Applications
- AEC - Q100 Qualified with the Grade 1
- HIGH GAIN BANDWIDTH: 13MHz
- RAIL - TO - RAIL INPUT AND OUTPUT
- ±0.5mV Typical Vos INPUT VOLTAGE RANGE: - 0.1V to + 5.68 with Vs = 5.5V
- SUPPLY RANGE: + 2.78 to + 5.5V
- SPECIFIED UP TO ±125°C
- Micro SIZE PACKAGES: SOT23 - 5, SOIC - 8
