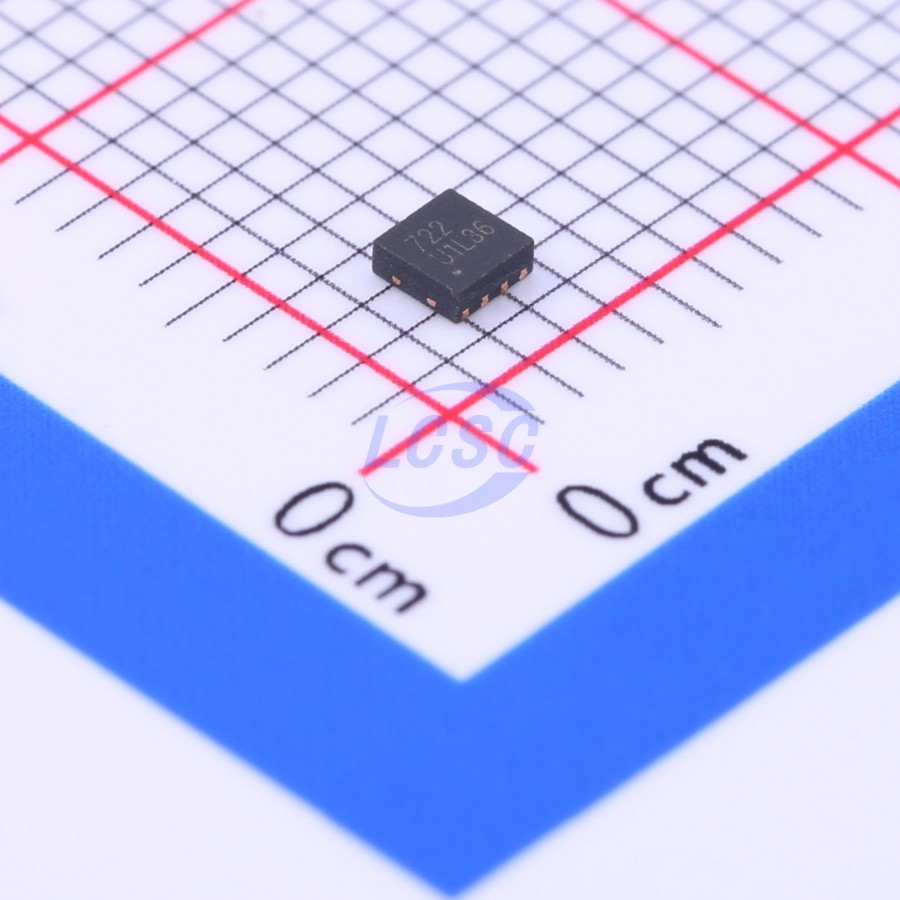

RS722XTDE8

70mA 1 2.5mV 7V/us 10pA 85dB 1.15mA 10MHz Rail-to-Rail Input, Rail-to-Rail Output DFN-8(2x2) Instrumentation, Op Amps, Buffer Amps

DFN-8(2x2)RoHSActive

10MHz, Rail-to-Rail I/O, CMos Operational Amplifier

Manufacturer: RUNIC
Manufacturer part #: RS722XTDE8
Store part #: C255448
Package / case: DFN-8(2x2)
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,336 in stock

#C255448

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹78.08	₹78.08
10+	₹58.29	₹582.90
30+	₹49.81	₹1,494.30
100+	₹39.16	₹3,916.00

Quantity (min 1)

1 × ₹78.08

₹78.08

excl. GST

₹92.13 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

RS722XTDE8

₹78.08 for 1 + GST

Specifications

Output Current: 70mA
Number of Channels: 1
Vos - Input Offset Voltage: 2.5mV
Slew Rate: 7V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 10pA
Common Mode Rejection Ratio(CMRR): 85dB
Input Offset Voltage Drift(Vos TC): 2.6uV/℃
Quiescent Current: 1.15mA
Gain Bandwidth Product: 10MHz
Input Voltage Noise Density: 9.5nV/√Hz@1kHz
Dual Supply: -2.75V~-1.25V;1.25V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.5V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.06 g

Overview

The RS72X series offers low-voltage operation, rail-to-rail input and output, and an excellent speed-to-power ratio, featuring outstanding bandwidth (10MHz) and a slew rate of 7V/μs. The op-amp provides unity-gain stability and ultra-low input bias current. This device is an ideal choice for sensor interfaces, active filters, and portable applications. The RS72X series op-amps are fully specified over the complete temperature range of -40°C to +125°C, operating from 2.5V to 5.5V single-supply or dual-supply.
